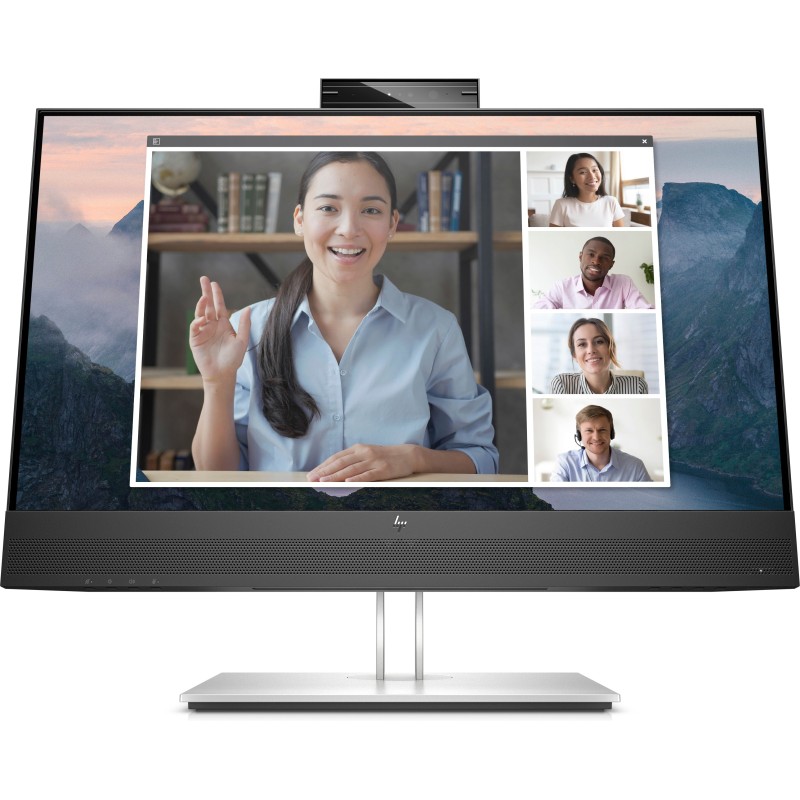

169L0AT - W128821854

Data sheet

Product color

Black, Silver

Package type

Box

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Headphone connectivity

3.5 mm

Cable lock slot

Yes

Weight

14.3 lbs (6.5 kg)

Power supply type

Internal

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

Width

21.2" (539.4 mm)

Height

14" (355.6 mm)

Country of origin

China

Depth

1.85" (47 mm)

Package weight

22.9 lbs (10.4 kg)

Touchscreen

No

Height adjustment

Yes

Package width

23.5" (596 mm)

Package depth

16.2" (411 mm)

Package height

8.86" (225 mm)

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

20 - 80%

Panel type

IPS

Built-in speaker(s)

Yes

Built-in microphone

Yes

Cables included

HP GTIN (EAN/UPC)

195122021771

HP segment

Business

Market positioning

Business

Power consumption (standby)

0.5 W

Power consumption (typical)

28 W

Power consumption (max)

50 W

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 23°

Native aspect ratio

16:9

Response time

5 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Display brightness (typical)

250 cd/m²

Anti-glare screen

Yes

Supported graphics resolutions

640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 800, 1440 x 900 (WXGA+), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Contrast ratio (dynamic)

5000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.274 x 0.274 mm)

Pixel density

93 ppi

Horizontal scan range

30 - 80 kHz

Vertical scan range

50 - 60 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Display diagonal (metric)

23.8" (60.5 cm)

Haze rate

25%

Surface hardness

3H

Color depth

8 bit

Colour gamut standard

NTSC

Color gamut

72%

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

Yes

Number of speakers

2

RMS rated power

2 W

Detachable stand

Yes

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

E

Width (with stand)

21.2" (539.4 mm)

Depth (with stand)

8.5" (216 mm)

Height (with stand)

20.9" (530.7 mm)

Weight (with stand)

14.3 lbs (6.5 kg)

Width (without stand)

21.2" (539.4 mm)

Depth (without stand)

1.85" (47 mm)

Height (without stand)

14" (355.6 mm)

Stand included

Yes

European Product Registry for Energy Labelling (EPREL) code

526815

Panel mounting interface

100 x 100 mm

Angle of rotation

-90 - 90°

USB Type-A downstream ports quantity

4

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

0 - 480000" (0 - 12192 m)

Audio output

Yes

Specific References

UPC

195122021771

EAN13

0195122021771

MPN

169L0AT
