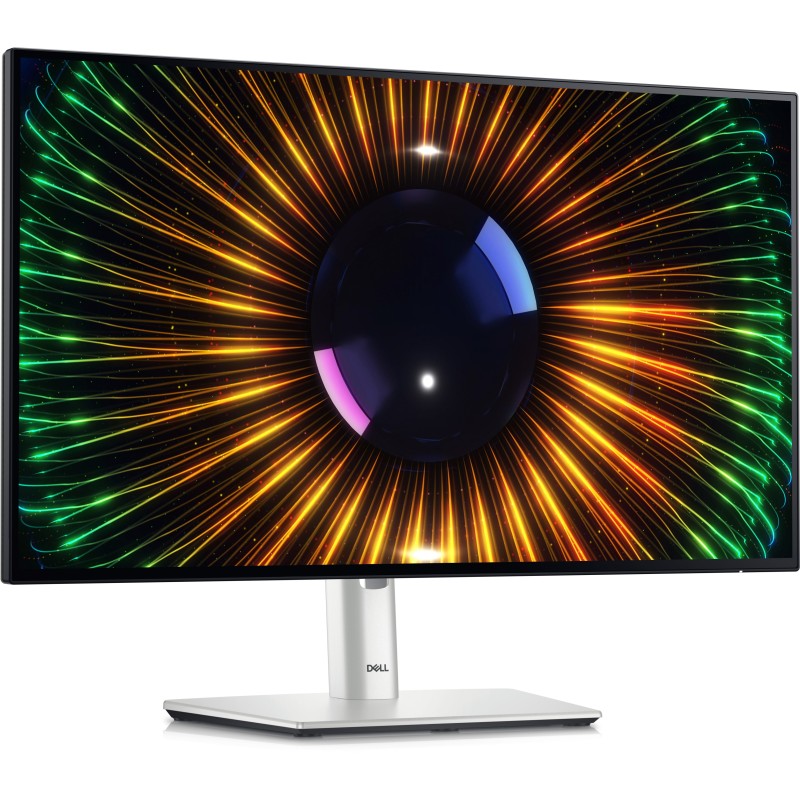

U2424H

Data sheet

Product color

Black, Silver

HDMI ports quantity

1

DisplayPorts quantity

2

Cable lock slot

Yes

Power supply type

Internal

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package weight

17.5 lbs (7.92 kg)

Touchscreen

No

Height adjustment

Yes

HDMI version

1.4

DisplayPort version

1.4

VESA mounting

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Panel type

IPS

Built-in speaker(s)

No

Cables included

AC, DisplayPort, USB Type-A to USB Type-C

Input current

1.5 A

Quick start guide

Yes

Market positioning

Business

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Sustainability certificates

ENERGY STAR, TCO

Sustainability compliance

Yes

Power consumption (typical)

13.7 W

Compliance certificates

RoHS

HDCP

Yes

Power consumption (max)

72 W

Cable lock slot type

Kensington

Backlight type

Edge LED

Maximum refresh rate

120 Hz

Tilt angle range

-5 - 21°

Native aspect ratio

16:9

Display technology

LCD

Response time

8 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Display brightness (typical)

250 cd/m²

Anti-glare screen

Yes

Supported graphics resolutions

640 x 480 (VGA), 720 x 400, 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080)

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.275 x 0.275 mm)

Pixel density

92.53 ppi

Horizontal scan range

31 - 135 kHz

Vertical scan range

48 - 120 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Display diagonal (metric)

23.8" (60.5 cm)

Surface hardness

3H

Colour gamut standard

DCI-P3

Color gamut

85%

sRGB coverage (typical)

100%

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Feet color

Silver

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

24 kWh

Energy efficiency scale

A to G

Width (with stand)

21.2" (538.6 mm)

Depth (with stand)

1.93" (49.1 mm)

Height (with stand)

12.3" (311.2 mm)

Weight (with stand)

11.2 lbs (5.09 kg)

Width (without stand)

21.2" (538.6 mm)

Depth (without stand)

7.16" (181.8 mm)

Height (without stand)

19.5" (496.5 mm)

Stand included

Yes

European Product Registry for Energy Labelling (EPREL) code

1591641

Supported video modes

480p, 576p, 720p, 1080i, 1080p

Panel mounting interface

100 x 100 mm

Viewable size diagonal

23.8" (60.5 cm)

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

USB Type-A downstream ports quantity

3

AC (power) in

Yes

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

196850.4 - 480000" (5000 - 12192 m)

Weight (without stand)

7.76 lbs (3.52 kg)

USB Type-C downstream ports quantity

1

HDCP version

1.4

Doesn't contain

PVC/BFR

Bezel width (bottom)

0.352" (8.95 mm)

Bezel width (side)

0.228" (5.8 mm)

Bezel width (top)

0.228" (5.8 mm)

Front bezel color

Black

Response time (fast)

5 ms

Number of USB Type-C upstream ports quantity

1

Heavy metals free

Hg (mercury)

DisplayPort cable length

70.9" (1.8 m)

Automatic brightness control

Yes

Pivot angle

-90 - 90°

Specific References

EAN13

5715063784037

MPN

U2424H
