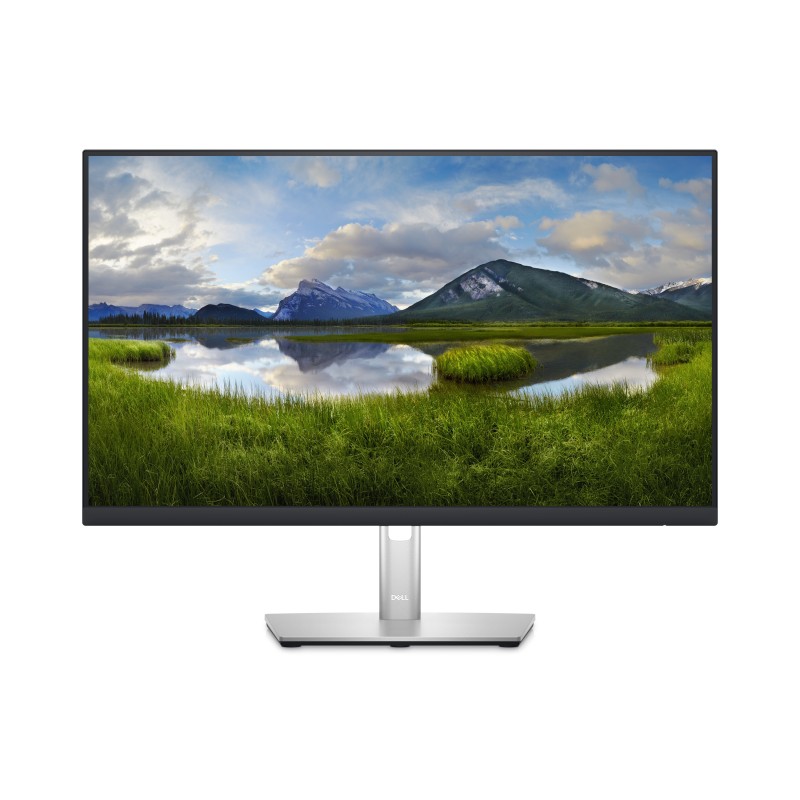

P2423D - 0P2423D

Data sheet

Product color

Black

HDMI ports quantity

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

0

Cable lock slot

Yes

Harmonized System (HS) code

85285210

Power supply type

Internal

Display diagonal

23.8"

Display resolution

2560 x 1440 pixels

HD type

Quad HD

Wi-Fi

No

Plug and Play

Yes

AC input voltage

100 - 240 V

Package weight

16.4 lbs (7.44 kg)

Touchscreen

No

Height adjustment

Yes

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Panel type

IPS

Built-in speaker(s)

No

Cables included

AC, DisplayPort, USB

Input current

1.5 A

Market positioning

Business

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Sustainability certificates

ENERGY STAR, TCO

Power consumption (typical)

16 W

Compliance certificates

RoHS

HDCP

Yes

Power consumption (max)

55 W

Backlight type

LED

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 21°

Native aspect ratio

16:9

Display technology

LCD

Response time

5 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Display brightness (typical)

300 cd/m²

Anti-glare screen

Yes

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00810 x 0.00810" (0.206 x 0.206 mm)

Pixel density

123 ppi

Horizontal scan range

29 - 113 kHz

Vertical scan range

49 - 75 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Colour gamut standard

sRGB

Color gamut

99%

NVIDIA G-SYNC

No

AMD FreeSync

No

Low Blue Light technology

Yes

Built-in camera

No

Detachable stand

Yes

Feet color

Silver

Built-in USB hub

Yes

HDMI

Yes

Headphone out

No

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

16 kWh

Energy efficiency scale

A to G

Width (with stand)

21.2" (537.8 mm)

Depth (with stand)

7.07" (179.6 mm)

Height (with stand)

19.5" (496.1 mm)

Weight (with stand)

11.2 lbs (5.07 kg)

Width (without stand)

21.2" (537.8 mm)

Depth (without stand)

2.05" (52.1 mm)

Height (without stand)

12.5" (318.5 mm)

Stand included

Yes

European Product Registry for Energy Labelling (EPREL) code

1057427

Supported video modes

480p, 576p, 720p, 1080i, 1080p, 1440p

Panel mounting interface

100 x 100 mm

Viewable size diagonal

23.8" (60.5 cm)

USB upstream port type

USB Type-B

USB Type-A downstream ports quantity

4

AC (power) in

Yes

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

196850.4 - 480000" (5000 - 12192 m)

Weight (without stand)

7.58 lbs (3.44 kg)

High Dynamic Range (HDR) supported

No

USB Type-C downstream ports quantity

0

Bezel width (bottom)

0.657" (1.67 cm)

Bezel width (side)

0.216" (5.48 mm)

Bezel width (top)

0.213" (5.42 mm)

Front bezel color

Black

Response time (fast)

8 ms

Number of USB Type-B upstream ports quantity

1

Heavy metals free

Hg (mercury)

Pivot angle

90 - 90°

Specific References

EAN13

5704174850250

MPN

P2423D
