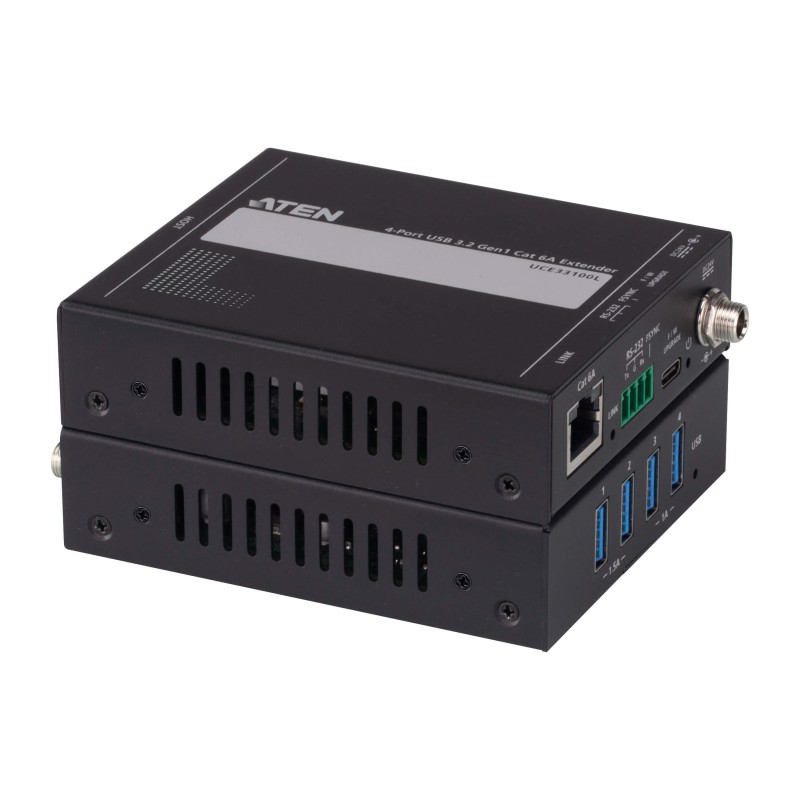

UCE33100-AT-B

As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.

5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)

4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.

PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.

Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.

Applications
The additional length afforded by the extender (up to 100 m) means it can be a worthwhile versatile addition to the various spacious applications below:
- Conference/Education
- Industrial Control/Healthcare


ATEN UCE33100. Type: Network transmitter & receiver, Maximum transfer distance: 3937" (100 m), Cable types supported: Cat6a. Product color: Black, Housing material: Metal. Power consumption (typical): 2.64 W. Width: 3.35" (85 mm), Depth: 4.23" (107.5 mm), Height: 1" (25.5 mm)

Type	Network transmitter & receiver
Maximum transfer distance	3937" (100 m)
Cable types supported	Cat6a
Ethernet LAN (RJ-45) ports	2
RJ-45 ports quantity (transmitter)	1
USB Type-C ports quantity (transmitter)	1
USB Type-C ports quantity (receiver)	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DC-in jack	Yes
Product color	Black
Housing material	Metal
LED indicators	Yes
Power consumption (typical)	2.64 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Width	3.35" (85 mm)
Depth	4.23" (107.5 mm)
Height	1" (25.5 mm)
Weight	9.17 oz (260 g)
