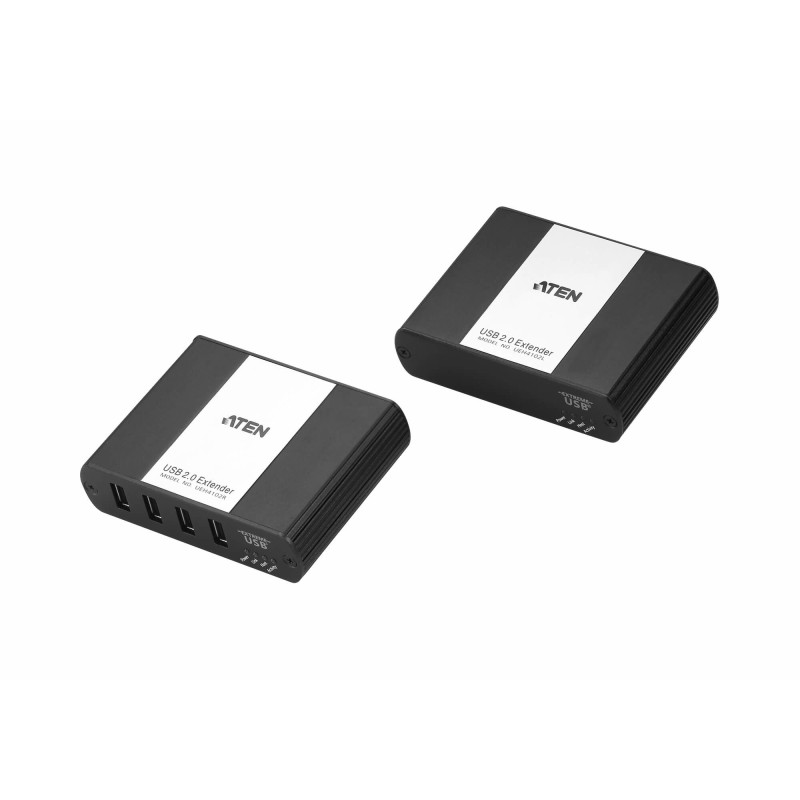

UEH4102-AT-G

Data sheet

Type

Network transmitter & receiver

Product color

Black

Windows operating systems supported

Yes

USB 2.0 ports quantity

5

Ethernet LAN data rates

10,100,1000 Mbit/s

Weight

19 oz (540 g)

Harmonized System (HS) code

85176990

Output voltage

5 V

Width

2.99" (76 mm)

Height

1.02" (26 mm)

Depth

3.94" (100 mm)

Package weight

26.6 oz (754 g)

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

9.3 lbs (4.22 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

Linux operating systems supported

Yes

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Cables included

USB

Manual

Yes

Housing material

Metal

Maximum transfer distance

3937" (100 m)

Mac compatibility

Yes

Master (outer) case net weight

5.95 lbs (2.7 kg)

Data transfer rate

480 Mbit/s

Cable types supported

Cat5, Cat6, Cat7

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

External power adapter

Yes

Power consumption (receiver) (max)

15 W

Specific References

EAN13

4719264646454

MPN

UEH4102-AT-G
