CHF520.3
tax incl.
CHF481.3
tax excl.
In stock
CHF144.6
tax incl.
CHF133.8
tax excl.
In stock
Description

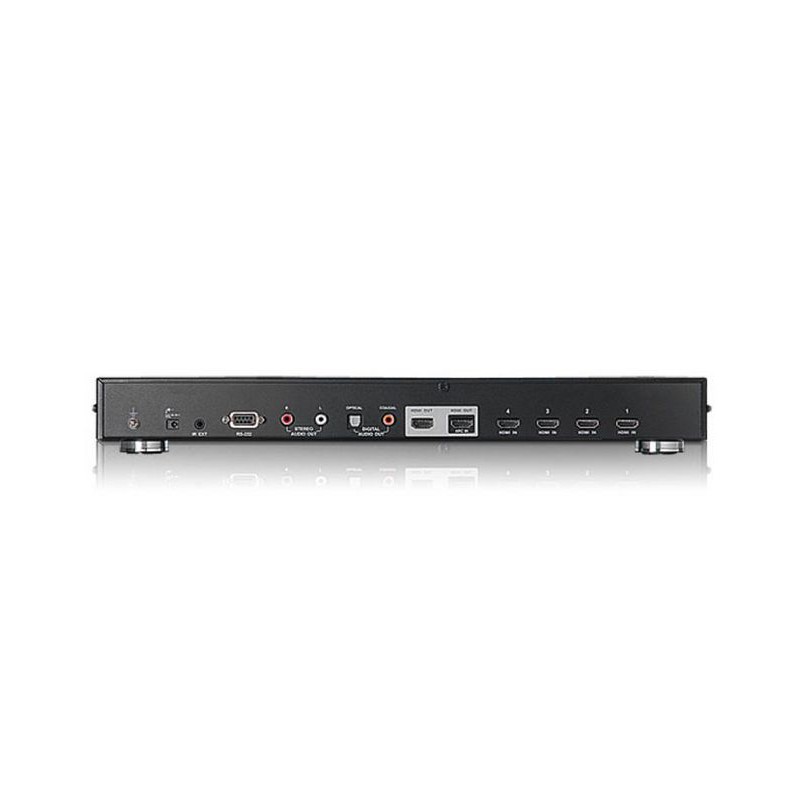

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
- Allows up to four HDMI A/V sources to be connected to two HDMI displays
- HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration setting and information display
- Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
- Feature EDID Expert technology to set up different configurations via different EDID mode
- Allows users to view the HDMI input source port / device for easy selection
- Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
- Built-in bi-directional RS-232 serial control port for high-end system control
- Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
- IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
- Rack mountable
Specifications
Features
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Dolby technologies | Dolby TrueHD/DTS-HD Master Audio |
| Extended display identification data (EDID) | Yes |
| HD type | Full HD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Input impedance | 100 Ω |
| Material | Metal |
| Maximum operating distance | 15 m |
| Maximum resolution | 1920 x 1200 pixels |
| Output impedance | 100 Ω |
| Product colour | Black |
| Rack mounting | Yes |
| Supported video modes | 1080i/1080p/480p/720p |
Logistics data
| Master (outer) case gross weight | 9600 g |
| Master (outer) case height | 25.8 cm |
| Master (outer) case length | 56.5 cm |
| Master (outer) case net weight | 7110 g |
| Master (outer) case width | 37.5 cm |
| Products per master (outer) case | 3 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| AC adapter included | Yes |
| Mounting kit | Yes |
| Number of products included | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Remote control included | Yes |
| User guide | Yes |
Ports & interfaces
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Digital audio coaxial out | 1 |
| HDMI in | 4 |
| HDMI ports quantity | 6 |
| Number of HDMI outputs | 2 |
| RS-232 ports | 1 |
| Video port type | HDMI |
Power
| Power consumption (typical) | 5.74 W |
Vendor information
| Brand Name | Aten |
| Homepage | http://www.aten.com |
| Warranty | 2 |
Product Details
9 Items
New
Data sheet
- User guide
- Yes
- 3D
- Yes
- Handheld remote control
- Yes
- HDCP
- Yes
- Extended display identification data (EDID)
- Yes
- Number of HDMI outputs
- 2
- Gestellmontage
- Yes
- Anzahl der HDMI-Anschlüsse
- 6
- Anzahl der enthaltenen Produkte
- 1 Stück(e)
- Montage Kits
- Yes
- Inklusive Netzteil
- Yes
- DC-Eingangsbuchse
- Yes
- Homepage
- http://www.aten.com
- Stromverbrauch (typisch)
- 5.74 W
- Maximum Auflösung
- 1920 x 1200 Pixel
- Unterstützte Videomodi
- 1080i/1080p/480p/720p
- Bandbreite
- 6.75 Gbit/s
- Produkte pro Master (Außen)-Case
- 3 Stück(e)
- Typ des Videoanschlusses
- HDMI
- Dolby-Technologien
- Dolby TrueHD/DTS-HD Master Audio
- HDCP-Version
- 1.4
- HD-Typ
- Full HD
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 50 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 80 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- Black
- Material
- Metal
- Maximum Reichweite
- 15 m
- Audio (L/R)-Ausgang
- 1
- Unterstützung für Consumer Electronics Control (CEC)
- Yes
- HDMI-Eingang
- 4
- Digitaler Audio-Koaxialausgang
- 1
- RS-232-Anschlüsse
- 1
- Eingangsimpedanz
- 100 Ohm
- Master (äußere) Gehäusebreite
- 37.5 cm
- Master (äußere) Gehäusehöhe
- 25.8 cm
- Master (äußere) Gehäuselänge
- 56.5 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 9600 g
- Ausgangsimpedanz
- 100 Ohm
- Nettogewicht des (äußeren) Hauptkoffers
- 7110 g
Specific References
- UPC
- 573504624282
- EAN13
- 4710423777750
- MPN
- VS482-AT-G
