Description

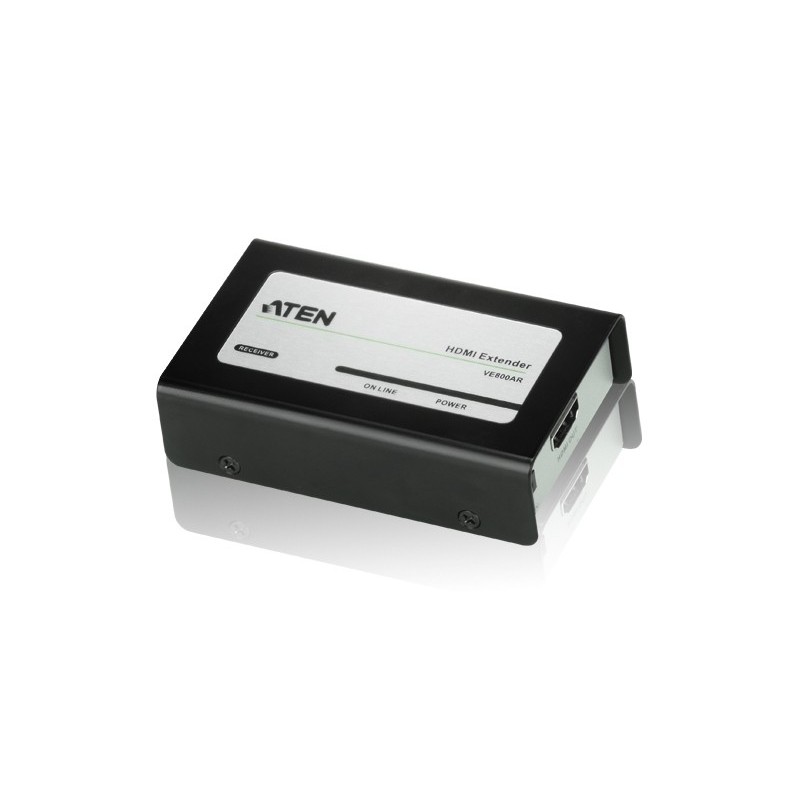

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
1x VE800AR HDMI Receiver
1x 0AD6-1705-10EG Power Adapter
1x Mounting Kit
1x User Instructions
ATEN VE800AR. Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, Video out: HDMI Type A F. Operating voltage: 5 V, Power consumption (typical): 0.75 W. Weight: 11.1 oz (315 g), Receiver dimensions (WxDxH): 21.7 x 3.54 x 0.906" (550 x 90 x 23 mm), Receiver weight: 5.64 oz (160 g). Package width: 2.32" (59 mm), Package depth: 4.69" (119 mm), Package height: 6.3" (160 mm)
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
1x VE800AR HDMI Receiver
1x 0AD6-1705-10EG Power Adapter
1x Mounting Kit
1x User Instructions
ATEN VE800AR. Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, Video out: HDMI Type A F. Operating voltage: 5 V, Power consumption (typical): 0.75 W. Weight: 11.1 oz (315 g), Receiver dimensions (WxDxH): 21.7 x 3.54 x 0.906" (550 x 90 x 23 mm), Receiver weight: 5.64 oz (160 g). Package width: 2.32" (59 mm), Package depth: 4.69" (119 mm), Package height: 6.3" (160 mm)
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 2362.2" (60 m) |
| LED indicators | Yes |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product color | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Number of HDMI outputs | 1 |
| Video out | HDMI Type A F |
| DC-in jack | Yes |
| Operating voltage | 5 V |
| Power consumption (typical) | 0.75 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 11.1 oz (315 g) |
| Receiver dimensions (WxDxH) | 21.7 x 3.54 x 0.906" (550 x 90 x 23 mm) |
| Receiver weight | 5.64 oz (160 g) |
| Package width | 2.32" (59 mm) |
| Package depth | 4.69" (119 mm) |
| Package height | 6.3" (160 mm) |
| Package weight | 11.4 oz (322 g) |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Master (outer) case width | 12.4" (315 mm) |
| Master (outer) case length | 19.3" (490 mm) |
| Master (outer) case height | 7.01" (178 mm) |
| Master (outer) case weight | 15.2 lbs (6.91 kg) |
| Master (outer) case net weight | 13.9 lbs (6.3 kg) |
| Quantity per master (outer) case | 20 pc(s) |
Product Details
6 Items
New
Data sheet
- Type
- AV receiver
- Product color
- Black
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- Weight
- 11.1 oz (315 g)
- Operating voltage
- 5 V
- Maximum resolution
- 1920 x 1200 pixels
- Package weight
- 11.4 oz (322 g)
- Material
- Metal
- Master (outer) case width
- 12.4" (315 mm)
- Master (outer) case length
- 19.3" (490 mm)
- Master (outer) case height
- 7.01" (178 mm)
- Master (outer) case weight
- 15.2 lbs (6.91 kg)
- Quantity per master (outer) case
- 20 pc(s)
- Package width
- 2.32" (59 mm)
- Package depth
- 4.69" (119 mm)
- Package height
- 6.3" (160 mm)
- LED indicators
- Yes
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Impedance
- 100 Ω
- Manual
- Yes
- Receiver dimensions (WxDxH)
- 21.7 x 3.54 x 0.906" (550 x 90 x 23 mm)
- Receiver weight
- 5.64 oz (160 g)
- Power consumption (typical)
- 0.75 W
- Mounting kit
- Yes
- HDCP
- Yes
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- Supported video modes
- 1080i, 1080p
- Maximum transfer distance
- 2362.2" (60 m)
- Master (outer) case net weight
- 13.9 lbs (6.3 kg)
- Cable types supported
- Cat5e
- Bandwidth
- 6.75 Gbit/s
- Number of HDMI outputs
- 1
- Video out
- HDMI Type A F
Specific References
- EAN13
- 4719264642272
- MPN
- VE800AR-AT-G
