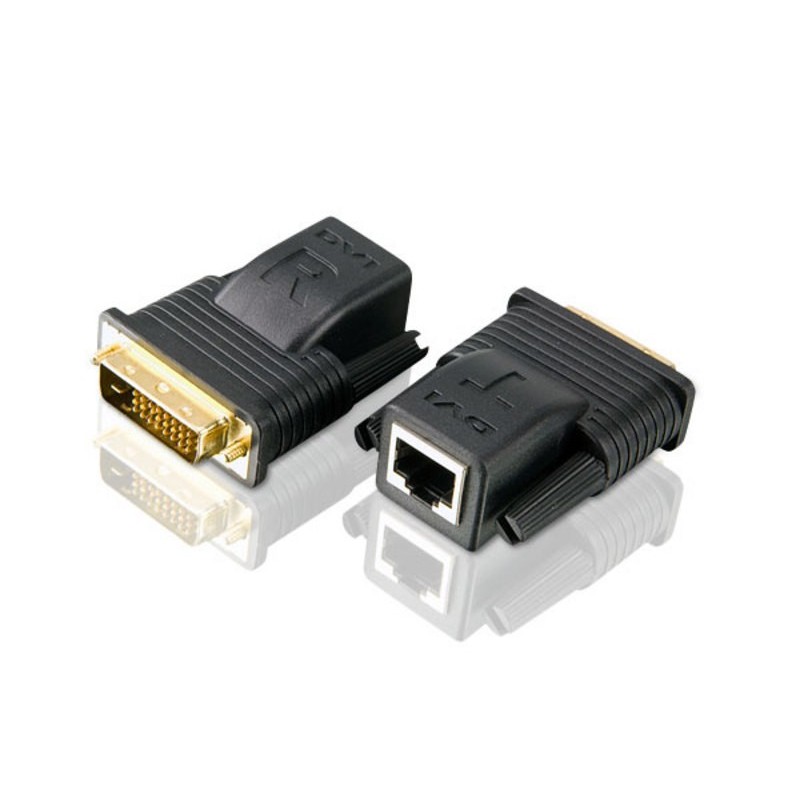

VE066-AT

The AT-VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e of Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the AT-VE066 Transmitter connected to the source or the AT-VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the AT-VE066 Mini Cat 5 DVI Extender is a compact, convenient, and economical way to extend your DVI display. Features:
• Extends the distance between DVI source and DVI display
• Uses Cat 5e cable to connect the Transmitter and Receiver units
• Long distance transmission - up to 15 m for 1080p; up to 15 m for 1600 x 1200; up to 20 m for 1080i (HDTV)
• HDCP 1.1 Compliant
• Supports hot-plugging
• Superior video quality - HDTV resolutions of 720p, 1080i, and 1080p (1600 x 1200); SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
• Compact housing
• Compatible with all ATEN DVI switches and DVI splitters
• Supports LCD Screen, Plasma TV and projectors
• Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
• Smart Video Display - Image quality is optimized based on the available resolution of the output device

ATEN VE066-AT. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, Video in: 1 x DVI-D, Video out: 1 x DVI-D. Weight: 3.39 oz (96 g), Receiver dimensions (WxDxH): 2.23 x 1.6 x 0.846" (56.6 x 40.7 x 21.5 mm), Receiver weight: 1.76 oz (50 g). Quantity per pack: 2 pc(s), Package width: 1.5" (38 mm), Package depth: 4.21" (107 mm). Master (outer) case width: 8.86" (225 mm), Master (outer) case length: 16.1" (410 mm), Master (outer) case height: 9.45" (240 mm)

Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e
Maximum transfer distance	787.4" (20 m)
Bandwidth	4.95 Gbit/s
Bandwidth	165 MHz
HDCP	Yes
Material	Plastic
Impedance	100 Ω
Product color	Black
Connectivity technology	Wired
DVI input ports	1
DVI output ports	1
Video in	1 x DVI-D
Video out	1 x DVI-D
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight	3.39 oz (96 g)
Receiver dimensions (WxDxH)	2.23 x 1.6 x 0.846" (56.6 x 40.7 x 21.5 mm)
Receiver weight	1.76 oz (50 g)
Transmitter dimensions (WxDxH)	2.23 x 1.6 x 0.846" (56.6 x 40.7 x 21.5 mm)
Transmitter weight	1.76 oz (50 g)
Quantity per pack	2 pc(s)
Package width	1.5" (38 mm)
Package depth	4.21" (107 mm)
Package height	7.72" (196 mm)
Package weight	5.57 oz (158 g)
Quick start guide	Yes
Compliance certificates	RoHS
Master (outer) case width	8.86" (225 mm)
Master (outer) case length	16.1" (410 mm)
Master (outer) case height	9.45" (240 mm)
Master (outer) case weight	8.66 lbs (3.93 kg)
Master (outer) case net weight	4.23 lbs (1.92 kg)
Quantity per master (outer) case	20 pc(s)
