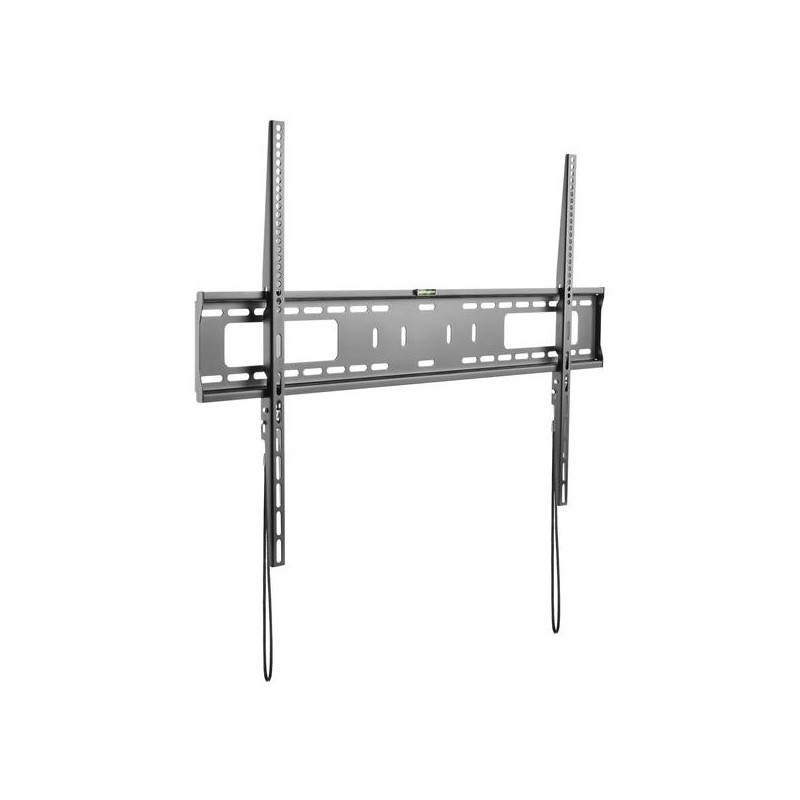

FPWFXB1

Flat Screen Mount | Weight Cap. 165 lb. (75 kg) | 60” to 100” TV | Cold-Rolled Steel | VESA Compatible

This heavy-duty TV wall mount is ideal for commercial and business purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large professional display needs to be mounted.

Engineered for Heavy Duty Commercial Grade TVs

This TV wall mount is designed to be used with commercial or heavy-duty televisions and displays. It supports a weight of up to 165 lbs. or 75 kilograms and has been thoroughly tested to triple the rated weight capacity to ensure premium product quality and reliable performance.

The mount is ideal for 60” to 100” TVs including curved TVs; however, most larger or smaller TVs can be accommodated if they fall within the listed weight capacity.

Straightforward Installation & Removal

This TV mount is VESA compatible and has two rows of seventeen mounting holes across the wall bracket to accommodate a variety of spacing between studs and helping you to center your display. The included bubble level helps to ensure an accurate mount to the wall.

Once the wall bracket is attached to the wall and the vertical brackets are attached to the TV, the TV simply attaches to the mount using the spring locks and can be as easily removed using the release pull straps.

Comprehensive Product Testing & Expert Technical Support 

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

FPWFXB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Securely mount large commercial TVs and digital signage to boardrooms, lobbies and anywhere large displays are required
- Designed to support slim TVs up to 165 lbs. (75kg), ideal for 60” to 100” TVs
- Mount TV or display using the spring locks and simply remove using the release straps

StarTech.com FPWFXB1. Maximum weight capacity: 165.3 lbs (75 kg), Minimum screen size: 60", Maximum screen size: 100", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 35.4 x 23.6" (900 x 600 mm). Distance to the wall (max): 1.2" (3.05 cm). Product color: Black

Number of displays supported	1
Maximum screen size	100"
Mounting type	Wall
Maximum weight capacity	165.3 lbs (75 kg)
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	35.4 x 23.6" (900 x 600 mm)
Minimum screen size	60"
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600
Cable management	No
Built-in spirit level	Yes
Distance to the wall (max)	1.2" (3.05 cm)
Product color	Black
Housing material	Plastic, Steel
Anti-theft function	No
Compliance certificates	RoHS
Adapter bracket included	Yes
Number of adapter brackets included	2
Anchors included	Yes
Number of anchors included	6
Washers included	Yes
Number of washers included	10
Spacer included	Yes
Number of spacers included	16
Screws included	Yes
Number of screws	26
Manual	Yes
Width	24.6" (625 mm)
Depth (max)	37.6" (95.4 cm)
Height	1.2" (30.5 mm)
Weight	7.72 lbs (3.5 kg)
Package width	6.14" (156 mm)
Package depth	38.6" (980 mm)
Package height	15" (380 mm)
Package weight	7.94 lbs (3.6 kg)
Master (outer) case width	6.97" (177 mm)
Master (outer) case length	39.2" (995 mm)
Master (outer) case height	8.27" (210 mm)
Quantity per master (outer) case	5 pc(s)
Harmonized System (HS) code	85299097
