USBC-PWRTESTER
  • USBC-PWRTESTER

USBC-PWRTESTER - W129125973

W129125973
StarTech.com

StarTech.com USBC-PWRTESTER, Amperage, Voltage, Wattage, 4.5V-50V, USB Type-C, 6.5 A, 4.5V-50V, 0.05 - 6.5 A

CHF41.1
Tax included
CHF38.0 Tax excluded
Delivery in 4-5 days
Quantity
In stock
33 Items

Description

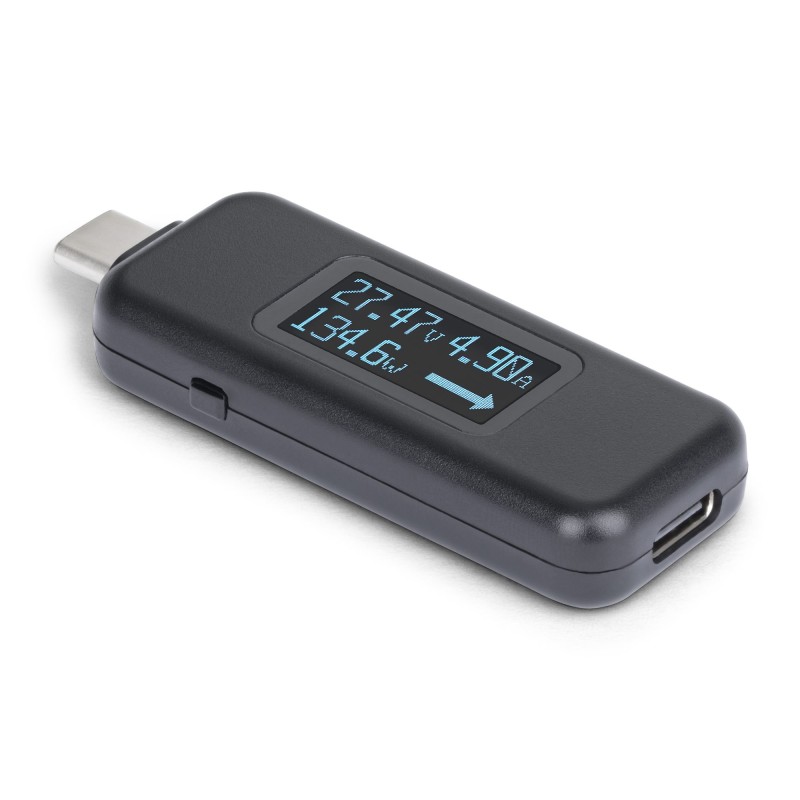

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.

Streamline Power Diagnostics

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.

The StarTech.com Advantage


StarTech.com USBC-PWRTESTER. Testing type: Amperage, Voltage, Wattage, DC output voltage test: 4.5V-50V, Power connectors supported: USB Type-C. Width: 2.24" (57 mm), Depth: 0.906" (23 mm), Height: 0.394" (10 mm). Package width: 3.15" (80 mm), Package depth: 3.31" (84 mm), Package height: 0.591" (15 mm). Master (outer) case width: 16.9" (430 mm), Master (outer) case length: 7.09" (180 mm), Master (outer) case height: 10.6" (270 mm)
Testing typeAmperage, Voltage, Wattage
DC output voltage test4.5V-50V
Power connectors supportedUSB Type-C
Built-in displayYes
Output current6.5 A
DC input voltage test4.5V-50V
Input current0.05 - 6.5 A
Backlight displayYes
Backlight colorBlue
Host interfaceUSB 3.2 USB Type C
Output interfaceUSB 3.2 USB Type C
USB version3.2 Gen 2 (3.1 Gen 2)
Maximum charging test240 W
Product colorBlack
Housing materialPolycarbonate (PC)
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width2.24" (57 mm)
Depth0.906" (23 mm)
Height0.394" (10 mm)
Weight0.423 oz (12 g)
Package width3.15" (80 mm)
Package depth3.31" (84 mm)
Package height0.591" (15 mm)
Package weight0.988 oz (28 g)
Compliance certificatesRoHS
Master (outer) case width16.9" (430 mm)
Master (outer) case length7.09" (180 mm)
Master (outer) case height10.6" (270 mm)
Quantity per master (outer) case150 pc(s)
Product Details
W129125973
33 Items
New

Data sheet

Product color
Black
Host interface
USB 3.2 USB Type C
Weight
0.423 oz (12 g)
Width
2.24" (57 mm)
Height
10 mm
Depth
0.906" (23 mm)
Output current
6.5 A
Package weight
0.988 oz (28 g)
Master (outer) case width
16.9" (430 mm)
Master (outer) case length
7.09" (180 mm)
Master (outer) case height
10.6" (270 mm)
Quantity per master (outer) case
150 pc(s)
Package width
3.15" (80 mm)
Package depth
3.31" (84 mm)
Package height
0.591" (15 mm)
Built-in display
Yes
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
USB version
3.2 Gen 2 (3.1 Gen 2)
Input current
0.05 - 6.5 A
Output interface
USB 3.2 USB Type C
Housing material
Polycarbonate (PC)
Compliance certificates
RoHS
Backlight color
Blue
Backlight display
Yes
Test type
Amperage, Voltage, Wattage
DC output voltage test
4.5V-50V
Power connectors supported
USB Type-C
DC input voltage test
4.5V-50V
Maximum charging test
240 W

Specific References

UPC
065030904469
EAN13
0065030904469
MPN
USBC-PWRTESTER
