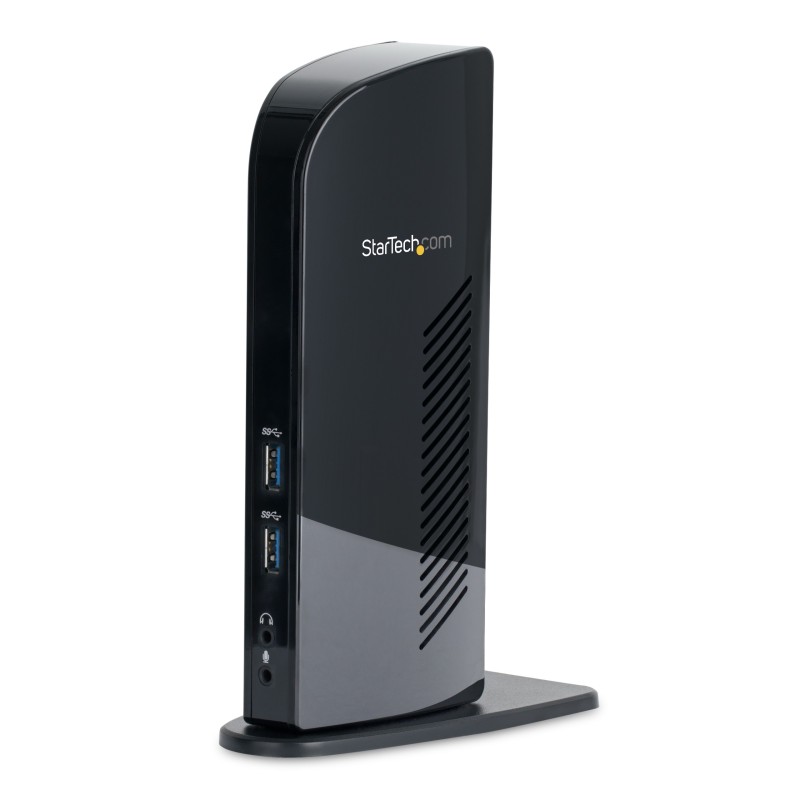

USB3SDOCKHD - USB3SDOCKHD

Data sheet

Brand compatibility

Any brand

Product color

Black

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

1

Combo headphone/mic port

No

Headphone connectivity

3.5 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Card reader integrated

No

Weight

13.1 oz (370 g)

Harmonized System (HS) code

84733020

Output voltage

5 V

Width

2.76" (70 mm)

Height

7.68" (195 mm)

Data transfer rate

5 Gbit/s

AC input voltage

100 - 240 V

Certification

CE, FCC

Depth

125 mm

Output current

4 A

Package weight

31.7 oz (900 g)

Master (outer) case width

11.8" (300 mm)

Master (outer) case length

15.7" (400 mm)

Master (outer) case height

14.2" (360 mm)

Quantity per master (outer) case

6 pc(s)

Package width

7.48" (190 mm)

Package depth

10.7" (273 mm)

Package height

4.29" (109 mm)

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

LED indicators

Power, USB

USB connector type

USB Type-A

DC-in jack

Yes

Maximum digital resolution

1920 x 1200 pixels

Operating temperature (T-T)

10 - 40 °C

Storage temperature (T-T)

-10 - 80 °C

AC adapter included

Yes

Cables included

USB

Auto MDI/MDI-X

Yes

Input current

0.8 A

Other operating systems supported

ChromeOS

Networking standards

Compatible power plug types

AU, EU, JP, UK, US

Manual

Yes

Housing material

Plastic

Power plug type

Type C

Power consumption (typical)

20 W

Compliance certificates

RoHS

DVI-I ports quantity

1

Number of microphone inputs

1

Drivers included

Yes

Mac compatibility

Yes

Full duplex

Yes

Minimum system requirements

CPU: i3 Dual core 2.8GHz +
RAM: 2GB +

Chipset

DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E

Interface adapters included

DVI-I male - VGA female

Specific References

UPC

065030847674

EAN13

0065030847674

MPN

USB3SDOCKHD
