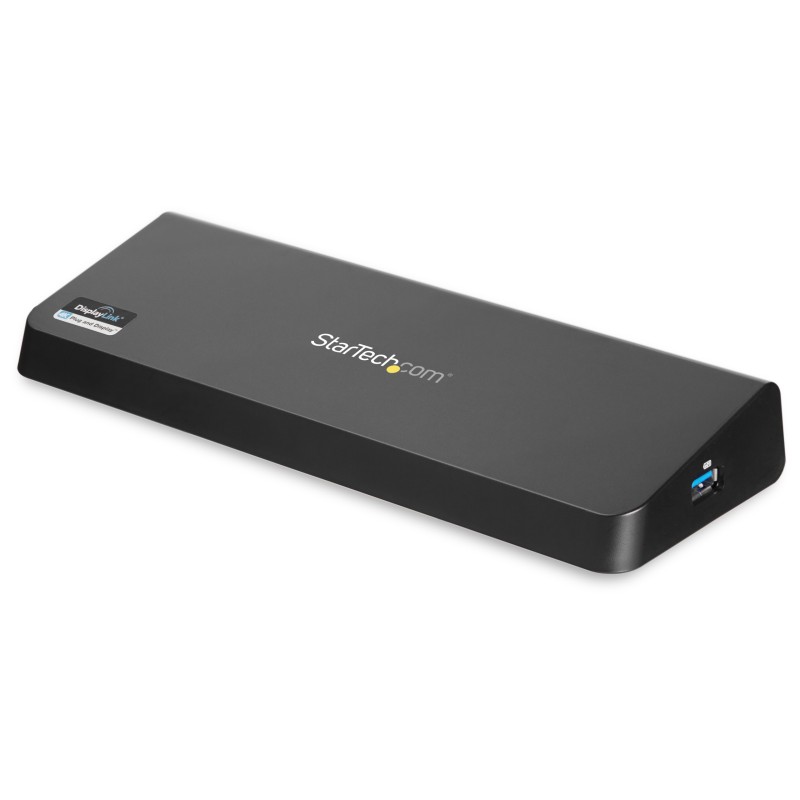

USB3DOCKHDPC - USB3DOCKHDPC
StarTech.com USB3DOCKHDPC, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 3.5 mm, USB Type-A, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Description
Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
StarTech.com USB3DOCKHDPC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product color: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100-240 V, Input current: 1.5 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
StarTech.com USB3DOCKHDPC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product color: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100-240 V, Input current: 1.5 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| Headphone connectivity | 3.5 mm |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Product color | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Charging function | Yes |
| UASP support | Yes |
| Housing material | Plastic, Steel |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Power consumption (typical) | 32.5 W |
| Compatible power plug types | AU, EU, UK, US |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 2.99" (76 mm) |
| Depth | 8.94" (227 mm) |
| Height | 0.945" (24 mm) |
| Weight | 9.77 oz (277 g) |
| Package width | 9.88" (251 mm) |
| Package depth | 7.8" (198 mm) |
| Package height | 2.8" (71 mm) |
| Package weight | 2.43 lbs (1.1 kg) |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Compliance certificates | RoHS |
| Quantity per master (outer) case | 10 pc(s) |
| Master (outer) case width | 15.4" (390 mm) |
| Master (outer) case length | 16.8" (426 mm) |
| Master (outer) case height | 11.9" (302 mm) |
| Quantity per shipping (inner) case | 150 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Cable length | 23.6" (0.6 m) |
| Chipset | DisplayLink - DL-5900, VLI - VL812 |
| USB data transfer rates | 5000 Mbit/s |
Product Details
USB3DOCKHDPC
51 Items
New
Data sheet
- Brand compatibility
- Any brand
- Product color
- Black
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- DisplayPorts quantity
- 1
- Headphone connectivity
- 3.5 mm
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Card reader integrated
- No
- Cable lock slot
- Yes
- Cable length
- 23.6" (0.6 m)
- Weight
- 9.77 oz (277 g)
- Harmonized System (HS) code
- 84733020
- Output voltage
- 5 V
- Width
- 2.99" (76 mm)
- Height
- 0.945" (24 mm)
- Data transfer rate
- 5 Gbit/s
- AC input voltage
- 100-240 V
- Certification
- CE, FCC, DisplayLink
- Depth
- 8.94" (227 mm)
- Output current
- 6.5 A
- Package weight
- 2.43 lbs (1.1 kg)
- Master (outer) case width
- 15.4" (390 mm)
- Master (outer) case length
- 16.8" (426 mm)
- Master (outer) case height
- 11.9" (302 mm)
- Quantity per master (outer) case
- 10 pc(s)
- Package width
- 9.88" (251 mm)
- Package depth
- 7.8" (198 mm)
- Package height
- 2.8" (71 mm)
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
- LED indicators
- Activity, Link
- USB connector type
- USB Type-A
- Maximum digital resolution
- 3840 x 2160 pixels
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 80 °C
- Operating relative humidity (H-H)
- 0 - 90%
- AC adapter included
- Yes
- Wake-on-LAN ready
- Yes
- Cables included
- AC, USB
- Auto MDI/MDI-X
- Yes
- Input current
- 1.5 A
- Other operating systems supported
- ChromeOS
- Networking standards
- Compatible power plug types
- AU, EU, UK, US
- Manual
- Yes
- Housing material
- Plastic, Steel
- Power consumption (typical)
- 32.5 W
- Compliance certificates
- RoHS
- Drivers included
- Yes
- Mac compatibility
- Yes
- Quantity per shipping (inner) case
- 150 pc(s)
- Full duplex
- Yes
- Chipset
- DisplayLink - DL-5900, VLI - VL812
- USB data transfer rates
- 5000 Mbit/s
- Charging function
- Yes
- UASP support
- Yes
Specific References
- UPC
- 065030859233
- EAN13
- 0065030859233
- MPN
- USB3DOCKHDPC
