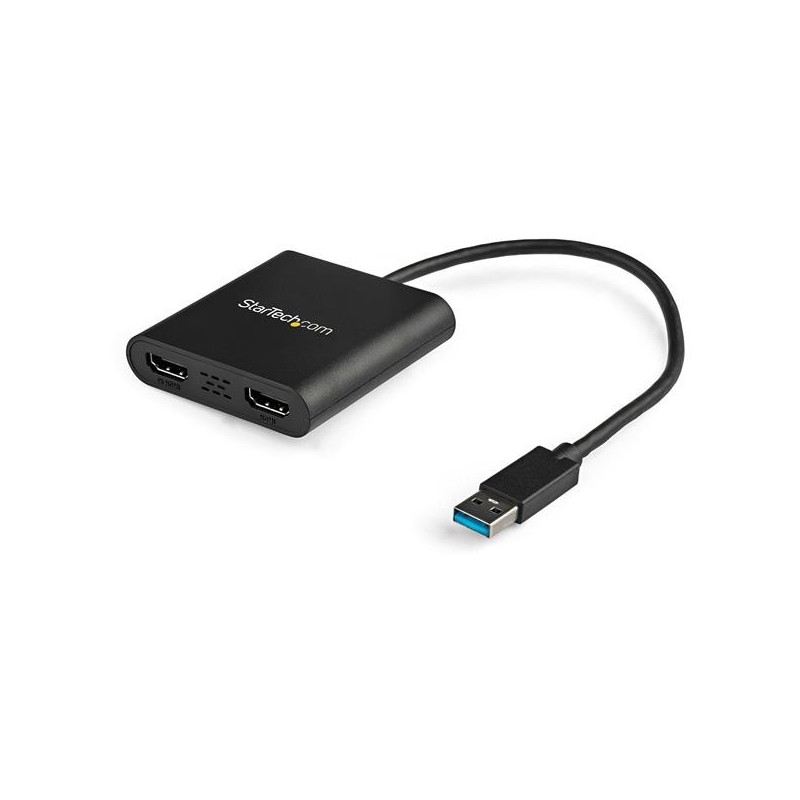

USB32HD2 - USB32HD2

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®

This USB to HDMI® Dual Monitor adapter lets you add two independent HDMI displays to your computer using a single USB 3.0 port. One of the HDMI ports can output resolutions up to 4K, while the other can output resolutions up to 1920 x 1200.

Increases your productivity by providing multiple displays

Adding more displays to your workstation can be difficult, especially if your computer does not support MST or offer many external video ports. This USB to dual HDMI adapter features two video outputs, boosting your productivity by giving you more screen space to work from. With multiple displays you have the freedom to access multiple applications at the same time and reference material on one display while you compose on the other.

Maximizes your screen real estate with resolutions up to 4K

One of the ports on this USB video adapter supports resolutions up to 4K at 30Hz, meaning you can connect a 4K monitor, HDTV, or projector to your computer, even if your laptop or desktop video card doesn't natively support 4K output. The USB to HDMI 4K adapter lets you extend or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen space you need to simplify multitasking and maximize your productivity.

Perfect for all of your business applications with USB 3.0 performance

Using the high-bandwidth USB 3.0 interface, this USB 3.0 to HDMI adapter enables smoother scrolling through documents, higher resolutions and better overall performance than earlier USB adapters. This video adapter is intended to support all of your business applications including web browsing, e-mail, spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitors for reference material.

The USB32HD2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com USB32HD2. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB connector gender: Male. Product color: Black, Housing material: Plastic. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Minimum processor family: Core i5, Minimum processor speed: 2.4 GHz. Width: 2.6" (66 mm), Depth: 12.4" (315 mm), Height: 0.591" (15 mm). Package width: 5.67" (144 mm), Package depth: 8.15" (207 mm), Package height: 1.5" (38 mm)

USB version	3.2 Gen 1 (3.1 Gen 1)
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	2
USB connector type	USB Type-A
USB connector gender	Male
Internal memory	64 MB
Maximum resolution	3840 x 2160 pixels
Maximum resolution (HDMI)	3840 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160
Audio output channels	2.0 channels
Chipset	Trigger T6-688SL, Silicon Image - Sil9136-3
Product color	Black
Housing material	Plastic
Integrated USB cable	Yes
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum processor family	Core i5
Minimum processor speed	2.4 GHz
Minimum RAM	4.1 TB
Width	2.6" (66 mm)
Depth	12.4" (315 mm)
Height	0.591" (15 mm)
Weight	1.98 oz (56 g)
USB cable length	9.84" (0.25 m)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	0 - 85%
Package width	5.67" (144 mm)
Package depth	8.15" (207 mm)
Package height	1.5" (38 mm)
Package weight	6.49 oz (184 g)
Quick installation guide	Yes
Compliance certificates	CE, RoHS
Quantity per master (outer) case	40 pc(s)
Master (outer) case width	12.2" (310 mm)
Master (outer) case length	17.5" (445 mm)
Master (outer) case height	16.9" (430 mm)
Harmonized System (HS) code	84733020
