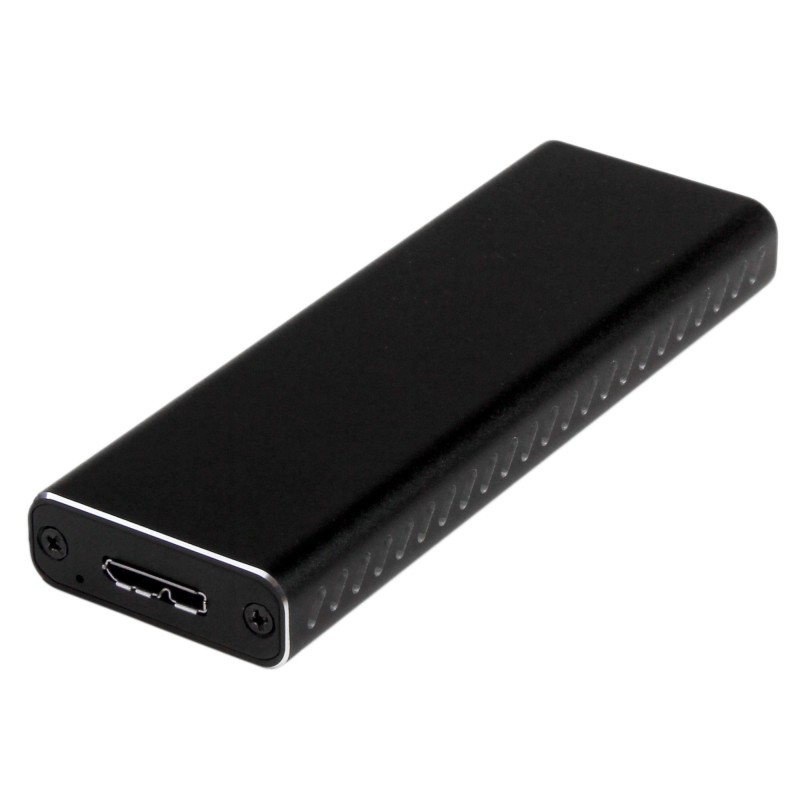

SM2NGFFMBU33 - SM2NGFFMBU33

Turn your solid state drive into an ultra-portable pocket drive

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.

Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.

The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage


StarTech.com SM2NGFFMBU33. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2. Data transfer rate: 6 Gbit/s. Product color: Black. USB connector type: Micro-USB B

Storage drive size	M.2
Supported storage drive interfaces	M.2
Number of storage drives supported	1
Supported storage drive lengths	30,42,60,80 mm
USB connectivity	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	Micro-USB B
USB connector gender	Female
USB ports quantity	1
Integrated USB cable	No
Product type	SSD enclosure
Product color	Black
Material	Aluminum
Certification	FCC, CE, TAA, REACH
Data transfer rate	6 Gbit/s
Chipset	Asmedia - ASM1153
UASP support	Yes
Power source type	USB
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Width	1.38" (35 mm)
Depth	3.94" (100 mm)
Height	0.591" (15 mm)
Weight	1.76 oz (50 g)
Package width	6.42" (163 mm)
Package depth	5.16" (131 mm)
Package height	1.22" (31 mm)
Package weight	4.41 oz (125 g)
Cables included	USB
Screws included	Yes
Screwdriver included	Yes
Manual	Yes
Compliance certificates	RoHS
Harmonized System (HS) code	84733080
