CAC-1082 - W128559442

The Club3D CAC-1082 is a DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.

Supports up to 4K UHD Resolutions
The CAC-1082 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1082 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b.

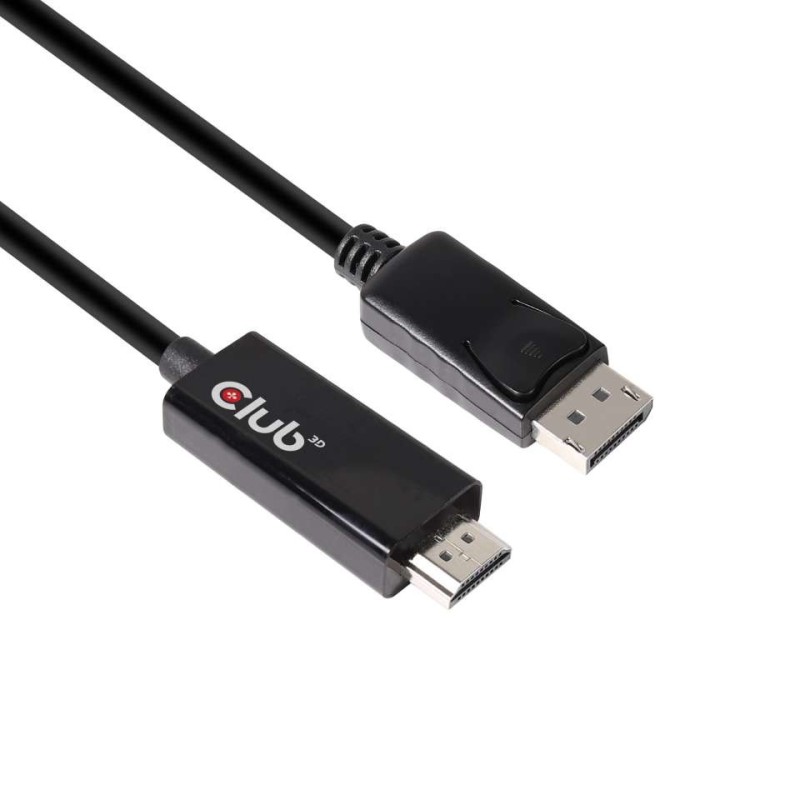

CLUB3D DisplayPort 1.4 to HDMI 2.0b HDR Cable Male/Male 2m/6.56 ft.. Cable length: 78.7" (2 m), Connector 1: DisplayPort 1.4, Connector 2: HDMI 2.0. Compliance certificates: RoHS, Certification: ROHS, FCC, and CE EMI. Weight: 3 oz (85 g). Package width: 5.71" (145 mm), Package depth: 5.71" (145 mm), Package height: 1.77" (45 mm). Quantity per master (outer) case: 10 pc(s)

Cable length	78.7" (2 m)
Connector 1	DisplayPort 1.4
Connector 2	HDMI 2.0
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	4096 x 2160 pixels
Product color	Black
Connector contacts plating	Nickel
DisplayPort version	1.4
Compliance certificates	RoHS
Certification	ROHS, FCC, and CE EMI
Weight	3 oz (85 g)
Package width	5.71" (145 mm)
Package depth	5.71" (145 mm)
Package height	1.77" (45 mm)
Package type	Box
Package weight	1.8 oz (51 g)
Harmonized System (HS) code	84733080
Quantity per master (outer) case	10 pc(s)
Height	0.472" (12 mm)
Width	0.787" (20 mm)
