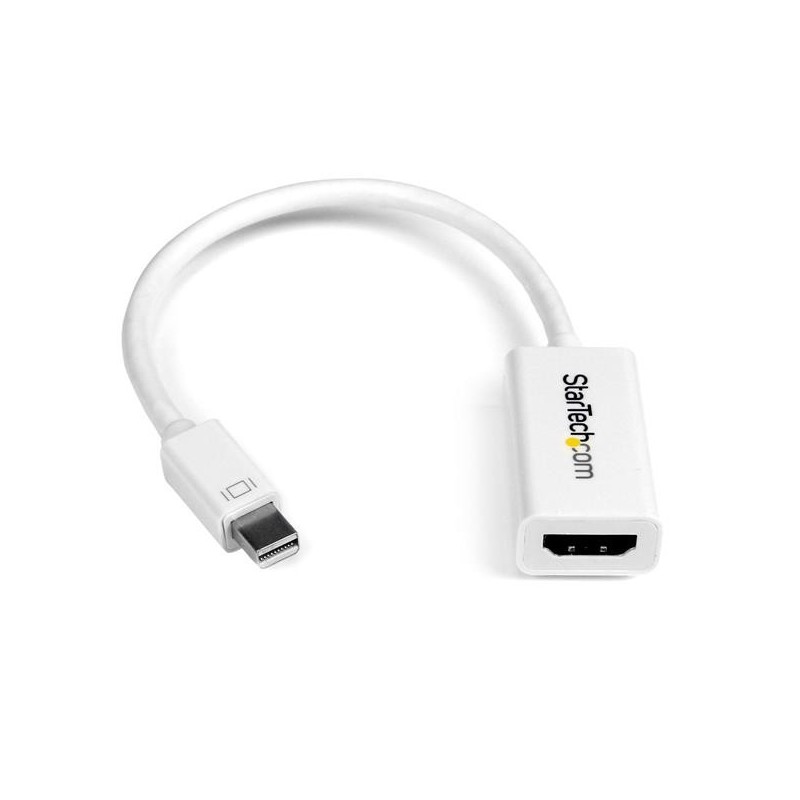

MDP2HD4KSW - MDP2HD4KSW

Connect an HDMI Display to a Single Mode Mini DisplayPort video source

The MDP2HD4KSW Mini DisplayPort to HDMI adapter enables you to connect devices such as the MacBook® Pro, MacBook® Air and any Microsoft® Surface™ Pro devices with mDP, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.

With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

To support your Mac® the HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.

With a sleek uniform white design the MDP2HD4KSW looks great next to your Mac®, and is backed by a 3-year StarTech.com warranty, and lifetime technical support.

The StarTech.com Advantage


StarTech.com MDP2HD4KSW. Cable length: 5.91" (0.15 m), Connector 1: Mini DisplayPort, Connector 2: HDMI. Compliance certificates: CE, RoHS. Weight: 0.564 oz (16 g). Package width: 4.06" (103 mm), Package depth: 7.4" (188 mm), Package height: 0.512" (13 mm). Quantity per pack: 1 pc(s)

Cable length	5.91" (0.15 m)
Connector 1	Mini DisplayPort
Connector 2	HDMI
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	1.4
HDCP	Yes
HDCP version	1.4
DisplayPort version	1.2
DisplayPort Content Protection (DPCP)	Yes
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Supported video modes	720p, 1080p, 2160p
Maximum refresh rate	30 Hz
Product color	White
Supported audio channels	7.1
Plug and Play	Yes
Converter type	Active
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Compliance certificates	CE, RoHS
Weight	0.564 oz (16 g)
Package width	4.06" (103 mm)
Package depth	7.4" (188 mm)
Package height	0.512" (13 mm)
Package weight	0.776 oz (22 g)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84733080
Master (outer) case width	13.4" (340 mm)
Master (outer) case length	19.9" (505 mm)
Master (outer) case height	8.54" (217 mm)
Quantity per master (outer) case	320 pc(s)
Compatible products	Mac Book Pro / Mac Book Air
