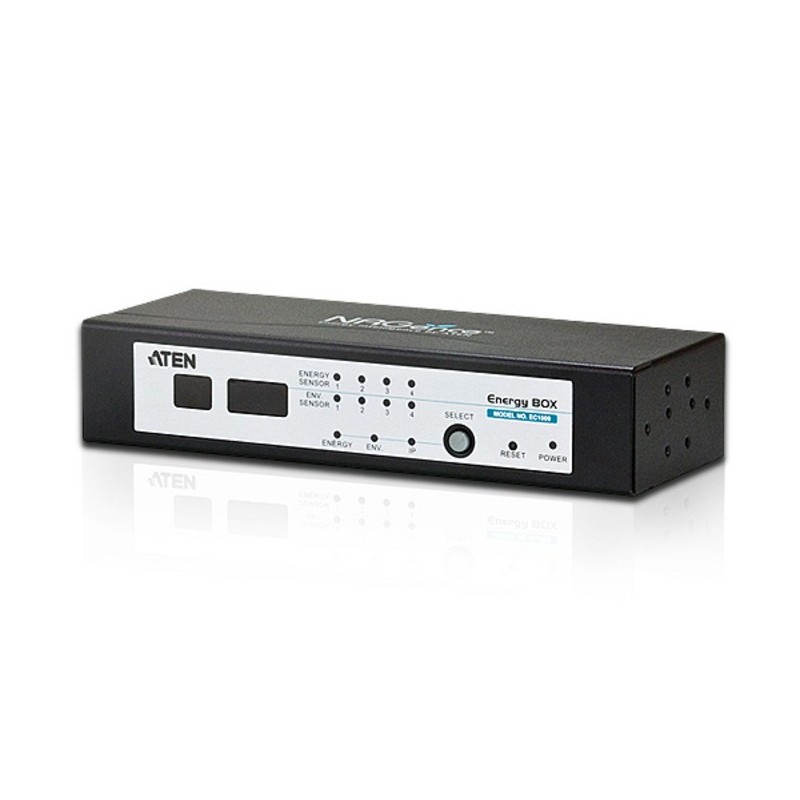

EC1000-AX-G

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management.

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.

The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN's eco Sensors software.

The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
1x EC1000 Energy Box
1x 0AD8-8605-40MG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

ATEN EC1000-AX-G. Connectivity technology: Wired, LED indicators: Power, Status. Housing color: Black, Housing material: Metal. Power source type: AC, Input voltage: 100-240 V, Operating frequency: 50/60 MHz. Width: 7.87" (200 mm), Depth: 2.99" (75.9 mm), Height: 1.73" (44 mm). Package width: 3.74" (95 mm), Package depth: 10.4" (265 mm), Package height: 8.66" (220 mm)

Connectivity technology	Wired
Number of devices supported	4
RJ-45 ports quantity	4
LED indicators	Power, Status
DC-in jack	Yes
Housing color	Black
Housing material	Metal
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Power source type	AC
Input voltage	100-240 V
Operating frequency	50/60 MHz
Power consumption (typical)	2.93 W
Width	7.87" (200 mm)
Depth	2.99" (75.9 mm)
Height	1.73" (44 mm)
Weight	3.13 lbs (1.42 kg)
Package width	3.74" (95 mm)
Package depth	10.4" (265 mm)
Package height	8.66" (220 mm)
Package weight	3.7 lbs (1.68 kg)
Manual	Yes
Quantity per master (outer) case	5 pc(s)
Master (outer) case weight	20.1 lbs (9.1 kg)
Master (outer) case length	19.7" (500 mm)
Master (outer) case width	9.13" (232 mm)
Master (outer) case height	11.1" (283 mm)
Master (outer) case net weight	15.7 lbs (7.1 kg)
