32121

Continuously emulates VGA EDID information
Supports resolutions up to 1920x1200@60Hz
For use with 32120 for cloning
Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
2 Year warranty

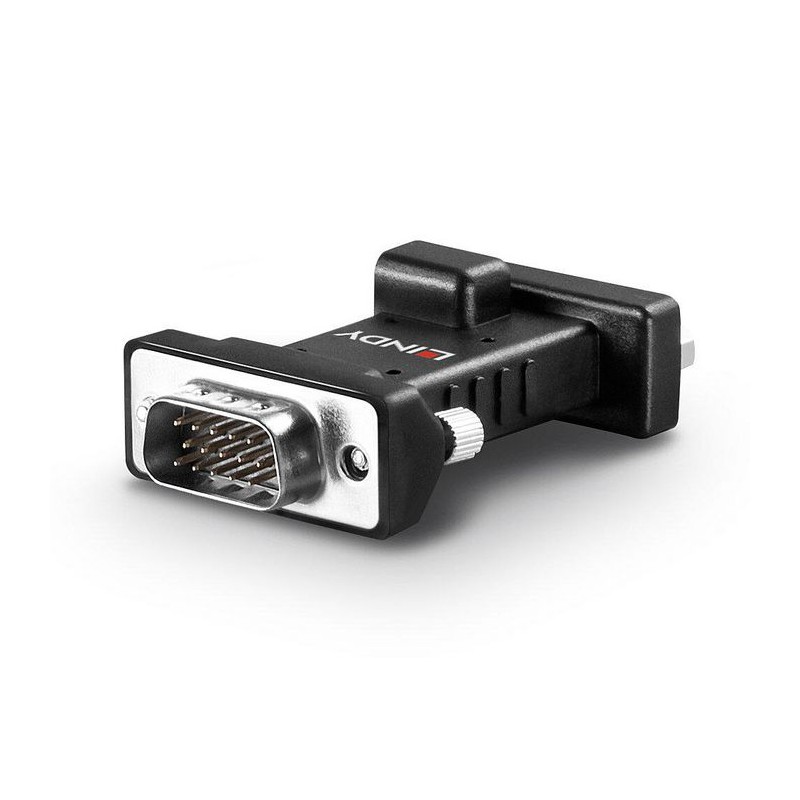

The Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.

It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

• Stores EDID data to ensure maximum compatibility between a source and display
• Clones and stores EDID / DDC information from a HDMI, VGA or DVI display
• Overwrites pre-set EDID of emulators with stored EDID for time saving compatibility
• For use with HDMI (32104), VGA (32121) and DVI (32122) EDID Emulators
