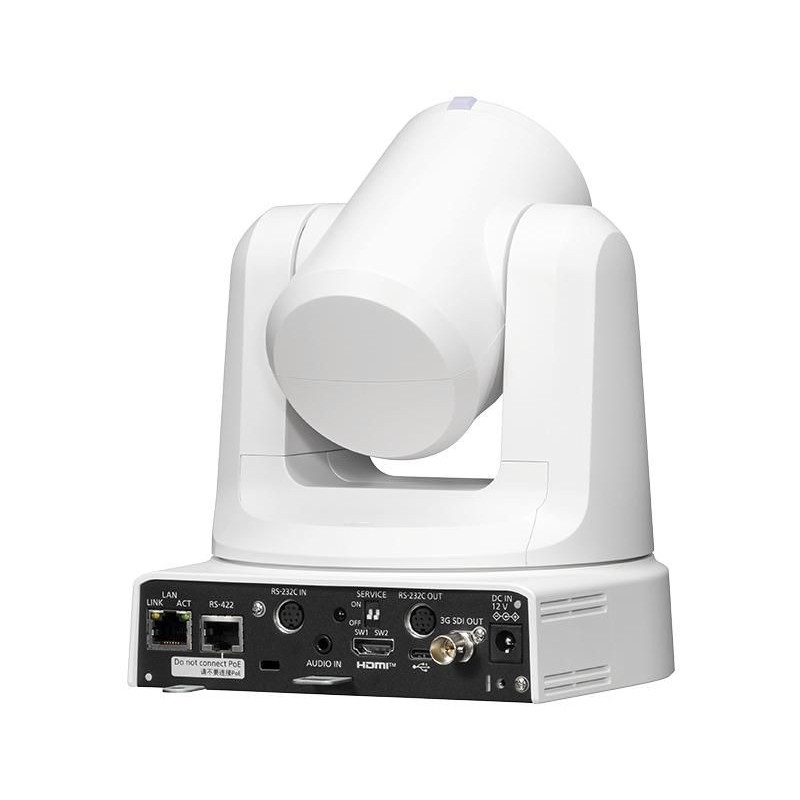

AW-HE20WE
Full-HD PTZ Camera with simultaneous 3G-SDI, HDMI & USB output, 1/2.8-type MOSx1, Optical zoom: 12 x, JPEG(MJPEG), H.264, H.265, 1920x1080, 1280x720, 640x360, IEEE802.3 at, White
Descrizione
The AW-HE20 has a newly-designed and compact body, which makes it very easy to handle and to install in any kind of setting, especially when positioning the camera on trusses, ceilings or wall mounts for class rooms and meetings rooms.
The AW-HE20 has been designed to support the following markets:
- Live streaming events
- Higher education
- Corporate installs
Single-cable solution
The HE20 also offers PoE+ support for camera power, control and video transmission over a single cable.
Online Video Content support
When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the AW-HE20 in the same way you would an USB camera. This also ensures connectivity with video platforms including Panopto.
Upgraded sensor for HD Production
The HE20 features a 1/2.8-type MOS sensor that produces stunning Full-HD video. The AW-HE20 supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing workflows thanks to its simultaneous video output feature.
Wide-Angle Lens
The AW-HE20 introduces a new wide-angle lens with a 71° field of view and a 12x optical zoom, enabling a wide area to be shot from a limited installation space. This allows shooting in meeting rooms and huddle spaces.
HD Analogue Outputs
The AW-HE20 supports up to HD 50/60p video at 1920 x 1080 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP – which can be activated simultaneously for HD workflows.
IP Protocol Support
RTMP/RTMPS*1 provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.
Simplified Workflows
Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software as well as other Panasonic software from the Broadcast & ProAV range.
The AW-HE20 has been designed to support the following markets:
- Live streaming events
- Higher education
- Corporate installs
Single-cable solution
The HE20 also offers PoE+ support for camera power, control and video transmission over a single cable.
Online Video Content support
When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the AW-HE20 in the same way you would an USB camera. This also ensures connectivity with video platforms including Panopto.
Upgraded sensor for HD Production
The HE20 features a 1/2.8-type MOS sensor that produces stunning Full-HD video. The AW-HE20 supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing workflows thanks to its simultaneous video output feature.
Wide-Angle Lens
The AW-HE20 introduces a new wide-angle lens with a 71° field of view and a 12x optical zoom, enabling a wide area to be shot from a limited installation space. This allows shooting in meeting rooms and huddle spaces.
HD Analogue Outputs
The AW-HE20 supports up to HD 50/60p video at 1920 x 1080 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP – which can be activated simultaneously for HD workflows.
IP Protocol Support
RTMP/RTMPS*1 provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.
Simplified Workflows
Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software as well as other Panasonic software from the Broadcast & ProAV range.
- Compact size & wide angle
- Simultaneous 3G-SDI, HDMI & USB output
- High-Quality Video Streaming for More Comfortable Online Communication
- Excellent system flexiblility to achieve smart wiring and smooth operation
Specifiche
Camera
| Auto focusing (AF) modes | Auto/Manual |
| Camera type | Single camera |
| Digital zoom | 4 x |
| Focal length range | 3.9 - 46.8 mm |
| Focus adjustment | Auto/Manual |
| Gain control type | Auto |
| Horizontal field of view (tele) | 6 ° |
| Horizontal field of view (wide) | 71 ° |
| Megapixel (approx.) | 8.46 MP |
| Number of camera presets | 100 |
| Optical sensor size | 1/2.8 " |
| Optical zoom | 12 x |
| PTZ control | Yes |
| Sensor type | MOS |
| Vertical field of view (tele) | 3 ° |
| Vertical field of view (wide) | 43 ° |
| Zoom capability | Yes |
Design
| Mounting type | Table/Ceiling |
| Pan preset speed | 200 °/s |
| Pan range | -170 - 170 ° |
| Pan speed (max) | 100 °/s |
| Product colour | White |
| Tally light | Yes |
| Tilt angle range | -30 - 90 ° |
| Tilt preset speed | 200 °/s |
| Tilt speed (max) | 100 °/s |
| Web-based management | Yes |
Network
| Network streaming | Yes |
| Networking standards | IEEE 802.3at |
| Streaming capability | Yes |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
Ports & interfaces
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| RS-422 ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Power
| DC input voltage | 12 V |
| Power source type | DC/PoE |
System requirements
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Vendor information
| Brand Name | Panasonic |
| Warranty | 1 |
Video
| HD type | Full HD |
| Maximum frame rate | 60 fps |
| Maximum video resolution | 1920 x 1080 Pixel |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 360 |
| Supported video modes | 1080i/1080p/720p |
| Video formats supported | H.264/H.265/M-JPEG |
Dettagli del prodotto
2025-12-22
Nuovo
Scheda tecnica
- Megapixel
- 8.46 MP
- Zoom fotocamera
- Yes
- Zoom digitale
- 4 x
- Regolazione messa a fuoco
- Auto/Manual
- Formati video supportati
- H.264/H.265/M-JPEG
- Zoom ottico
- 12 x
- Panoramica
- -170 - 170 °
- Lunghezza focale
- 3.9 - 46.8 mm
- Modalità di messa a fuoco automatica
- Auto/Manual
- Webbasierte Verwaltung
- Yes
- Netzwerkstandards
- IEEE 802.3at
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 1
- Anzahl der HDMI-Anschlüsse
- 1
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-C Anschlüsse
- 1
- Campo di visione orizzontale (ampio)
- 71 °
- Optische Sensorgröße
- 1/2.8 "
- Sensorart
- MOS
- Stromquellentyp
- DC/PoE
- Unterstützte Videomodi
- 1080i/1080p/720p
- Unterstützte Mac-Betriebssysteme
- Yes
- Befestigungsart
- Table/Ceiling
- Neigungswinkelbereich
- -30 - 90 °
- DC-Eingangsspannung
- 12 V
- Unterstützte Grafikauflösungen
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 360
- HD-Typ
- Full HD
- Brand Name
- Panasonic
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 50 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 20 - 90 %
- Unterstützte Windows-Betriebssysteme
- Yes
- Produktfarbe
- White
- RS-232-Ausgangsports
- 1
- RS-232-Eingangsports
- 1
- Maximum Bildrate
- 60 fps
- Maximum Videoauflösung
- 1920 x 1080 Pixel
- Anzahl der Kameravoreinstellungen
- 100
- Horizontales Sichtfeld (Tele)
- 6 °
- Kameratyp
- Single camera
- PTZ-Steuerung
- Yes
- Steuerungstyp gewinnen
- Auto
- Vertikales Sichtfeld (breit)
- 43 °
- Vertikales Sichtfeld (Tele)
- 3 °
- Neigungsgeschwindigkeit (max.)
- 100 °/Sekunde
- Pan voreingestellte Geschwindigkeit
- 200 °/Sekunde
- Schwenkgeschwindigkeit (max.)
- 100 °/Sekunde
- Tally-Licht
- Yes
- Voreingestellte Neigungsgeschwindigkeit
- 200 °/Sekunde
- Netzwerk-Streaming
- Yes
- Streaming-Fähigkeit
- Yes
- RS-422-Ports
- 1
Riferimenti Specifici
- isbn
- 978-1-23456-789-0
- MPN
- AW-HE20WE
Full-HD PTZ Camera with simultaneous 3G-SDI, HDMI & USB output, 1/2.8-type MOSx1, Optical zoom: 12 x, JPEG(MJPEG), H.264, H.265, 1920x1080, 1280x720, 640x360, IEEE802.3 at, White
