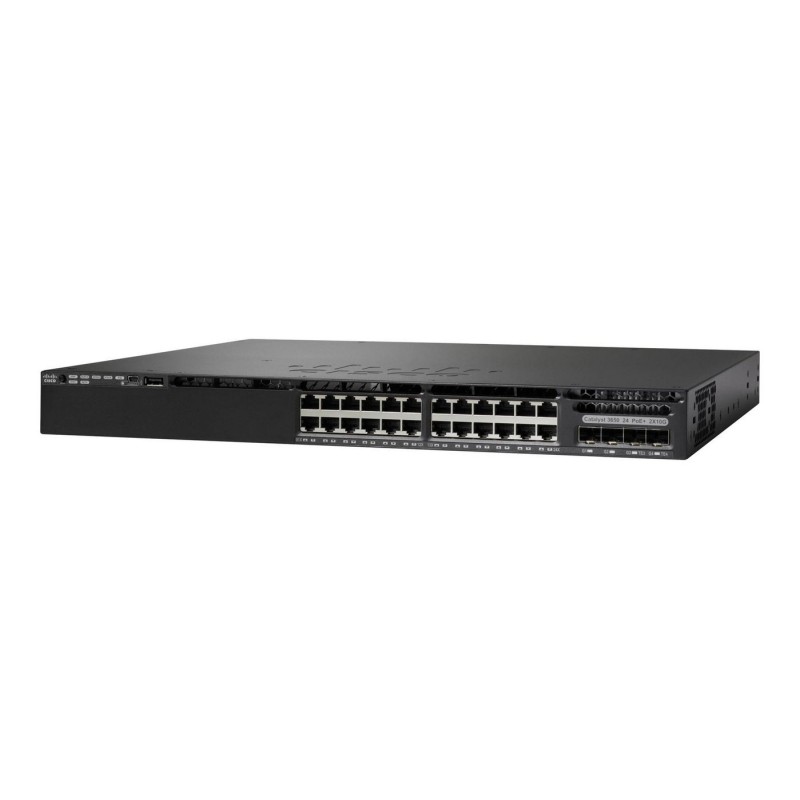

WS-C3650-24PD-L-RFB - 6770K82
Catalyst 3650-24PD-L, Standalone, 1U, 24 x 10/100/1000 Ethernet PoE+, 2x10G Uplink ports, DRAM 4GB, Flash 2GB, 640W, LAN Base
Descrizione
The Cisco Catalyst 3650-24PD-L Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).
- ETHERNET PORT CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports; two 10 G and two 1 G uplinks
- SOFTWARE: LAN base feature set
- ADVANCED SECURITY: IEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection and WIPSs (wireless intrusion prevention systems)
- COMPACT: Reduced depth of 11.62 inches (29.5 cm) for shallow-depth cabinets
- PEACE OF MIND: Enhanced limited lifetime warranty
Specifiche
Data transmission
| Jumbo frames support | Yes |
| MAC address table | 32000 voci |
| Switching capacity | 254 Gbit/s |
Design
| Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)/AS/NZS CISPR22 Class A/CISPR22 Class A/CISPR24/CNS13438 Class A/EN55022 Class A/EN55024/EN61000-3-2/EN61000-3-3/ICES003 Class A/KCC/KN22 Class A/KN24/VCCI Class A |
| Form factor | 1U |
| LED indicators | Yes |
| Market segment | Business |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Stackable | Yes |
Logistics data
| Products per master (outer) case | 1 pz |
| Quantity per pack | 1 pz |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 4094 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Non-operating altitude | 0 - 5000 m |
| Operating altitude | 0 - 1500 m |
| Operating relative humidity (H-H) | 5 - 96 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Bandwidth | 160 Gbit/s |
| Packaging content | WS-C3650-24PD-L Accessory Kit, 1 printed document |
Performance
| Flash memory | 2000 MB |
| Internal memory | 4096 MB |
| Mean time between failures (MTBF) | 528280 h |
| Memory type | DRAM |
| Noise level | 48 dB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (typical) | 67.75 W |
| Power plug type | Type C |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 390 W |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Technical details
| Products per shipping (inner) case | 1 pz |
Vendor information
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
Dettagli del prodotto
6770K82
2 Articoli
imesso a nuovo
Scheda tecnica
- Auto MDI/MDI-X
- Yes
- Memoria flash
- 2000 MB
- Sicurezza
- UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
- Impilabile
- Yes
- Numero di VLA
- 4094
- Caratteristiche DHCP
- DHCP server
- Routing IP
- Yes
- Contenuto della confezione
- WS-C3650-24PD-L Accessory Kit, 1 printed document
- MAC-Adresstabelle
- 32000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L3
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 24
- Gesamtbudget für Power over Ethernet (PoE)
- 390 W
- Stromversorgung über Ethernet (PoE)
- Yes
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Ratenbegrenzung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 4
- SSH/SSL-Unterstützung
- Yes
- Unterstützung für redundante Stromversorgung (RPS)
- Yes
- Mean time between failures (MTBF)
- 528280 h
- Capacità di frenata
- 254 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Geräuschpegel
- 48 dB
- Zertifizierung
- 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)/AS/NZS CISPR22 Class A/CISPR22 Class A/CISPR24/CNS13438 Class A/EN55022 Class A/EN55024/EN61000-3-2/EN61000-3-3/ICES003 Class A/KCC/KN22 Class A/KN24/VCCI Class A
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 67.75 W
- Speichertyp
- DRAM
- Bandbreite
- 160 Gbit/s
- Vollduplex
- Yes
- Netzsteckertyp
- Type C
- Betriebshöhe
- 0 - 1500 m
- Nichtbetriebshöhe
- 0 - 5000 m
- Produkte pro Master (Außen)-Case
- 1 Stück(e)
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Produkte pro (innerem) Versandkarton
- 1 Stück(e)
- Brand Name
- Cisco
- Warranty
- 3 Month(s)
- Betriebstemperatur (TT)
- -5 - 50 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 96 %
- Menge pro Packung
- 1 Stück(e)
- Interner Speicher
- 4096 MB
- Produktfarbe
- Black
- Anzahl Netzteile
- 1
- Market segment
- Business
Riferimenti Specifici
- MPN
- WS-C3650-24PD-L-RFB
