WS-C3650-48PD-S-RFB - 6770K63

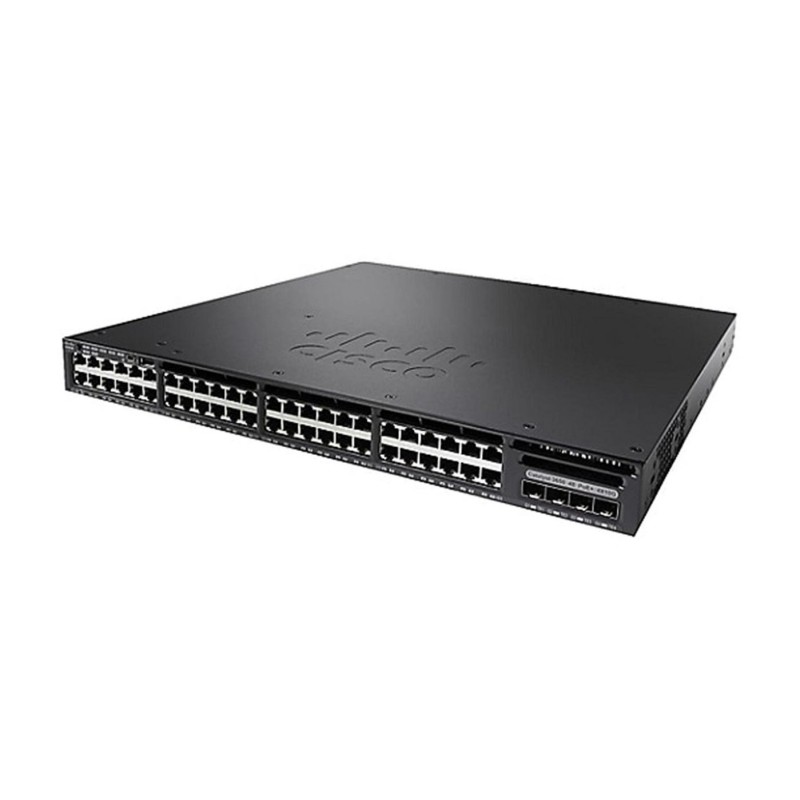

Name: Cisco WS-C3650-48PD-S-RFB
Brand: Cisco
SKU: 6770K63
Price: 140.7 CHF
Availability: InStock

Riferimento 6770K63

Marca Cisco

Catalyst 3650-48PD-S, Standalone, 1U, 48 x 10/100/1000 Ethernet PoE+, 2x10G Uplink ports, DRAM 4GB, Flash 2GB, 640W, IP Base

140,7 CHF

Tasse incluse

130,2 CHF Tasse escluse

Consegna in 4-5 giorni

Quantità

In magazzino

In magazzino: 7 Articoli

Descrizione
Dettagli del prodotto

Descrizione

The Cisco Catalyst 3650-48PD-S Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

ETHERNET PORT CONFIGURATION: 48 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports; two 10 G and two 1 G uplinks
SOFTWARE: IP base feature set
ADVANCED SECURITY: IEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection and WIPSs (wireless intrusion prevention systems)
COMPACT: Reduced depth of 11.62 inches (29.5 cm) for shallow-depth cabinets
PEACE OF MIND: Enhanced limited lifetime warranty

Specifiche

Data transmission

Jumbo frames support	Yes
MAC address table	32000 voci
Switching capacity	176 Gbit/s

Design

Certification	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)/AS/NZS CISPR22 Class A/CISPR22 Class A/CISPR24/CNS13438 Class A/EN55022 Class A/EN55024/EN61000-3-2/EN61000-3-3/ICES003 Class A/KCC/KN22 Class A/KN24/VCCI Class A
Form factor	1U
LED indicators	Yes
Market segment	Business
Product colour	Black
Rack mounting	Yes
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Stackable	Yes

Logistics data

Products per master (outer) case	1 pz
Quantity per pack	1 pz

Management features

Quality of Service (QoS) support	Yes
Switch layer	L3
Switch type	Managed
Web-based management	Yes

Multicast features

Multicast support

Yes

Network

10G support	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
IP routing	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs	4094
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Operational conditions

Non-operating altitude	0 - 5000 m
Operating altitude	0 - 1500 m
Operating relative humidity (H-H)	5 - 96 %
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Other features

Bandwidth	160 Gbit/s
Packaging content	WS-C3650-48PD-S Accessory Kit, 1 printed document

Performance

Flash memory	2000 MB
Internal memory	4096 MB
Mean time between failures (MTBF)	383760 h
Memory type	DRAM
Noise level	48 dB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4

Power

AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power consumption (typical)	97.45 W
Power plug type	Type C
Redundant power supply (RPS) support	Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	390 W

Security

Access Control List (ACL)	Yes
DHCP features	DHCP server
IGMP snooping	Yes
SSH/SSL support	Yes

Technical details

Products per shipping (inner) case

1 pz

Vendor information

Brand Name	Cisco
Warranty	3 Month(s)

Dettagli del prodotto

Riferimento 6770K63

In magazzino 7 Articoli

Condizione imesso a nuovo

Scheda tecnica

Auto MDI/MDI-X: Yes
Memoria flash: 2000 MB
Sicurezza: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Impilabile: Yes
Numero di VLA: 4094
Caratteristiche DHCP: DHCP server
Routing IP: Yes
Contenuto della confezione: WS-C3650-48PD-S Accessory Kit, 1 printed document
MAC-Adresstabelle: 32000 Eintragungen
Unterstützung für Jumbo-Frames: Yes
Gestellmontage: Yes
Ebene wechseln: L3
Schaltertyp: Managed
Webbasierte Verwaltung: Yes
Multicast-Unterstützung: Yes
Link-Aggregation: Yes
Netzwerkstandards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Spanning-Tree-Protokoll: Yes
Grundlegende Anzahl von RJ-45-Ethernet-Ports: 48
Grundlegender Switching-RJ-45-Ethernet-Porttyp: Gigabit Ethernet (10/100/1000)
Anzahl der Power over Ethernet Plus (PoE+) Ports: 48
Gesamtbudget für Power over Ethernet (PoE): 390 W
Stromversorgung über Ethernet (PoE): Yes
IGMP-Schnüffelei: Yes
Zugriffskontrollliste (ACL): Yes
Quality of Service (QoS)-Unterstützung: Yes
Ratenbegrenzung: Yes
Anzahl der SFP+-Modulsteckplätze: 4
SSH/SSL-Unterstützung: Yes
Unterstützung für redundante Stromversorgung (RPS): Yes
Mean time between failures (MTBF): 383760 h
Capacità di frenata: 176 Gbit/s
Formfaktor: 1U
LED-Anzeigen: Yes
Geräuschpegel: 48 dB
Zertifizierung: 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)/AS/NZS CISPR22 Class A/CISPR22 Class A/CISPR24/CNS13438 Class A/EN55022 Class A/EN55024/EN61000-3-2/EN61000-3-3/ICES003 Class A/KCC/KN22 Class A/KN24/VCCI Class A
AC-Eingangsfrequenz: 50 - 60 Hz
AC-Eingangsspannung: 100 - 240 V
Stromverbrauch (typisch): 97.45 W
Speichertyp: DRAM
Bandbreite: 160 Gbit/s
Vollduplex: Yes
Netzsteckertyp: Type C
Betriebshöhe: 0 - 1500 m
Nichtbetriebshöhe: 0 - 5000 m
Produkte pro Master (Außen)-Case: 1 Stück(e)
10G-Unterstützung: Yes
VLAN-Unterstützung: Yes
Produkte pro (innerem) Versandkarton: 1 Stück(e)
Brand Name: Cisco
Warranty: 3 Month(s)
Betriebstemperatur (TT): -5 - 50 °C
Lagertemperatur (TT): -40 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH): 5 - 96 %
Menge pro Packung: 1 Stück(e)
Interner Speicher: 4096 MB
Produktfarbe: Black
Anzahl Netzteile: 1
Market segment: Business

Riferimenti Specifici

MPN: WS-C3650-48PD-S-RFB
