337,7 CHF
tasse incl.
312,4 CHF
tasse escl.
In magazzino
145,3 CHF
tasse incl.
134,4 CHF
tasse escl.
In magazzino

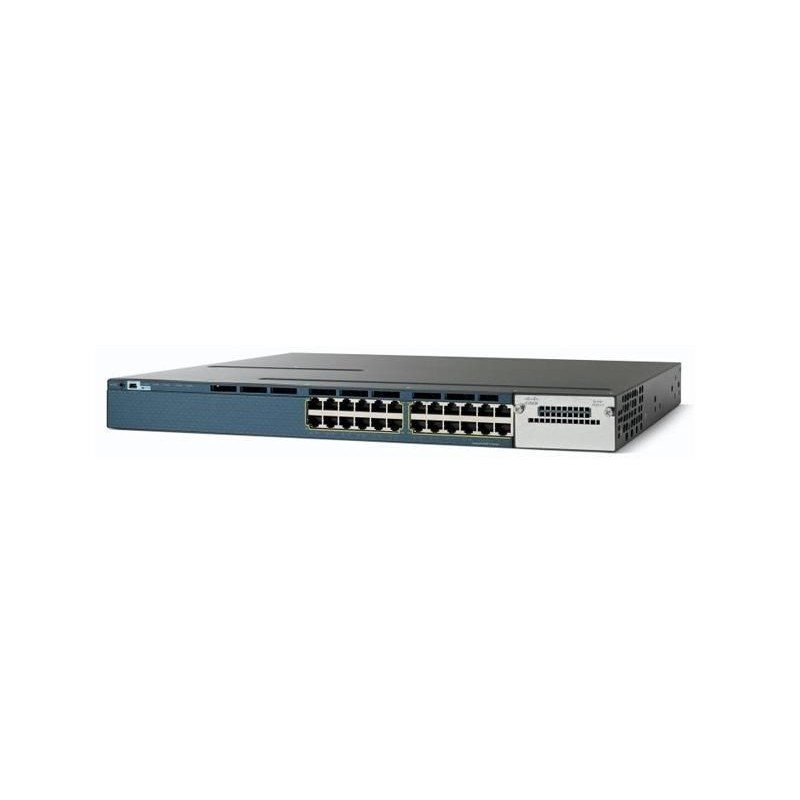

WS-C3560X-24P-E-RFB - 677R051
Standalone 24 10/100/1000 Ethernet PoE+ ports, with 715W AC power supply 1 RU, IP Services feature set
Descrizione
Cisco Catalyst 3750-X and 3560-X Series Switches
The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750‑X), IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Cisco Catalyst 3750-X and 3560-X Series primary features:
- 24 and 48 10/100/1000 PoE+, non-PoE models, and 12 and 24 GE SFP port models.
- 24 and 48 10/100/1000 UPOE-capable models with Energy Efficient Ethernet (EEE) support.
- Four optional uplink network modules with GE or 10GE ports.
- Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor.
- Dual redundant, modular power supplies and fans.
- Media Access Control Security (MACsec) hardware-based encryption.
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink.
- Open Shortest Path First (OSPF) for routed access in IP Base image.
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware.
- Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support.
- Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network.
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port.
The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750‑X), IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Cisco Catalyst 3750-X and 3560-X Series primary features:
- 24 and 48 10/100/1000 PoE+, non-PoE models, and 12 and 24 GE SFP port models.
- 24 and 48 10/100/1000 UPOE-capable models with Energy Efficient Ethernet (EEE) support.
- Four optional uplink network modules with GE or 10GE ports.
- Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor.
- Dual redundant, modular power supplies and fans.
- Media Access Control Security (MACsec) hardware-based encryption.
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink.
- Open Shortest Path First (OSPF) for routed access in IP Base image.
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware.
- Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support.
- Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network.
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port.
Specifiche
Data transmission
| Jumbo frames support | Yes |
| MAC address table | 12000 voci |
| Switching capacity | 160 Gbit/s |
Design
| Certification | BSMI A, VCCI A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1/EN 55022 A, CISPR 22 A, AS/NZS 3548 A,/FCC Part 15 (CFR 47) A, ICES-003 A, |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Turquoise |
| Rack mounting | Yes |
| Stackable | No |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 1005 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Mean time between failures (MTBF) | 208218 h |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 715 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 435 W |
Protocols
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
Security
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
Dettagli del prodotto
677R051
4 Articoli
imesso a nuovo
Scheda tecnica
- Auto MDI/MDI-X
- Yes
- Memoria flash
- 64 MB
- Impilabile
- No
- Controllo Broadcast storm
- Yes
- Numero di VLA
- 1005
- Caratteristiche DHCP
- DHCP client/DHCP server
- MAC-Adresstabelle
- 12000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2/L3
- Schaltertyp
- Managed
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 24
- Gesamtbudget für Power over Ethernet (PoE)
- 435 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Verwaltungsprotokolle
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
- IGMP-Schnüffelei
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Mean time between failures (MTBF)
- 208218 h
- Capacità di frenata
- 160 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Zertifizierung
- BSMI A, VCCI A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1/EN 55022 A, CISPR 22 A, AS/NZS 3548 A,/FCC Part 15 (CFR 47) A, ICES-003 A,
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 715 W
- Vollduplex
- Yes
- Betriebshöhe
- 0 - 3000 m
- Nichtbetriebshöhe
- 0 - 15000 m
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Brand Name
- Cisco
- Warranty
- 3 Month(s)
- Betriebstemperatur (TT)
- -5 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Interner Speicher
- 256 MB
- Produktfarbe
- Turquoise
- Statische Hafensicherheit
- Yes
