Descrizione

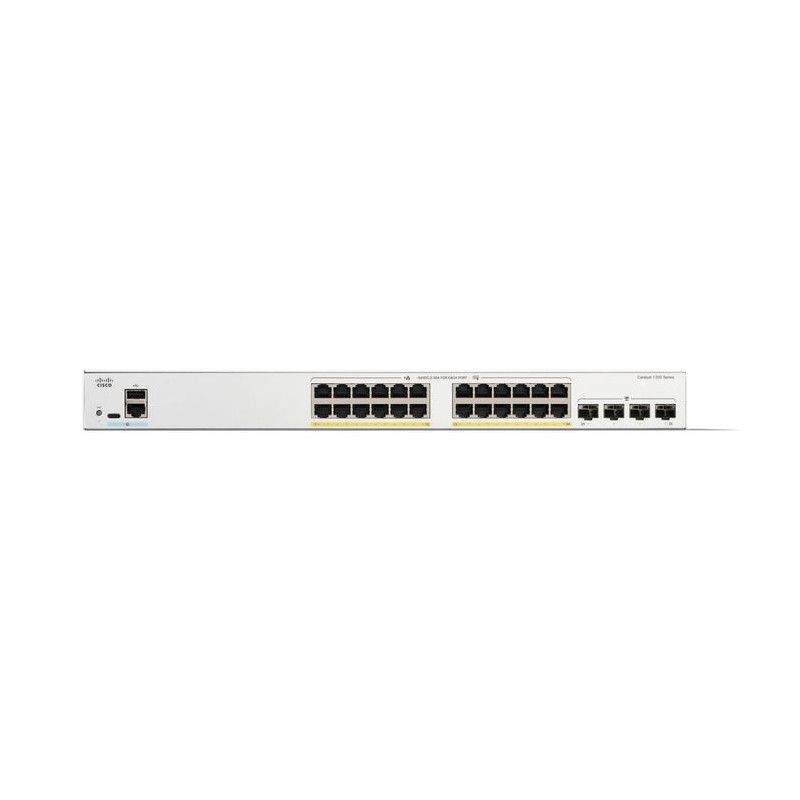

The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifiche
Certificates
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Data transmission
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 voci |
| Number of queues | 8 |
| Number of static routes | 32 |
| Packet buffer memory | 1.5 MB |
| Static route | Yes |
| Switching capacity | 56 Gbit/s |
Design
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
| Reset button | Yes |
Management features
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3az |
| Number of VLANs | 255 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -25 - 70 °C |
Performance
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 512 MB |
| Internal memory | 1000 MB |
| Mean time between failures (MTBF) | 698220 h |
| Memory type | DDR4-SDRAM |
| Processor frequency | 1.4 MHz |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 10.65 W |
| Power plug type | Type C |
| Power source | AC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 195 W |
Protocols
| GARP VLAN Registration Protocol (GVRP) | Yes |
Security
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
| DHCP features | DHCP client |
| DoS attack prevention | Yes |
| IGMP entries | 255 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
Dettagli del prodotto
2026-05-25
Nuovo
Scheda tecnica
- Memoria flash
- 512 MB
- Tasto reset
- Yes
- Controllo Broadcast storm
- Yes
- Numero di VLA
- 255
- Caratteristiche DHCP
- DHCP client
- Ispezione ARP
- Yes
- Autenticazione
- Guest VLAN
- Numero di instradamenti statici
- 32
- Instradamento statico
- Yes
- Voci IGMP
- 255
- Anzahl der Warteschlangen
- 8
- Jumbo-Rahmen
- 9000
- MAC-Adresstabelle
- 8000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Ethernet-LAN-Datenraten
- 1000 Mbit/s
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3az
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 28
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45/USB Type-C
- Gesamtbudget für Power over Ethernet (PoE)
- 195 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Algorithmen für die Warteschlangenplanung
- Weighted Round Robin (WRR)
- Authentifizierungsart
- RADIUS
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessorfrequenz
- 1.4 MHz
- MAC-Adressfilterung
- Yes
- Firmware aktualisierbar
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Paketpufferspeicher
- 1.5 MB
- MIB-Unterstützung
- Y
- Standorteinstellungen konfigurieren (CLI)
- Yes
- Portspiegelung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Weiterleitungstarif
- 41.66 Mpps
- Schleifenschutz
- Yes
- Mean time between failures (MTBF)
- 698220 h
- Capacità di frenata
- 56 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Zertifizierung
- UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
- AC-Eingangsfrequenz
- 50/60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 10.65 W
- Sicherheitsalgorithmen
- 802.1x RADIUS
- Speichertyp
- DDR4-SDRAM
- Eingebauter Prozessor
- Yes
- Netzsteckertyp
- Type C
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Gehäusematerial
- Metal
- Energiequelle
- AC
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- -5 - 50 °C
- Lagertemperatur (TT)
- -25 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 10 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Interner Speicher
- 1000 MB
- Produktfarbe
- White
- Anzahl der SFP-Modulsteckplätze
- 4
- Head-of-Line (HOL)-Blockierung
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- GARP VLAN-Registrierungsprotokoll (GVRP)
- Yes
- Regeln der Zugriffskontrollliste (ACL)
- 512
- Verhinderung von DoS-Angriffen
- Yes
Riferimenti Specifici
- MPN
- C1200-24P-4G-RF
