Descrizione
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.
Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.

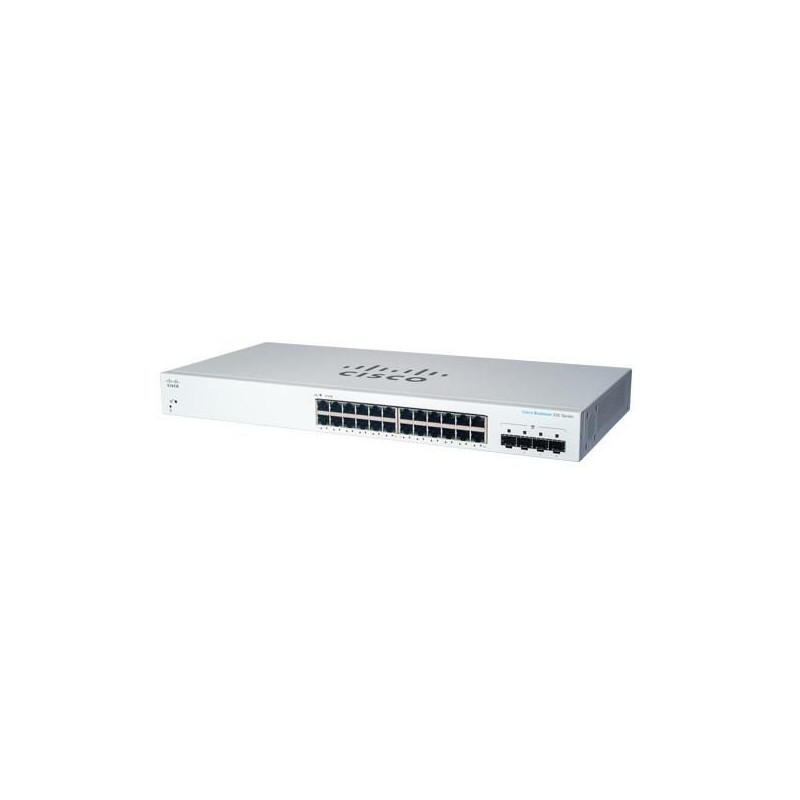

Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
Business Applications
With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Possible deployment scenarios include:
Small office networking: The versatility and affordability of the Cisco Business 220 Series family of switches provide an ideal business-class networking foundation for small businesses with limited IT support and budget.
- Wireless connectivity. With PoE+ support, and comprehensive security and Quality of Service (QoS) capabilities, Cisco Business 220 Series switches provide a solid foundation to add business-grade wireless to the network. You can easily deploy Cisco Business wireless access points to increase workforce productivity without worrying about power and throughput.
- Unified communications. The Cisco Business 220 Series switches provide QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco Business 220 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.
Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.
Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
Business Applications
With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Possible deployment scenarios include:
Small office networking: The versatility and affordability of the Cisco Business 220 Series family of switches provide an ideal business-class networking foundation for small businesses with limited IT support and budget.
- Wireless connectivity. With PoE+ support, and comprehensive security and Quality of Service (QoS) capabilities, Cisco Business 220 Series switches provide a solid foundation to add business-grade wireless to the network. You can easily deploy Cisco Business wireless access points to increase workforce productivity without worrying about power and throughput.
- Unified communications. The Cisco Business 220 Series switches provide QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco Business 220 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.
Specifiche
Data transmission
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 8192 voci |
| Number of queues | 8 |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
| Reset button | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
Multicast features
| Multicast MAC address table | 8192 voci |
| Multicast support | Yes |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 61.42 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
Performance
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Power
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
Security
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x/RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
Dettagli del prodotto
2026-04-13
Nuovo
Scheda tecnica
- Auto MDI/MDI-X
- Yes
- Memoria flash
- 64 MB
- Tasto reset
- Yes
- Registro evento di sistema
- Yes
- Controllo Broadcast storm
- Yes
- Numero di VLA
- 256
- Caratteristiche DHCP
- DHCP client
- Dissipazione del calore
- 61.42 BTU/h
- Protezione/Filtro BPDU
- Yes
- Routing IP
- Yes
- Anzahl der Warteschlangen
- 8
- Jumbo-Rahmen
- 9216
- MAC-Adresstabelle
- 8192 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Stromversorgung über Ethernet (PoE)
- No
- Verwaltungsprotokolle
- SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
- Algorithmen für die Warteschlangenplanung
- Weighted Round Robin (WRR)
- Authentifizierungsart
- IEEE 802.1x/RADIUS
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- MAC-Adressfilterung
- Yes
- Firmware aktualisierbar
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Paketpufferspeicher
- 4.1 MB
- Portspiegelung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Weiterleitungstarif
- 41.66 Mpps
- Schleifenschutz
- Yes
- Capacità di frenata
- 56 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- AC-Eingangsspannung
- 100 - 240 V
- Sicherheitsalgorithmen
- SNMP/SNMPv2/SNMPv3
- Eingebauter Prozessor
- Yes
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 50 °C
- Lagertemperatur (TT)
- -20 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 10 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Interner Speicher
- 256 MB
- Produktfarbe
- White
- Anzahl der SFP-Modulsteckplätze
- 4
- Head-of-Line (HOL)-Blockierung
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- Multicast-MAC-Adresstabelle
- 8192 Eintragungen
Riferimenti Specifici
- MPN
- CBS220-24T-4G-EU-RF
