Descrizione

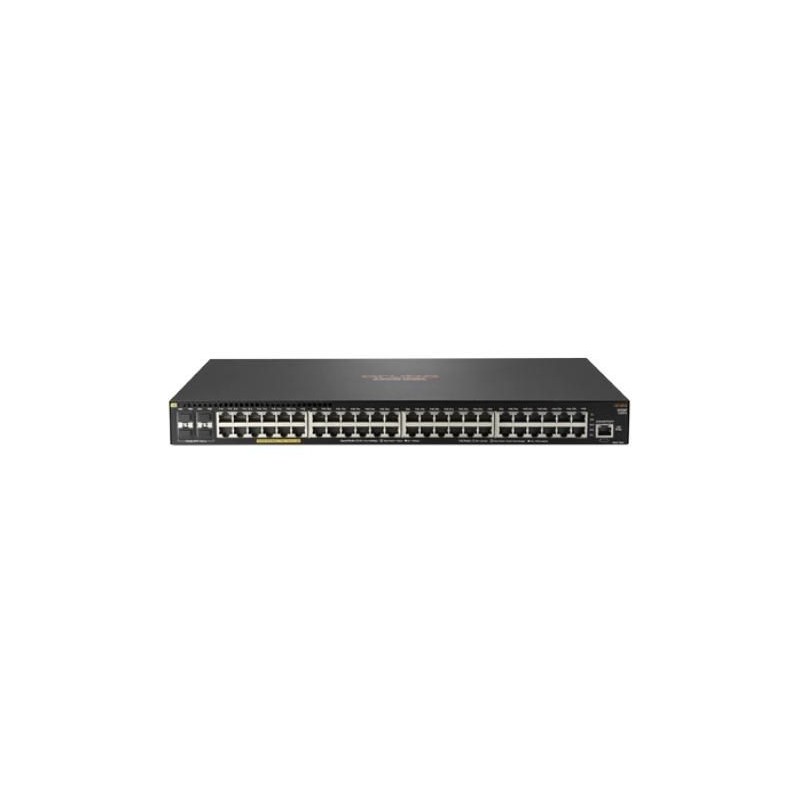

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and power so are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability
for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access
OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access
OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
- Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
- Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
- Software defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
Specifiche
Data transmission
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 1.6 µs |
| MAC address table | 32786 voci |
| Switching capacity | 176 Gbit/s |
| Throughput | 112 Mpps |
Design
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u |
Operational conditions
| Heat dissipation | 420.9 BTU/h |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 15 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Built-in processor | Yes |
| Flash memory | 4000 MB |
| Memory type | DDR3-SDRAM |
| Noise level | 55.1 dB |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/micro-USB |
| Installed SFP+ modules quantity | 4 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 9.2/ 4.9 A |
| Power consumption (max) | 980 W |
| Power consumption (typical) | 49.9 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 740 W |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Dettagli del prodotto
2 Articoli
Nuovo
Scheda tecnica
- Memoria flash
- 4000 MB
- Registro evento di sistema
- Yes
- Dissipazione del calore
- 420.9 BTU/h
- MAC-Adresstabelle
- 32786 Eintragungen
- Gestellmontage
- Yes
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Netzwerkstandards
- IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 48
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45/micro-USB
- Gesamtbudget für Power over Ethernet (PoE)
- 740 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Prozessormodell
- ARM Cortex-A9
- Prozessorfrequenz
- 1016 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- Durchsatz
- 112 Mpps
- Capacità di frenata
- 176 Gbit/s
- Formfaktor
- 1U
- Geräuschpegel
- 55.1 dB
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 49.9 W
- Eingangsstrom
- 9.2/ 4.9 A
- Speichertyp
- DDR3-SDRAM
- Eingebauter Prozessor
- Yes
- Stromverbrauch (max.)
- 980 W
- 10G-Unterstützung
- Yes
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 15 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 15 - 95 %
- Produktfarbe
- Black
- Anzahl der installierten SFP+-Module
- 4
- Latenz (1 Gbit/s)
- 3.8 µs
- Latenz (10 Gbit/s)
- 1.6 µs
Riferimenti Specifici
- MPN
- JL558AR
