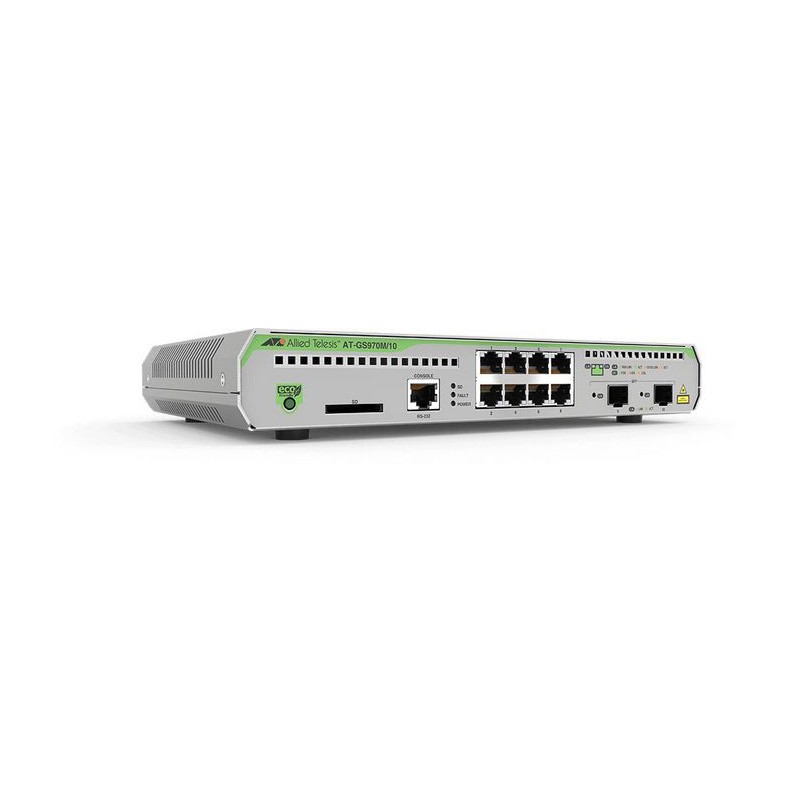

AT-GS970M/10PS-50
8 x 10/100/1000T POE+ ports and 2 x 100/1000X SFP ports, 124W POE capacity, Fixed one AC power supply, EU Power Cord
Descrizione
Managed Gigabit Edge Switches
The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
Specifiche
Data transmission
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 3.4 µs |
| Latency (10-100 Mbps) | 7.8 µs |
| MAC address table | 16000 voci |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Black/Grey |
| Rack mounting | Yes |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-TX/100BASE-TX/10BASE-T |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1AX/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 2048 |
| Virtual LAN features | Port-based VLAN/Private VLAN |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 55 BTU/h |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
Performance
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Memory type | DDR-SDRAM |
| Noise level | 33 dB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Installed SFP modules quantity | 2 |
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
Power
| Power consumption (max) | 16 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
Vendor information
| Brand Name | Allied Telesis |
| Warranty | 1 |
Dettagli del prodotto
2026-03-03
Nuovo
Scheda tecnica
- Memoria flash
- 64 MB
- Caratteristiche della LAN virtuale
- Port-based VLAN/Private VLAN
- Sicurezza
- FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1
- Numero di VLA
- 2048
- Dissipazione del calore
- 55 BTU/h
- Jumbo-Rahmen
- 10000
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L3
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-TX/100BASE-TX/10BASE-T
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1AX/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 8
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 8
- Stromversorgung über Ethernet (PoE)
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Durchsatz
- 14.9 Mpps
- Paketpufferspeicher
- 1.5 MB
- Capacità di frenata
- 20 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Geräuschpegel
- 33 dB
- Speichertyp
- DDR-SDRAM
- Stecker
- DC-in jack
- Betriebshöhe
- 0 - 3000 m
- Nichtbetriebshöhe
- 0 - 4000 m
- Stromverbrauch (max.)
- 16 W
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Brand Name
- Allied Telesis
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 50 °C
- Lagertemperatur (TT)
- -20 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 90 %
- Interner Speicher
- 256 MB
- Produktfarbe
- Black/Grey
- Anzahl der SFP-Modulsteckplätze
- 2
- Anzahl der installierten SFP-Module
- 2
- Latenz (1 Gbit/s)
- 3.4 µs
- Latenz (10-100 Mbit/s)
- 7.8 µs
Riferimenti Specifici
- Codice a barre UPC
- 767035211572
- MPN
- AT-GS970M/10PS-50
