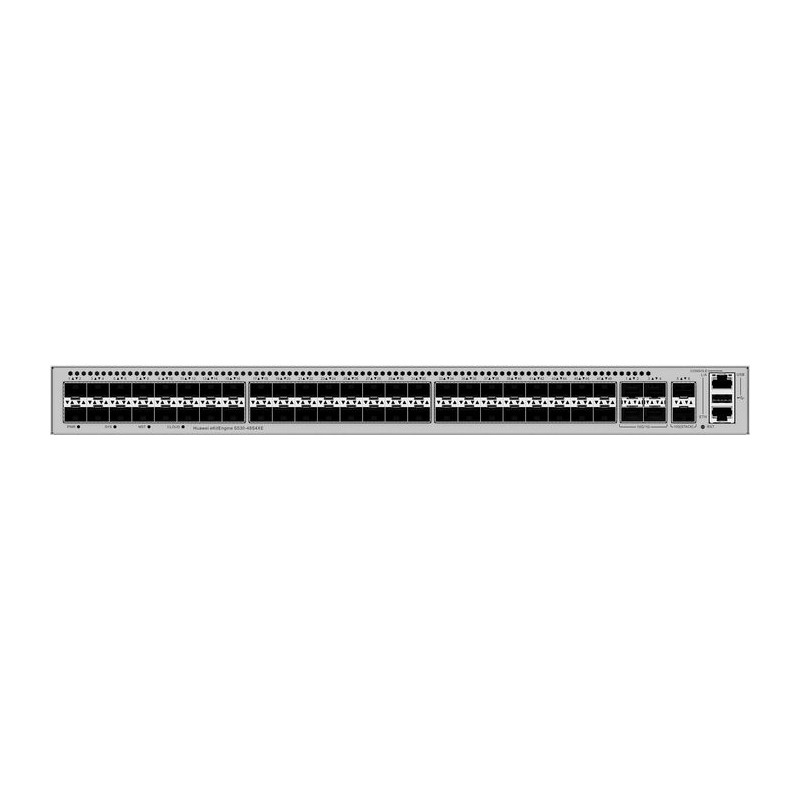

S530-48S4XE - 98012558
48*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, with 1*AC power module
Descrizione
Huawei eKitEngine S530
Series Switches
eKitEngine S530 series switches are developed based on next-generation high-performing hardware and software platform. eKitEngine S530 switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. eKitEngine S530 switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Series Switches
eKitEngine S530 series switches are developed based on next-generation high-performing hardware and software platform. eKitEngine S530 switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. eKitEngine S530 switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
- 48 x GE SFP ports, 4 x 10 GE SFP+ ports, 2 x 10 GE stack ports
- 1+1 power supply backup
- Forwarding performance: 168 Mpps
- Switching capacity: 224 Gbps
Specifiche
Data transmission
| Forwarding rate | 168 Mpps |
| MAC address table | 32000 voci |
| Packet forwarding | Yes |
| Static route | Yes |
| Switching capacity | 224 Gbit/s |
Design
| Airflow direction | Front-to-back airflow |
| Form factor | 1U |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Number of fans | 2 ventola(e) |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
Management features
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| iStack technology | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-T/10BASE-T |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| IP routing | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4094 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 246.69 BTU/h |
| Non-operating altitude | 0 - 5000 m |
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Power availability | 0.99999 W |
Performance
| Flash memory | 1000 MB |
| Internal memory | 2000 MB |
| Mean time between failures (MTBF) | 692075.7 h |
| Mean time to repair (MTTR) | 2 Hour |
| Noise level | 43.8 dB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| SFP module slots quantity | 48 |
| SFP+ module slots quantity | 4 |
| Uplink ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB Type-A ports quantity | 1 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 38 - 72 V |
| Input current | 6 A |
| Number of power supply units | 2 |
| Power consumption (max) | 130.05 W |
| Power consumption (typical) | 72.3 W |
| Power protection features | Surge protection |
| Power source | AC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Routing protocols | BGP/BGP4+/IS-IS/OSPF/OSPFv3/VRRP |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client/DHCP relay/DHCP snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
| SSH/SSL support | Yes |
Technical details
| Compliance certificates | Electromagnetic Compatibility (EMC) |
Vendor information
| Brand Name | HUAWEI eKit |
| Warranty | 3 |
Dettagli del prodotto
98012558
49 Articoli
Nuovo
Scheda tecnica
- Memoria flash
- 1000 MB
- Tasto reset
- Yes
- Numero di VLA
- 4094
- Caratteristiche DHCP
- DHCP client/DHCP relay/DHCP snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 snooping
- Dissipazione del calore
- 246.69 BTU/h
- Ispezione ARP
- Yes
- Routing IP
- Yes
- Instradamento statico
- Yes
- Gestito in Cloud
- Yes
- Direzione del flusso d'aria
- Front-to-back airflow
- MAC-Adresstabelle
- 32000 Eintragungen
- Anzahl Fans
- 2 Lüfter
- Gestellmontage
- Yes
- Ebene wechseln
- L3
- Schaltertyp
- Managed
- Verkehrsklassifizierung
- Yes
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-T/10BASE-T
- Link-Aggregation
- Yes
- Spanning-Tree-Protokoll
- Yes
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- No
- Konsolenport
- RJ-45
- Stromversorgung über Ethernet (PoE)
- No
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 1
- Routing-Protokolle
- BGP/BGP4+/IS-IS/OSPF/OSPFv3/VRRP
- Standorteinstellungen konfigurieren (CLI)
- Yes
- Portspiegelung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 4
- SSH/SSL-Unterstützung
- Yes
- Weiterleitungstarif
- 168 Mpps
- Schleifenschutz
- Yes
- Mean time between failures (MTBF)
- 692075.7 h
- Numero di porte Uplink
- 2
- Capacità di frenata
- 224 Gbit/s
- Compliance certificates
- Electromagnetic Compatibility (EMC)
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Geräuschpegel
- 43.8 dB
- Leistungsschutzfunktionen
- Surge protection
- Internationaler Schutzcode (IP).
- IP20
- AC-Eingangsfrequenz
- 50/60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 72.3 W
- Sicherheitsalgorithmen
- SNMP/SNMPv2/SNMPv3
- Eingangsstrom
- 6 A
- Stecker
- AC-in jack
- Betriebshöhe
- 0 - 5000 m
- Nichtbetriebshöhe
- 0 - 5000 m
- Stromverbrauch (max.)
- 130.05 W
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Gehäusematerial
- Metal
- DC-Eingangsspannung
- 38 - 72 V
- Energiequelle
- AC
- Brand Name
- HUAWEI eKit
- Warranty
- 3
- Betriebstemperatur (TT)
- -5 - 50 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Interner Speicher
- 2000 MB
- Produktfarbe
- Grey
- Anzahl Netzteile
- 2
- Anzahl der SFP-Modulsteckplätze
- 48
- USB Type-A ports quantity
- 1
- Stromverfügbarkeit
- 0.99999 W
- Paketweiterleitung
- Yes
- Mittlere Reparaturzeit (MTTR)
- 2 Hour
- iStack-Technologie
- Yes
Riferimenti Specifici
- ean13
- 6901443456246
- MPN
- S530-48S4XE
