78,5 CHF
tasse incl.
72,6 CHF
tasse escl.
Verrà ordinato per te
Riferimento: ST3450857SS
Marca: Seagate
ST3450857SS _ RFB
Seagate Cheetah 450GB 3.5, 450 GB, 15000 Giri/min, 16 MB, 3.5", SAS
56,2 CHF
tasse incl.
52,0 CHF
tasse escl.
In magazzino
Riferimento: 110900
Marca: Brady
M21-500-430
Polyester tape for M211 M210 BMP21-PLUS BMP21-LAB BMP21 Polyester
67,8 CHF
tasse incl.
62,7 CHF
tasse escl.
Verrà ordinato per te
Descrizione

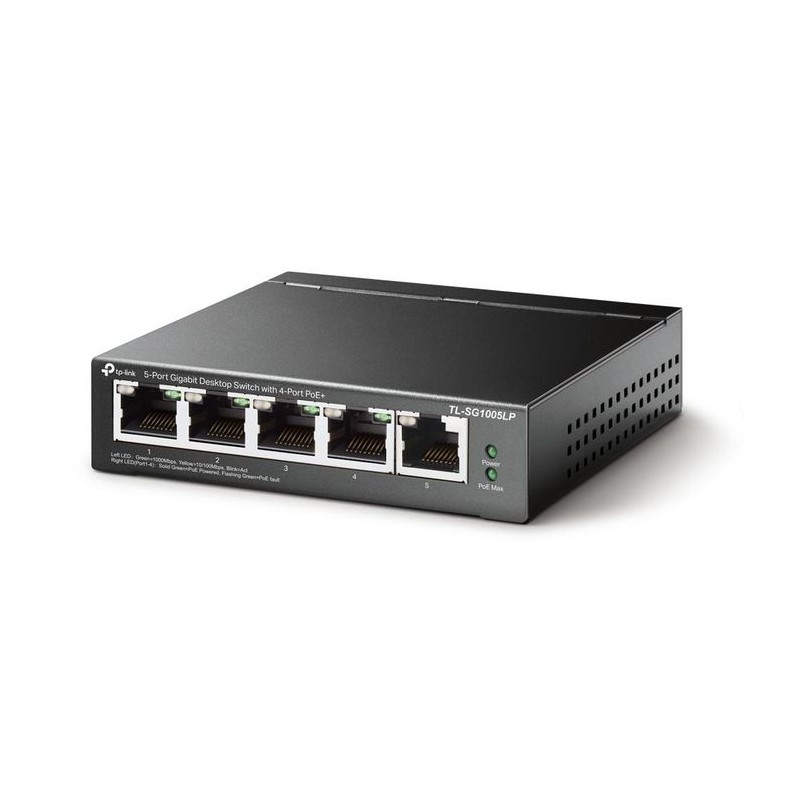

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports
- Plug and play, no configuration and installation required
Specifiche
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Data transmission
| Forwarding rate | 7.44 Mpps |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| MAC address table | 2000 voci |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
Design
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
| Wall mountable | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
Operational conditions
| Heat dissipation | 161.98 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| User guide | Yes |
Performance
| Fanless | Yes |
| Maximum cable length | 100 m |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 53.5 V |
| Input current | 0.81 A |
| Power consumption (max) | 47.5 W |
| Power source | DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 40 W |
Security
| IGMP snooping | Yes |
Sustainability
| Sustainability certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Sustainability compliance | Yes |
Vendor information
| Brand Name | Omada |
| Warranty | 5 |
Dettagli del prodotto
2025-12-18
Nuovo
Scheda tecnica
- Guida utente
- Yes
- Auto MDI/MDI-X
- Yes
- Impilabile
- No
- Dissipazione del calore
- 161.98 BTU/h
- lunghezza massima cavo
- 100 m
- an der Wand montierbar
- Yes
- Jumbo-Rahmen
- 16000
- MAC-Adresstabelle
- 2000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- No
- Schaltertyp
- Unmanaged
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Unterstützung der Flusskontrolle
- Yes
- Anzahl Gigabit Ethernet (Kupfer) Ports
- 5
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 5
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 4
- Gesamtbudget für Power over Ethernet (PoE)
- 40 W
- Stromversorgung über Ethernet (PoE)
- Yes
- IGMP-Schnüffelei
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Speichern und weiterleiten
- Yes
- Weiterleitungstarif
- 7.44 Mpps
- Capacità di frenata
- 10 Gbit/s
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- LED-Anzeigen
- Yes
- Zertifizierung
- FCC, CE, RoHS
- AC-Eingangsfrequenz
- 50/60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Nachhaltigkeitskonformität
- Yes
- Nachhaltigkeitszertifikate
- CE/Federal Communications Commission (FCC)/RoHS
- Eingangsstrom
- 0.81 A
- Stromverbrauch (max.)
- 47.5 W
- 10G-Unterstützung
- No
- DC-Eingangsspannung
- 53.5 V
- Energiequelle
- DC/PoE
- Brand Name
- Omada
- Warranty
- 5
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- Unterstützte Kabeltypen
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Auto-Negotiation
- Yes
- Lüfterlos
- Yes
- Automatisches Lernen von MAC-Adressen wird unterstützt
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- Auto-Aging von MAC-Adressen wird unterstützt
- Yes
Riferimenti Specifici
- isbn
- 978-1-23456-789-0
- ean13
- 6935364052737
- MPN
- TL-SG1005LP
