Nuovo

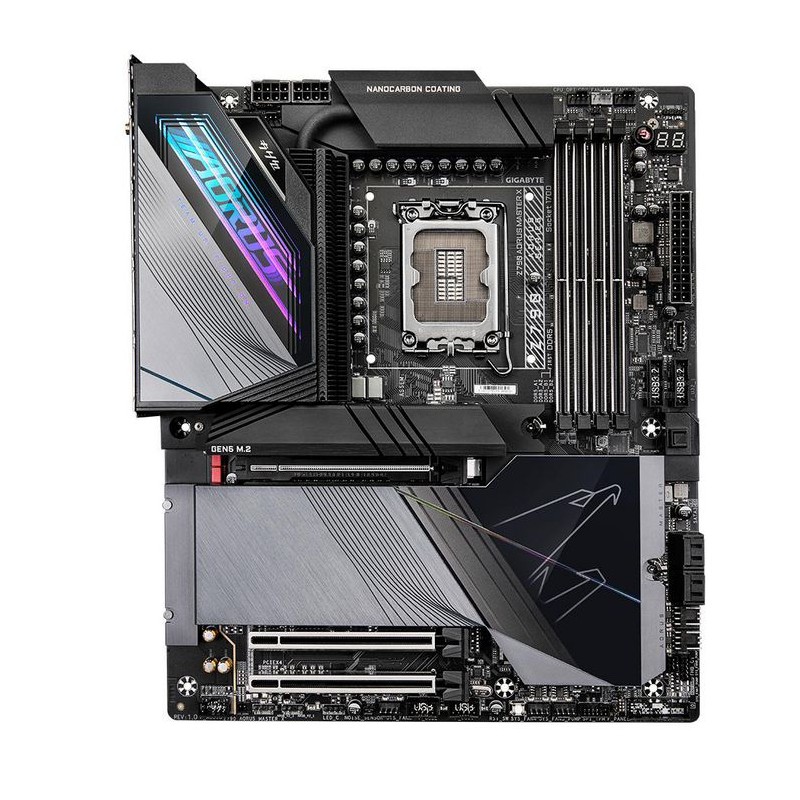

Z790_AORUS_MASTER_X

Name: Z790_AORUS_MASTER_X
Brand: Gigabyte
SKU: 2546725
Price: 562.4 CHF
Availability: BackOrder

Marca Gigabyte

Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2

562,4 CHF

Tasse incluse

520,3 CHF Tasse escluse

Consegna ritardata

Quantità

Verrà ordinato per te

Documents et médias

Documents 1

manual pdf .pdf

User manual

Télécharger

Vidéos 1

video/mp4

Voir la vidéo

Descrizione
Dettagli del prodotto

Descrizione

Introducing the GIGABYTE Z790 AORUS MASTER X Motherboard, meticulously designed for gaming and content creation. The motherboard supports the 13th Gen and the next-gen Intel Core processors, featuring an LGA 1700 socket. It delivers an advanced VRM design, efficient thermal management, PCIe 5.0 support, seamless DDR5 compatibility, and EZ-latch features for screwless installments. With its cutting-edge technology and user-friendly design, the Z790 AORUS MASTER X sets new standards for high-performance computing, ensuring optimal performance and easy maintenance for PC enthusiasts.

LGA 1700: Supports Intel Core 13th and next-gen processors
Digital direct 20+1+2 phases VRM solution
Full support up to DDR5-8266
1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
DIY-Friendly Design: Quick Release & Screwless Design for M.2 modules and graphics card

Specifiche

Battery

Battery weight	3 g
Number of battery cells	1

BIOS

ACPI version	5.0
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7

Expansion slots

Number of M.2 (M) slots	5
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 5.x) slots	1

Features

Audio chip	Realtek ALC1220-VB
Audio output channels	7.1 canali
Component for	PC
Motherboard chipset	Intel Z790 Express
Motherboard chipset family	Intel
Motherboard form factor	Extended ATX
PC health monitoring	Fan/Noise/Temperature/Voltage/Water cooling
Product colour	Black
Windows operating systems supported	Windows 11 x64

Graphics

DirectX version	12.0
Discrete graphics support	Yes
HDCP	Yes
Maximum resolution	4096 x 2304 Pixel
Parallel processing technology support	Not supported

Internal I/O

12V power connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of chassis fan connectors	8
Number of SATA III connectors	4
RGB LED pin header	Yes
Thunderbolt headers	2
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1

Logistics data

Products per shipping (inner) case

1 pz

Memory

ECC	Yes
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Non-ECC	Yes
Number of memory slots	4
Supported memory clock speed (max)	8266 MHz
Supported memory clock speeds	4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes

Network

Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Marvell AQtion AQC113C
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)

Packaging content

Antenna included	Yes
Batteries included	Yes
Bundled software	LAN bandwidth management software/Norton® Internet Security (OEM version)
Cables included	SATA

Processor

Compatible processor series	Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum internal memory supported by processor	192 GB
Maximum number of SMP processors	1
Processor manufacturer	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700

Rear panel I/O ports

Digital audio optical out	1
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	2
USB connector type	USB Type-A/USB Type-C
VGA (D-Sub) ports quantity	0
WiFi-AP antenna jack	2

Storage controllers

Number of HDDs supported	4
Number of storage drives supported	9
RAID levels	0/1/10/5
RAID support	Yes
Supported storage drive interfaces	M.2/SATA III
Supported storage drive types	HDD & SSD

Technical details

Warranty period

3 anno/i

Vendor information

Brand Name	Gigabyte
Warranty	1

Dettagli del prodotto

Disponibile dal: 2025-12-24

Condizione Nuovo

Scheda tecnica

Data Integrity Check (verifica integrità dati): Yes
Peso della batteria: 3 g
HDCP: Yes
Connettori USB 3.2 Gen 1 (3.1 Gen 1): 2
Connettori USB 3.2 Gen 2 (3.1 Gen 2): 1
Numero di slot di M.2 (M): 5
Tipo BIOS: UEFI AMI
Versione ACPI: 5.0
Porta uscita S/PDIF: Yes
Connettore TPM: Yes
Chip audio: Realtek ALC1220-VB
Dimensione memoria BIOS: 256 Mbit
Connettore LED RGB: Yes
Spinotto antenna WiFi-AP: 2
Batterien enthalten: Yes
Anzahl der HDMI-Anschlüsse: 0
Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse: 4
Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-C Anschlüsse: 1
Ethernet-LAN-Anschlüsse (RJ-45): 1
DisplayPort-Version: 1.2
Unterstützung der Parallelverarbeitungstechnologie: Not supported
Anzahl der USB 2.0-Anschlüsse: 0
Ethernet-Schnittstellentyp: 10 Gigabit Ethernet
Wi-Fi standard: Wi-Fi 7 (802.11be)
Durata della garanzia: 3 Jahr(e)
Bluetooth: Yes
Wi-Fi: Yes
Kabel enthalten: SATA
Ethernet-LAN: Yes
Wi-Fi-Standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)
Bluetooth-Version: 5.3
Maximum Auflösung: 4096 x 2304 Pixel
Mikrofon rein: Yes
Kompatible Prozessorserien: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum interner Speicher, der vom Prozessor unterstützt wird: 192 GB
Speicherkanäle: Dual-channel
Prozessorsockel: LGA 1700
Motherboard-Chipsatz: Intel Z790 Express
Motherboard-Chipsatzfamilie: Intel
Motherboard-Formfaktor: Extended ATX
Anzahl der Speicherplätze: 4
Typ der Speichersteckplätze: DIMM
Unterstützte Speichertaktraten: 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266 MHz
Unterstützte Speichertypen: DDR5-SDRAM
Prozessorhersteller: Intel
Anzahl der unterstützten Festplatten: 4
Maximum interner Speicher: 192 GB
RAID-Unterstützung: Yes
Unterstützte Prozessorsockel: LGA 1700
DirectX-Version: 12.0
Anzahl der unterstützten Speicherlaufwerke: 9
Anzahl der DVI-D-Anschlüsse: 0
LAN-Controller: Marvell AQtion AQC113C
Unterstützte Speicherlaufwerkstypen: HDD & SSD
Produkte pro (innerem) Versandkarton: 1 Stück(e)
Kopfhörerausgänge: 1
USB-Anschlusstyp: USB Type-A/USB Type-C
Anzahl der Batteriezellen: 1
Anzahl der VGA (D-Sub) Anschlüsse: 0
Brand Name: Gigabyte
Warranty: 1
Komponente für: PC
Unterstützte Windows-Betriebssysteme: Windows 11 x64
RAID-Level: 0/1/10/5
Unterstützte Speicherlaufwerkschnittstellen: M.2/SATA III
Produktfarbe: Black
Audio-Ausgangskanäle: 7.1 Kanäle
Optischer Ausgang für digitales Audio: 1
PCI-Express-x16-Steckplätze (Gen 3.x): 2
USB 2.0-Anschlüsse: 2
ECC сompatibility: ECC & Non-ECC
Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-C Anschlüsse: 0
Menge USB 3.2 Gen 2x2 Typ-C Anschlüsse: 2
Gebündelte Software: LAN bandwidth management software/Norton® Internet Security (OEM version)
Anschluss für CPU-Lüfter: Yes
Anzahl der SATA III-Anschlüsse: 4
Unterstützte Speichertaktgeschwindigkeit (max.): 8266 MHz
12V Stromanschluss: Yes
Anzahl der Gehäuselüfteranschlüsse: 8
ATX-Stromanschluss (24-polig): Yes
Audioanschluss auf der Vorderseite: Yes
EPS-Stromanschluss (8-polig): Yes
Frontplattenanschluss: Yes
Ungepufferter Speicher: Yes
Inklusive Antenne: Yes
DisplayPorts Anzahl: 1
Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-A Anschlüsse: 7
PCI-Express-x16-Steckplätze (Gen 5.x).: 1
Thunderbolt-Header: 2
Nicht-ECC: Yes
Schaltfläche CMOS löschen: Yes
System Management BIOS (SMBIOS)-Version: 2.7
Überwachung des PC-Zustands: Fan/Noise/Temperature/Voltage/Water cooling
Diskrete Grafikunterstützung: Yes
Maximum Anzahl von SMP-Prozessoren: 1
CMOS-Jumper löschen: Yes
Desktop Management Interface (DMI)-Version: 2.7
