234,6 CHF
tasse incl.
217,0 CHF
tasse escl.
In magazzino
106,8 CHF
tasse incl.
98,8 CHF
tasse escl.
In magazzino

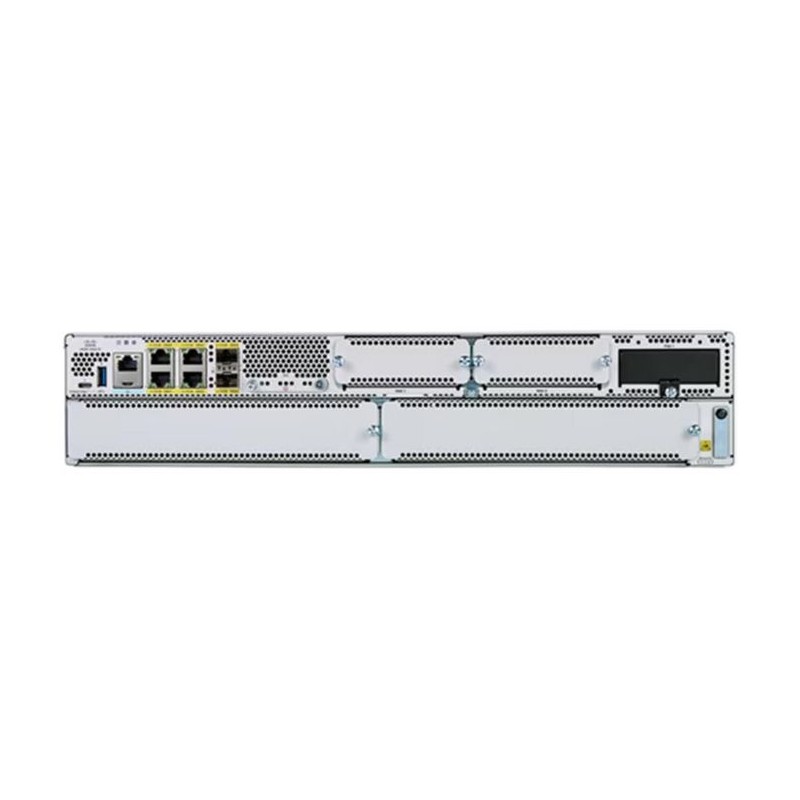

C8300-2N2S-4T2X
2RU platform, 2 SM slot, 2 NIM slot plus, 2 x 10Gbps, 4 x 1Gbps embedded Layer3 Ethernet ports
Descrizione
Cisco Catalyst 8300 Series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 Series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
Specifiche
Design
| LED indicators | Yes |
| Product colour | Grey |
| Rack capacity | 2U |
| Rack mounting | Yes |
Features
| Flash memory | 8192 MB |
| Internal memory | 8192 MB |
| Internal memory type | DDR4 |
| Internal storage capacity | 16 GB |
| Maximum memory card size | 32 GB |
| Mean time between failures (MTBF) | 710300 h |
| Processor manufacturer | Intel |
| Storage media | SSD |
Management features
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Network
| Ethernet interface type | 10 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN data rates | 100/1000/10000 Mbit/s |
| Networking standards | IEEE 802.1ag/IEEE 802.1Q/IEEE 802.3ah |
Operational conditions
| Operating altitude | 0 - 3050 m |
| Operating relative humidity (H-H) | 5 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| SFP+ module slots quantity | 2 |
| USB ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Power
| AC input voltage | 85 - 264 V |
| Power source type | AC |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Routing protocols | BGP/EIGRP/HSRP/IP/IS-IS/LISP/MPLS/OSPF/OSPFv3/RIP/RIP-2/VRRP |
| Switching protocols | MPLS |
Security
| Access Control List (ACL) | Yes |
| Authentication method | AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit) |
| Firewall | Yes |
| Network address translation (NAT) | Yes |
| Security algorithms | 128-bit AES/2048-bit RSA/256-bit AES/256-bit AES-XTS/3DES/DES/MD5/SHA-1/SHA-2/SHA-256/SHA-384/SHA-512 |
| URL filtering | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| SFP WAN | Yes |
| SIM card slot | No |
Dettagli del prodotto
2026-04-27
Nuovo
Scheda tecnica
- Capacità memoria interna
- 16 GB
- Memoria flash
- 8192 MB
- WAN Ethernet
- Yes
- Server DHCP
- Yes
- Sicurezza firewall
- Yes
- Filtraggio URL
- Yes
- Cliente DHCP
- Yes
- Gestellmontage
- Yes
- Webbasierte Verwaltung
- Yes
- Ethernet-LAN-Datenraten
- 100/1000/10000 Mbit/s
- Netzwerkstandards
- IEEE 802.1ag/IEEE 802.1Q/IEEE 802.3ah
- Zugriffskontrollliste (ACL)
- Yes
- Ethernet-LAN-Anschlüsse (RJ-45)
- 4
- Quality of Service (QoS)-Unterstützung
- Yes
- Routing-Protokolle
- BGP/EIGRP/HSRP/IP/IS-IS/LISP/MPLS/OSPF/OSPFv3/RIP/RIP-2/VRRP
- Authentifizierungsmethode
- AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit)
- Netzwerkadressübersetzung (NAT)
- Yes
- Ethernet-Schnittstellentyp
- 10 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
- SIM-Kartensteckplatz
- No
- Anzahl der SFP+-Modulsteckplätze
- 2
- Mean time between failures (MTBF)
- 710300 h
- LED-Anzeigen
- Yes
- AC-Eingangsspannung
- 85 - 264 V
- Stromquellentyp
- AC
- Sicherheitsalgorithmen
- 128-bit AES/2048-bit RSA/256-bit AES/256-bit AES-XTS/3DES/DES/MD5/SHA-1/SHA-2/SHA-256/SHA-384/SHA-512
- Maximum Speicherkartengröße
- 32 GB
- Prozessorhersteller
- Intel
- USB-Version
- 3.2 Gen 1 (3.1 Gen 1)
- Betriebshöhe
- 0 - 3050 m
- Anzahl der USB-Anschlüsse
- 2
- Interner Speichertyp
- DDR4
- Rack-Kapazität
- 2U
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 85 %
- Interner Speicher
- 8192 MB
- Produktfarbe
- Grey
- Speichermedium
- SSD
- 3G/4G-USB-Modem-Kompatibilität
- No
- DSL WAN
- Yes
- Protokolle wechseln
- MPLS
- IPv4- und IPv6-Funktionen
- IPv4/IPv6 access-control list (ACL)
- SFP WAN
- Yes
Riferimenti Specifici
- MPN
- C8300-2N2S-4T2X
