CDE8630 - VS19116

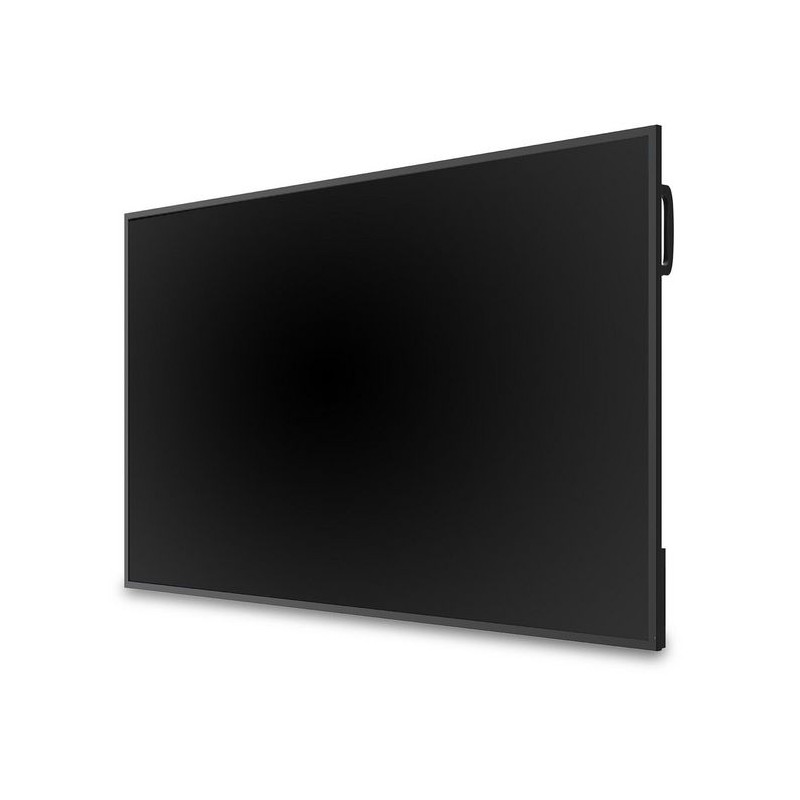

CDE8630 - 86" 4K (UHD) LED Signage & Presentation Display, Landscape or Portrait, 24/7
Descrizione
Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE8630 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast™ screen sharing software and the myViewBoard® Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What’s more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player.
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Flexible Installation
With landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.
Advanced Multi-Source Capability
Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.
Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Flexible Installation
With landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.
Advanced Multi-Source Capability
Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.
Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license
- Multiple Ways To Connect And Share Content
- AV Control System Interoperability
- Centralized Control Device Management
- Reliable 24/7 Operation Rating
- Superb And Stunning Picture Quality
- Powerful Secured Embedded Platform
Specifiche
Audio
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Certificates
| Certification | cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy |
Computer system
| Built-in processor | Yes |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| On-board graphics card model | ARM Mali-G52 |
| Operating system installed | Android 11 |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
Design
| Anti-glare screen | Yes |
| Bezel width (bottom) | 1.5 cm |
| Bezel width (side) | 1.5 cm |
| Bezel width (top) | 1.5 cm |
| Mounting type | Wall |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 800 x 400 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| Screen shape | Flat |
| VESA mounting | Yes |
Display
| Contrast ratio (dynamic) | 5000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 450 cd/m² |
| Display diagonal | 86 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 Pixel |
| Haze rate | 25 % |
| HD type | 4K Ultra HD |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel life | 50000 h |
| Panel type | ADS |
| Response time | 8 ms |
| Surface hardness | 3H |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Features
| Display technology | LCD |
Logistics data
| Pallet gross height | 135.6 cm |
| Pallet gross length | 114 cm |
| Pallet gross width | 214 cm |
| Products per master (outer) case | 5 pz |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
Other features
| Quick start guide | Yes |
Packaging content
| Batteries included | Yes |
| Cables included | AC/HDMI/USB Type-C |
| Mounting kit | Yes |
| Remote control included | Yes |
Performance
| HDCP | Yes |
| HDCP version | 2.2 |
| Operating hours (hours/days) | 24/7 |
| Purpose | Universal |
Ports & interfaces
| DisplayPorts quantity | 0 |
| DVI port | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0/2.1 |
| OPS module slot | Yes |
| RS-232 interface | Yes |
| USB connector type | USB Type-A/USB Type-C |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Wi-Fi | No |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 318 kWh |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Power consumption (max) | 510 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 365 W |
Technical details
| OPS slot | 1 |
Vendor information
| Brand Name | ViewSonic |
| Warranty | 3 |
Weight & dimensions
| Display depth | 8.16 cm |
| Display height | 110.1 cm |
| Display weight | 43200 g |
| Display width | 193.08 cm |
Dettagli del prodotto
VS19116
1 Articolo
Nuovo
Scheda tecnica
- Tipo di pannello
- ADS
- Capacità memoria interna
- 32 GB
- Telecomando portatile
- Yes
- HDCP
- Yes
- Rapporto d'aspetto nativo
- 16:9
- Tempo di risposta
- 8 ms
- Schermo antiriflesso
- Yes
- Rapporto di contrasto (dinamico)
- 5000:1
- Percentuale di offuscamento
- 25 %
- Durezza della superficie
- 3H
- Classe di efficienza energetica (SDR)
- G
- Design del prodotto
- Digital signage flat panel
- Ampiezza del filetto (inferiore)
- 1.5 cm
- Ampiezza del filetto (superiore)
- 1.5 cm
- Sistema del computer
- Yes
- Slot OPS
- 1
- Bildschirmhelligkeit
- 450 cd/m²
- Display-Technologie
- LCD
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Anzahl der eingebauten Lautsprecher
- 2
- RMS-Nennleistung
- 20 W
- Betriebssystem installiert
- Android 11
- Integriertes Grafikkartenmodell
- ARM Mali-G52
- Prozessorkerne
- 4
- Blendenbreite (Seite)
- 1.5 cm
- Orientierung
- Horizontal/Vertical
- Schnittstelle für Schalttafeleinbau
- 800 x 400 mm
- VESA-Montage
- Yes
- Anzahl der Farben anzeigen
- 1.07 billion colours
- Betrachtungswinkel horizontal
- 178 °
- Betrachtungswinkel, vertikal
- 178 °
- Kontrastverhältnis (typisch)
- 1200:1
- Batterien enthalten
- Yes
- Betriebsstunden (Stunden/Tage)
- 24/7
- Anzahl der HDMI-Anschlüsse
- 3
- Anzahl der HDMI-Ausgangsanschlüsse
- 1
- Anzahl der HDMI-Eingangsanschlüsse
- 2
- DVI-Anschluss
- No
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- RS-232-Schnittstelle
- Yes
- DisplayPorts Menge
- 0
- Prozessorfrequenz
- 1.5 GHz
- Montage Kits
- Yes
- Schnellstartanleitung
- Yes
- Wi-Fi
- No
- Kabel enthalten
- AC/HDMI/USB Type-C
- USB-Anschluss
- Yes
- Ethernet-LAN
- Yes
- Platzierung unterstützt
- Indoor
- Zertifizierung
- cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 365 W
- Eingebauter Prozessor
- Yes
- Bruttobreite der Palette
- 214 cm
- Bruttohöhe der Palette
- 135.6 cm
- Bruttolänge Palette
- 114 cm
- USB-Version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- Stromverbrauch (Standby)
- 0.5 W
- Produkte pro Master (Außen)-Case
- 5 Stück(e)
- Anzahl der USB-Anschlüsse
- 3
- Stromverbrauch (max.)
- 510 W
- Berührungssensitiver Bildschirm
- No
- Bildschirmauflösung
- 3840 x 2160 Pixel
- Diagonale anzeigen
- 86 "
- LED-Hintergrundbeleuchtung
- Direct-LED
- Befestigungsart
- Wall
- USB-Anschlusstyp
- USB Type-A/USB Type-C
- HDMI-Version
- 2.0/2.1
- HDCP-Version
- 2.2
- HD-Typ
- 4K Ultra HD
- Brand Name
- ViewSonic
- Warranty
- 3
- Betriebstemperatur (TT)
- 0 - 40 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 20 - 80 %
- Zweck
- Universal
- Interner Speicher
- 4 GB
- Produktfarbe
- Black
- Eingebaute(r) Lautsprecher
- Yes
- Energieeffizienz-Skala
- A to G
- Energieverbrauch (SDR) pro 1000 Stunden
- 318 kWh
- Screen shape
- Flat
- Anzeigebreite
- 193.08 cm
- Gewicht anzeigen
- 43200 g
- Höhe anzeigen
- 110.1 cm
- Tiefe anzeigen
- 8.16 cm
- Computersystemtyp
- System on Chip (SoC)
- Native Aktualisierungsrate
- 60 Hz
- Panel-Leben
- 50000 h
- Steckplatz für OPS-Modul
- Yes
Riferimenti Specifici
- Codice a barre UPC
- 766907017502
- ean13
- 0766907017502
- MPN
- CDE8630
16 altri prodotti della stessa categoria:
12.350,3 CHF
tasse incl.
11.424,9 CHF
tasse escl.
Verrà ordinato per te
Marca: iiyama
LH5075UHS-B1AG
iiyama LH5075UHS-B1AG, Pannello piatto per segnaletica digitale, 125,7 cm (49.5"), LCD, 3840 x 2160 Pixel, Wi-Fi, 24/7
816,7 CHF
tasse incl.
755,5 CHF
tasse escl.
Ultimi articoli in magazzino
Riferimento: QM32C
Marca: Samsung
LH32QMCEPGCXEN
Samsung QM32C, Pannello piatto per segnaletica digitale, 81,3 cm (32"), LCD, 1920 x 1080 Pixel, Wi-Fi, 24/7
409,9 CHF
tasse incl.
379,2 CHF
tasse escl.
In magazzino
Marca: Philips
55BDL4511D/00
Philips 55BDL4511D/00, Pannello A digitale, 139,7 cm (55"), 3840 x 2160 Pixel, 24/7
674,7 CHF
tasse incl.
624,1 CHF
tasse escl.
In magazzino
19.434,2 CHF
tasse incl.
17.978,0 CHF
tasse escl.
Verrà ordinato per te
Riferimento: VS20770
Marca: ViewSonic
CDE86G3-1C
Viewsonic CDE86G3-1C, Pannello piatto per segnaletica digitale, 2,18 m (86"), LCD, 3840 x 2160 Pixel, 24/7
1.672,6 CHF
tasse incl.
1.547,3 CHF
tasse escl.
Verrà ordinato per te
Marca: iiyama
LH4365UHSB-B1
iiyama LH4365UHSB-B1, Design chiosco, 108 cm (42.5"), LED, 3840 x 2160 Pixel, Wi-Fi, 24/7
635,4 CHF
tasse incl.
587,8 CHF
tasse escl.
In magazzino
Marca: iiyama
LH3241S-B2
iiyama LH3241S-B2, Design chiosco, 80 cm (31.5"), LED, 1920 x 1080 Pixel, 24/7
313,2 CHF
tasse incl.
289,7 CHF
tasse escl.
In magazzino
Marca: iiyama
LH5575UHS-B2AG
iiyama LH5575UHS-B2AG, Pannello piatto per segnaletica digitale, 138,7 cm (54.6"), LCD, 3840 x 2160 Pixel, Wi-Fi, 24/7
857,3 CHF
tasse incl.
793,1 CHF
tasse escl.
In magazzino
Marca: Philips
43BDL4511D/00
Philips 43BDL4511D/00, Pannello A digitale, 109,2 cm (43"), 3840 x 2160 Pixel, 24/7
532,5 CHF
tasse incl.
492,6 CHF
tasse escl.
Ultimi articoli in magazzino
Marca: Philips
50BDL3117P/00
Philips 50BDL3117P/00, 127 cm (50"), 3840 x 2160 Pixel, 4K Ultra HD, LCD, Nero
725,4 CHF
tasse incl.
671,0 CHF
tasse escl.
Verrà ordinato per te
Marca: iiyama
LH7564UHS-B1AG
iiyama LH7564UHS-B1AG, Pannello piatto per segnaletica digitale, 190,5 cm (75"), 3840 x 2160 Pixel, Wi-Fi, 24/7
1.308,1 CHF
tasse incl.
1.210,1 CHF
tasse escl.
In magazzino
1.918,1 CHF
tasse incl.
1.774,4 CHF
tasse escl.
Verrà ordinato per te
Marca: iiyama
LH6560UHS-B2AG
iiyama LH6560UHS-B2AG, Pannello A digitale, 165,1 cm (65"), LED, 3840 x 2160 Pixel, Wi-Fi, 24/7
956,7 CHF
tasse incl.
885,0 CHF
tasse escl.
In magazzino
Marca: iiyama
LH8675UHS-B2AG
iiyama LH8675UHS-B2AG, Pannello piatto per segnaletica digitale, 2,17 m (85.6"), LCD, 3840 x 2160 Pixel, Wi-Fi, 24/7
2.149,5 CHF
tasse incl.
1.988,4 CHF
tasse escl.
Verrà ordinato per te
Potrebbe anche piacerti
74,9 CHF
tasse incl.
69,3 CHF
tasse escl.
Verrà ordinato per te
32,1 CHF
tasse incl.
29,7 CHF
tasse escl.
In magazzino
201,5 CHF
tasse incl.
186,4 CHF
tasse escl.
In magazzino
108,1 CHF
tasse incl.
100,0 CHF
tasse escl.
In magazzino
Riferimento: VS18758
Marca: ViewSonic
VB-WIFI-001
Viewsonic VB-WIFI-001, Wireless, USB, WLAN / Bluetooth, Wi-Fi 6 (802.11ax), Nero
124,6 CHF
tasse incl.
115,3 CHF
tasse escl.
Verrà ordinato per te
CDE8630 - 86" 4K (UHD) LED Signage & Presentation Display, Landscape or Portrait, 24/7
