Descrizione

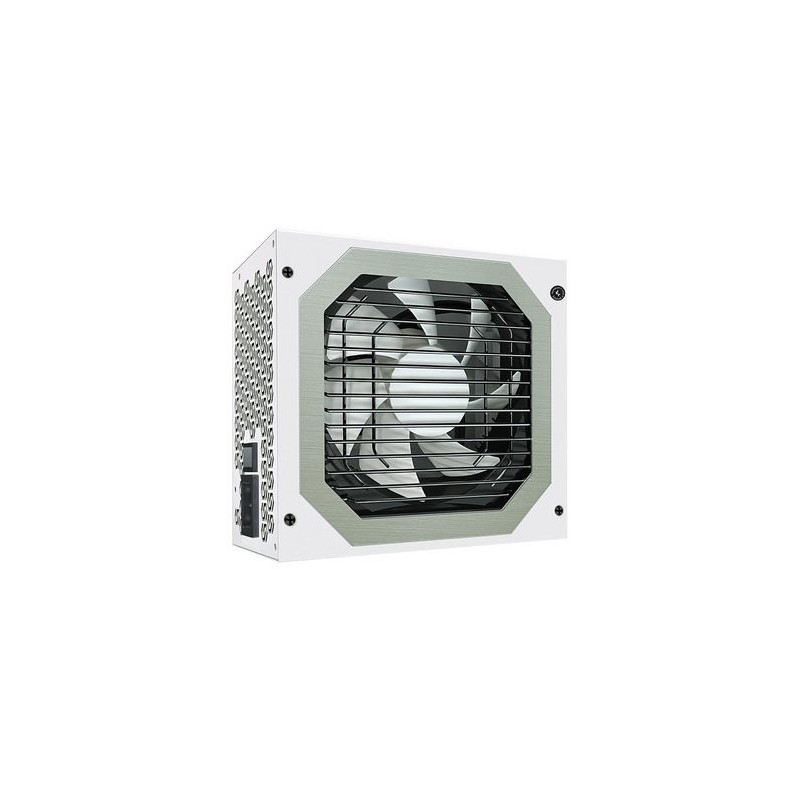

The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
- 80 PLUS® GOLD certified - Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
Specifiche
Design
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 ventola(e) |
| On/off switch | Yes |
| Product colour | White |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Cables included | PCIe/Peripheral (Molex)/SATA |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Certification | CE, CB, CCC, EAC, FCC, KCC, RCM, RoHs |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 150/550 mm |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Efficiency | 90 % |
| Hold time | 16 ms |
| Input current | 10 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Overcharge/Short circuit/Under voltage |
| Total power | 750 W |
Vendor information
| Brand Name | DeepCool |
| Warranty | 1 |
