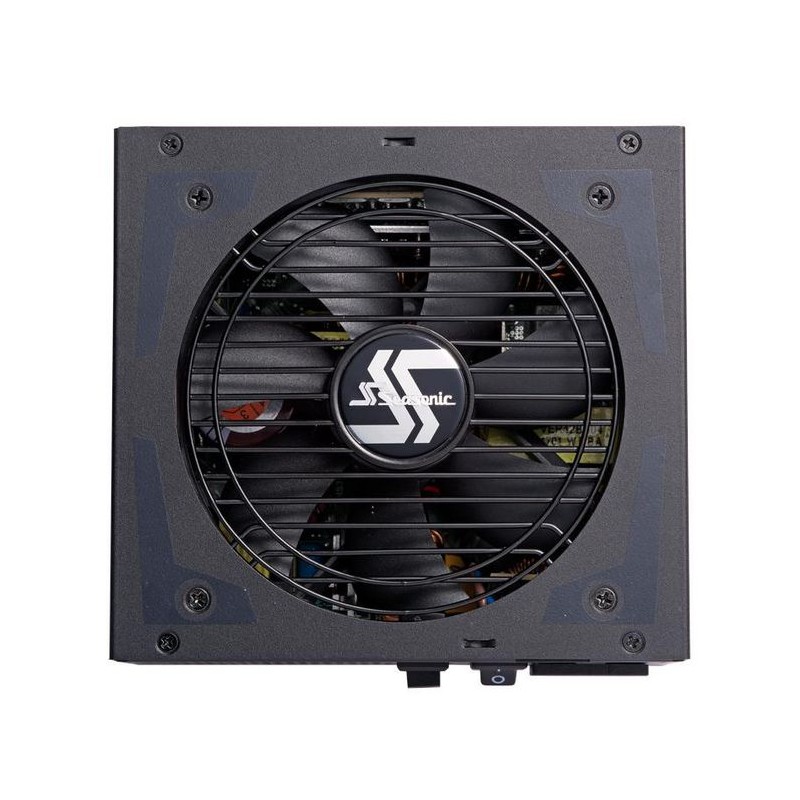

SSR-650PX

Name: SSR-650PX
Brand: Seasonic
SKU: 2278228
Price: 211 CHF
Availability: BackOrder

Marca Seasonic

650 W, 100-240 V, 50/60 Hz, ATX 12 V, 150x140x86 mm

211,0 CHF

Tasse incluse

195,2 CHF Tasse escluse

Consegna ritardata

Quantità

Verrà ordinato per te

Descrizione
Dettagli del prodotto

Descrizione

The FOCUS+ Platinum 650 watt unit is a power supply not to be missed for its great features and high quality. It has a small form factor coupled with a flexible cable installation solution that is perfect for those who care about the appearance of their builds and want to save space on the inside of their case. This unit is equipped with Fluid Dynamic Bearing fans that offer low-noise performance and have a long-life fan. Seasonic is confident in its products and offers a generous 10-year Global Warranty for the FOCUS+ Platinum 650.

Specifiche

Certificates

Certification	cULus, TUV, CB, CCC, BSMI, EAC, RCM, WEEE, ErP Lot 6, REACH
Compliance certificates	RoHS

Design

Fan diameter	12 cm
Fan location	Top
Number of fans	1 ventola(e)
On/off switch	Yes
Product colour	Black

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Performance

80 PLUS certification	80 PLUS Platinum
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC

Ports & interfaces

ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
CPU power cable length	65 cm
CPU power connector (4+4 pin)	Yes
Floppy disk drive cable length	10.1 cm
Floppy disk drive connector	Yes
Floppy drive power connector	1
Motherboard power cable length	61 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
PCI Express connector	Yes
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power connectors (4-pin)	3

Power

AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	648 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	15 W
Efficiency	89 %
Input current	9 - 4.5 A
Max output current (-12V)	0.3 A
Max output current (+12V)	54 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Power Factor Correction (PFC) type	Active
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power	650 W

Technical details

Sustainability certificates

ENERGY STAR

Vendor information

Brand Name	Seasonic
Warranty	1

Dettagli del prodotto

Disponibile dal: 2025-12-01

Condizione Nuovo

Scheda tecnica

Lunghezza del cavo dell'unità del disco floppy: 10.1 cm
Anzahl Fans: 1 Lüfter
Ein / Aus Schalter: Yes
Mean time between failures (MTBF): 100000 h
Compliance certificates: RoHS
Leistungsschutzfunktionen: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Zertifizierung: cULus, TUV, CB, CCC, BSMI, EAC, RCM, WEEE, ErP Lot 6, REACH
AC-Eingangsfrequenz: 50 - 60 Hz
AC-Eingangsspannung: 100 - 240 V
Nachhaltigkeitszertifikate: ENERGY STAR
Verkabelungstyp: Fully-Modular
Totale Kraft: 650 W
Typ mit Leistungsfaktorkorrektur (PFC): Active
Eingangsstrom: 9 - 4.5 A
Max. Ausgangsstrom (+12 V): 54 A
Max. Ausgangsstrom (+3,3 V): 20 A
Max. Ausgangsstrom (+5 V): 20 A
Maximaler Ausgangsstrom (-12 V): 0.3 A
Netzteil-Formfaktor (PSU): ATX
Effizienz: 89 %
Lüfterdurchmesser: 12 cm
Motherboard-Stromanschluss: 20+4 pin ATX
80 PLUS-Zertifizierung: 80 PLUS Platinum
Max. Ausgangsstrom (+5 Vsb): 3 A
Anschluss für Diskettenlaufwerk: Yes
Anzahl der SATA-Stromanschlüsse: 8
Peripherie (Molex) Stromanschlüsse (4-polig): 3
Brand Name: Seasonic
Warranty: 1
Betriebstemperatur (TT): 0 - 50 °C
Zweck: PC
Produktfarbe: Black
Fan-Standort: Top
Lagertechnik: FDB
ATX-Stromanschluss (20+4-polig): Yes
CPU-Stromanschluss (4+4-polig): Yes
Länge des CPU-Stromkabels: 65 cm
Länge des Motherboard-Stromkabels: 61 cm
PCI-Express-Stromanschlüsse (6+2-polig): 4
Kombinierte Leistung (-12 V): 3.6 W
Kombinierte Leistung (+3,3 V): 100 W
Kombinierte Leistung (+5V): 100 W
Kombinierte Leistung (+5Vsb): 15 W
Kombinierte Stromversorgung (+12 V): 648 W
PCI-Express-Anschluss: Yes
Stromanschluss des Diskettenlaufwerks: 1

Riferimenti Specifici

isbn: 978-1-23456-789-0
MPN: SSR-650PX
