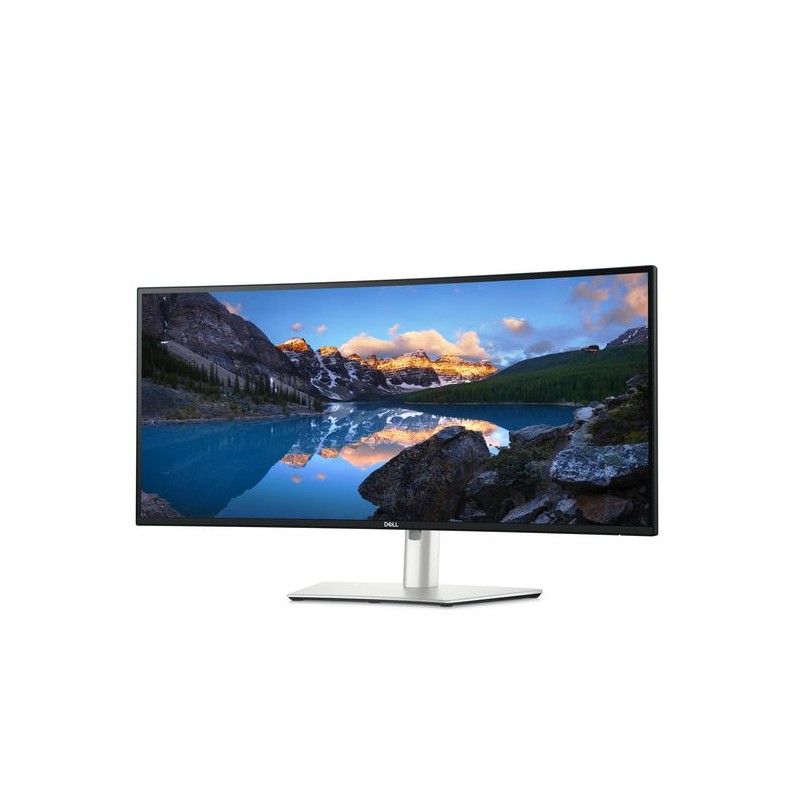

34-inch curved Thunderbolt™ hub monitor made for clear focus and greater comfort. Featuring 5-Star Eye Comfort and 120Hz refresh rate.
86.7cm (34.14") Wide Quad HD 3440 x 1440 LED IPS
8ms, 21:9, 300cd/m², 2000:1
USB, HDMI, DisplayPort
Specifiche
Carbon footprint
PAIA version
GaBi version 1, 2024
Design
Detachable stand
Yes
Front bezel colour
Black
Market positioning
Business
Product colour
Black/Silver
Display
Anti-glare screen
Yes
Backlight type
LED
Colour gamut
98 %
Contrast ratio (typical)
2000:1
Display brightness (typical)
300 cd/m²
Display diagonal
34.14 "
Display number of colours
1.07 billion colours
Display resolution
3440 x 1440 Pixel
Display technology
LCD
HD type
Wide Quad HD
High Dynamic Range (HDR) supported
No
Horizontal scan range
25 - 185 kHz
Maximum refresh rate
120 Hz
Native aspect ratio
21:9
Panel type
IPS
Pixel density
110 ppi (punti per pollice)
Pixel pitch
0.2325 x 0.2325 mm
Response time
8 ms
Response time (fast)
5 ms
Screen curvature rating
1900R
Screen shape
Curved
sRGB coverage (typical)
100 %
Supported graphics resolutions
1024 x 768 (XGA)/1152 x 864 (XGA+)/1280 x 1024 (SXGA)/1280 x 800 (WXGA)/1600 x 1200/1920 x 1080 (HD 1080)/2560 x 1440/3440 x 1440/640 x 480 (VGA)/720 x 480/800 x 600 (SVGA)
Supported video modes
1080i/1080p/480p/576p/720p
Surface hardness
3H
Touchscreen
No
Vertical scan range
48 - 120 Hz
Viewable size diagonal
86.716 cm
Viewable size, horizontal
79.98 cm
Viewable size, vertical
33.48 cm
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Ergonomics
Adjustable height (max)
15 cm
Cable lock slot
Yes
Cable management
Yes
Height adjustment
Yes
Height adjustment
15 cm
LED indicators
Yes
On Screen Display (OSD)
Yes
Panel mounting interface
100 x 100 mm
Pivot
No
Plug and Play
Yes
Swivel angle range
-30 - 30 °
Swivelling
Yes
Tilt adjustment
Yes
Tilt angle range
-5 - 21 °
VESA mounting
Yes
Wall mountable
Yes
Multimedia
Built-in camera
No
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
10 W
Network
Wi-Fi
No
Operational conditions
Non-operating altitude
5000 - 12192 m
Operating altitude
0 - 5000 m
Operating relative humidity (H-H)
10 - 80 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-20 - 60 °C
Other features
Ethernet LAN (RJ-45) ports
1
Heavy metals free
Hg (mercury)
Packaging content
Cables included
AC/DisplayPort/HDMI/USB Type-C to USB Type-C
Power adapter included
Yes
Quick start guide
Yes
Remote control included
No
Stand included
Yes
Stylus included
No
Performance
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
NVIDIA G-SYNC
No
Ports & interfaces
Built-in USB hub
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
HDCP version
1.4/2.2
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone out
Yes
Headphone outputs
1
Number of USB Type-C upstream ports quantity
2
Thunderbolt 4 ports quantity
2
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W
USB Type-A downstream ports quantity
5
USB Type-C DisplayPort Alternate Mode
Yes
USB Type-C downstream ports quantity
3
USB upstream port type
USB Type-C
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
32 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
F
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1777749
Input current
3.2 A
Power consumption (max)
250 W
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
31.5 W
Power supply type
Internal
Sustainability
Doesn't contain
PVC/BFR
Sustainability certificates
ENERGY STAR/TCO
Sustainability compliance
Yes
Technical details
Compliance certificates
RoHS
Vendor information
Brand Name
Dell
Warranty
1
Weight & dimensions
Bezel width (bottom)
1.39 cm
Bezel width (side)
9.78 mm
Bezel width (top)
1.045 cm
Depth (with stand)
24.043 cm
Depth (without stand)
10.508 cm
Height (with stand)
54.283 cm
Height (without stand)
35.915 cm
Weight (with stand)
7780 g
Weight (without stand)
10370 g
Width (with stand)
81.346 cm
Width (without stand)
81.346 cm
