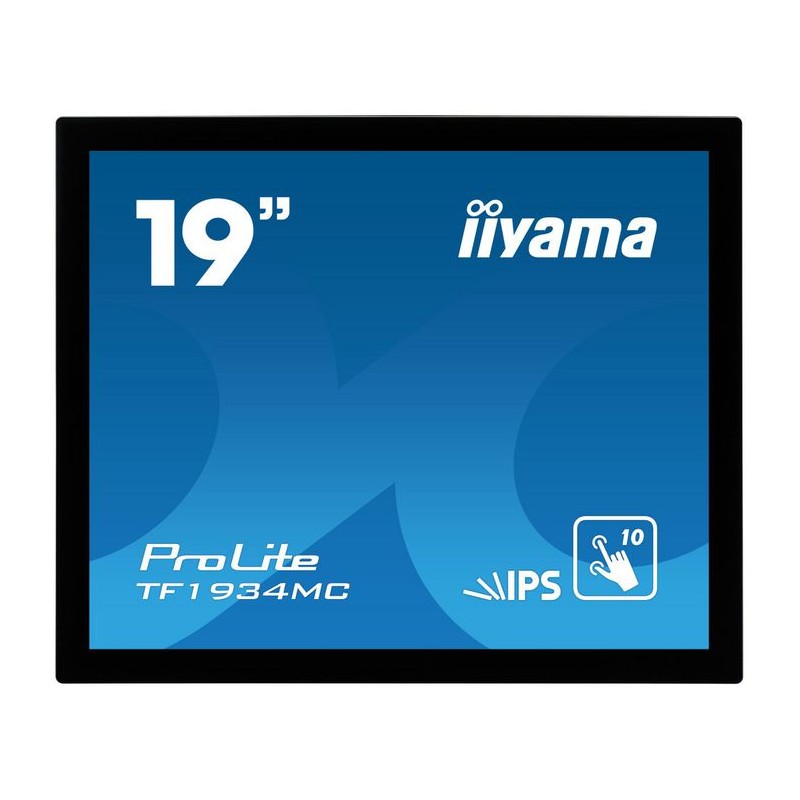

TF1934MC-B7X
Open Frame, 19", 1280 x 1024, IPS, 350 cd/m², 14ms, VGA, HDMI, DisplayPort, IP65, 416 x 344 x 46.5 mm, 4.4kg
Descrizione
10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
- anti-fingerprint coating, touch through-glass
- IP65 (front)
- OSD key lock
Specifiche
Design
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Product colour | Black |
Display
| Aspect ratio | 5:4 |
| Backlight type | LED |
| Contrast ratio (dynamic) | 1000:1 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 350 cd/m² |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 19 " |
| Display diagonal (metric) | 48 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1280 x 1024 Pixel |
| Display technology | LED |
| HD type | SXGA |
| Horizontal scan range | 31.4 - 80 kHz |
| LED backlight | Yes |
| Native aspect ratio | 5:4 |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 14 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Touchscreen | Yes |
| Viewable size diagonal | 48 cm |
| Viewable size, horizontal | 37.65 cm |
| Viewable size, vertical | 30.11 cm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Ergonomics
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Other features
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| Connection to PC | Yes |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| International Protection (IP) code | IP65 |
Packaging content
| Quick start guide | Yes |
Performance
| AMD FreeSync | No |
| Built-in camera | No |
| Built-in microphone | No |
| Number of OSD languages | 7 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English/French/German/Italian/Japanese/Spanish |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
Ports & interfaces
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Power
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 392527 |
| Power consumption (off) | 1.5 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 21 W |
| Power supply type | External |
Vendor information
| Brand Name | iiyama |
| Warranty | 3 |
Weight & dimensions
| Depth (with stand) | 4.65 cm |
| Depth (without stand) | 4.65 cm |
| Height (with stand) | 34.4 cm |
| Height (without stand) | 34.4 cm |
| Weight (with stand) | 4400 g |
| Weight (without stand) | 4400 g |
| Width (with stand) | 41.6 cm |
| Width (without stand) | 41.6 cm |
Dettagli del prodotto
6 Articoli
Nuovo
Scheda tecnica
- Tipo di pannello
- IPS
- Tecnologia touch
- Multi-touch
- Consumi (modalità spento)
- 1.5 W
- HDCP
- Yes
- Rapporto d'aspetto nativo
- 5:4
- Tempo di risposta
- 14 ms
- Forma dello schermo
- Flat
- Rapporto di contrasto (dinamico)
- 1000:1
- Range di scansione orizzontale
- 31.4 - 80 kHz
- NVIDIA G-SYNC
- No
- AMD FreeSync
- No
- HDMI
- Sì
- Classe di efficienza energetica (SDR)
- F
- Spessore del vetro
- 6 mm
- Porta USB a sfioramento
- Yes
- an der Wand montierbar
- Yes
- Bildschirmhelligkeit
- 350 cd/m²
- Display-Technologie
- LED
- Pixelabstand
- 0.294 x 0.294 mm
- Schnittstelle für Schalttafeleinbau
- 100 x 100 mm
- VESA-Montage
- Yes
- Anzahl der Farben anzeigen
- 16.7 million colours
- Anzahl gleichzeitiger Touchpoints
- 10
- Anzeigediagonale (metrisch)
- 48 cm
- Betrachtungswinkel horizontal
- 178 °
- Betrachtungswinkel, vertikal
- 178 °
- Kontrastverhältnis (typisch)
- 1000:1
- Touchscreen-Technologie
- Projected capacitive system
- Bildschirmanzeige (OSD)
- Yes
- Sprachen der Bildschirmanzeige (OSD).
- English/French/German/Italian/Japanese/Spanish
- Anzahl der HDMI-Anschlüsse
- 1
- Breite (mit Ständer)
- 41.6 cm
- Gewicht (mit Ständer)
- 4400 g
- Höhe (mit Ständer)
- 34.4 cm
- Tiefe (mit Ständer)
- 4.65 cm
- DisplayPorts Menge
- 1
- Schnellstartanleitung
- Yes
- Internationaler Schutzcode (IP)
- IP65
- Eingebautes Mikrophon
- No
- Zertifizierung
- CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
- Stromverbrauch (typisch)
- 21 W
- Stromverbrauch (Standby)
- 1.5 W
- Berührungssensitiver Bildschirm
- Yes
- Bildschirmauflösung
- 1280 x 1024 Pixel
- Diagonale anzeigen
- 19 "
- LED-Hintergrundbeleuchtung
- Yes
- Seitenverhältnis
- 5:4
- Unterstützte Grafikauflösungen
- 1280 x 1024 (SXGA)
- HD-Typ
- SXGA
- Anzahl der VGA (D-Sub) Anschlüsse
- 1
- Brand Name
- iiyama
- Warranty
- 3
- Stromversorgungstyp
- External
- Produktfarbe
- Black
- Verbindung zum PC
- Yes
- Art der Hintergrundbeleuchtung
- LED
- Eingebaute Kamera
- No
- Displayhelligkeit (typisch)
- 350 cd/m²
- Sichtbare Größe, horizontal
- 37.65 cm
- Sichtbare Größe, vertikal
- 30.11 cm
- Ausgangsspannung des Netzteils
- 12 V
- Energieeffizienz-Skala
- A to G
- Energieverbrauch (SDR) pro 1000 Stunden
- 18 kWh
- European Product Registry for Energy Labelling (EPREL) code
- 392527
- Breite (ohne Ständer)
- 41.6 cm
- Gewicht (ohne Ständer)
- 4400 g
- Höhe (ohne Ständer)
- 34.4 cm
- Tiefe (ohne Ständer)
- 4.65 cm
- Farbe der Frontblende
- Black
- Response time measurement type
- GTG (Gray to Gray)
- Sichtbare Diagonale
- 48 cm
- Anzahl der OSD-Sprachen
- 7
- Anzeigebereich (HxV)
- 376.5 x 301.1 mm
Riferimenti Specifici
- ean13
- 4948570118403
- MPN
- TF1934MC-B7X
