Descrizione
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches
- Integrated KVM console with 19" LED-backlit LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Optional rack mount kits available including easy installation options
- Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Specifiche
Display
| Contrast ratio (typical) | 1000:1 |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Display diagonal | 19 " |
| Display resolution | 1280 x 1024 Pixel |
| Display type | TFT |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Supported resolutions | 1280 × 1024 @ 75 Hz, DDC2B/1920 × 1200 @ 60 Hz; |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 160 ° |
Keyboard
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | Swiss |
| Keyboard layout | QWERTZ |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Cables included | AC/KVM |
| Manual | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Ports & interfaces
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| VGA (D-Sub) ports quantity | 8 |
| Video port type | VGA |
Power
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) | 22 W |
System requirements
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Technical details
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Console port | SPHD-18 |
| Hot-Plug support | Yes |
| KVM switch ports quantity | 8 |
| LED indicators | Yes |
| Material | Metal/Plastic |
| Maximum resolution | 1920 x 1200 Pixel |
| Number of computers controlled | 128 |
| Operating relative humidity (H-H) | 0 - 80 % |
| Product colour | Black |
| Push button | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Dettagli del prodotto
2026-03-04
Nuovo
Scheda tecnica
- Tempo di risposta
- 5 ms
- Bildschirmhelligkeit
- 250 cd/m²
- Pixelabstand
- 0.294 x 0.294 mm
- Gestellmontage
- Yes
- Konsolenport
- SPHD-18
- Betrachtungswinkel horizontal
- 170 °
- Betrachtungswinkel, vertikal
- 160 °
- Kontrastverhältnis (typisch)
- 1000:1
- Bildschirmanzeige (OSD)
- Yes
- Rack-Montage-Kit
- Yes
- Compliance certificates
- RoHS
- Anzeige
- LCD
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- Kabel enthalten
- AC/KVM
- Stromverbrauch (typisch)
- 22 W
- Maximum Auflösung
- 1920 x 1200 Pixel
- Tastaturbelegung
- QWERTZ
- Eingangsstrom
- 1 A
- Hot-Plug-Unterstützung
- Yes
- Hotkeys
- Yes
- Schnellinstallationsanleitung
- Yes
- Unterstützte Mac-Betriebssysteme
- Yes
- Anzeigetyp
- TFT
- Bildschirmauflösung
- 1280 x 1024 Pixel
- Diagonale anzeigen
- 19 "
- Anzahl der kontrollierten Computer
- 128
- Mausanschlusstyp
- USB
- Typ des Tastaturanschlusses
- PS/2
- Typ des Videoanschlusses
- VGA
- Rack-Kapazität
- 1U
- Tastatursprache
- Swiss
- Anzahl der VGA (D-Sub) Anschlüsse
- 8
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 50 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Unterstützte Linux-Betriebssysteme
- Yes
- Unterstützte Windows-Betriebssysteme
- Yes
- Produktfarbe
- Black
- Material
- Metal/Plastic
- Eingangsspannung des Netzteils
- 100 - 240 V
- Eingebauter KVM-Switch
- Yes
- Netzadapterfrequenz
- 50/60 Hz
- Anzahl der KVM-Switch-Ports
- 8
- Eingebautes Touchpad
- Yes
- Supported resolutions
- 1280 × 1024 @ 75 Hz, DDC2B/1920 × 1200 @ 60 Hz;
- Push button
- Yes
Riferimenti Specifici
- ean13
- 4710469345746
- MPN
- CL1308N-CH
16 altri prodotti della stessa categoria:
Marca: Aten
CL3108NX-NORDIC
ATEN CL3108, 47 cm (18.5"), 1366 x 768 Pixel, TFT-LCD, 250 cd/m², 1000:1, 170°
1.338,9 CHF
tasse incl.
1.238,6 CHF
tasse escl.
In magazzino
Marca: Aten
KL1508AM-AXA-2XK06DNG
ATEN KL1508AM, 1600 x 1200 Pixel, Montaggio rack, 24,4 W, 1U, Nero
1.619,0 CHF
tasse incl.
1.497,7 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
CL5716IM-ATA-2XK06SG
ATEN CL5716IM-ATA-2XK06SG, 1920 x 1200 Pixel, WUXGA, Montaggio rack, 1U, Nero
1.861,6 CHF
tasse incl.
1.722,1 CHF
tasse escl.
Verrà ordinato per te
906,0 CHF
tasse incl.
838,1 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
KL1508AIN-AXA-2XK06SG
ATEN KL1508AiN, 1600 x 1200 Pixel, Collegamento ethernet LAN, Montaggio rack, 27,5 W, 1U, Nero
2.549,4 CHF
tasse incl.
2.358,4 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
CL5716IM-ATA-2XK06GG
ATEN CL5716IM-ATA-2XK06GG, 1920 x 1200 Pixel, WUXGA, Montaggio rack, 1U, Nero
1.899,6 CHF
tasse incl.
1.757,3 CHF
tasse escl.
Verrà ordinato per te
Marca: Black Box
KVT417A-16UV-R2
SERVTRAY 17" (16 PORT) VG USB/PS/2 PORT ServTray, 43.2 cm (17"), 1280 x 1024 pixels, LCD, 450:1, 33.8 cm, 27 cm
2.429,7 CHF
tasse incl.
2.247,6 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
CL3700NW-US
ATEN CL3700NW, 47 cm (18.5"), 1920 x 1080 Pixel, 350 cd/m², 1000:1, 178°, 178°
1.760,5 CHF
tasse incl.
1.628,6 CHF
tasse escl.
In magazzino
2.217,1 CHF
tasse incl.
2.051,0 CHF
tasse escl.
Verrà ordinato per te
2.172,5 CHF
tasse incl.
2.009,7 CHF
tasse escl.
Verrà ordinato per te
825,2 CHF
tasse incl.
763,4 CHF
tasse escl.
Verrà ordinato per te
1.720,1 CHF
tasse incl.
1.591,2 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
CL5708IN-ATA-2XK06GG
ATEN CL5708IN-ATA-2XK06GG, 1920 x 1200 Pixel, WUXGA, Montaggio rack, 1U, Nero
1.814,0 CHF
tasse incl.
1.678,1 CHF
tasse escl.
Verrà ordinato per te
3.285,7 CHF
tasse incl.
3.039,5 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
KL1516AIM-AXA-2XK06ITG
ATEN KL1516AiM, 1600 x 1200 Pixel, Collegamento ethernet LAN, Montaggio rack, 30 W, 1U, Nero
2.661,9 CHF
tasse incl.
2.462,4 CHF
tasse escl.
Verrà ordinato per te
Marca: Aten
KL1108VN-AXA-2XK06DNG
ATEN KL1108VN, 1920 x 1200 Pixel, Collegamento ethernet LAN, Montaggio rack, 1U, Nero
3.671,4 CHF
tasse incl.
3.396,3 CHF
tasse escl.
Verrà ordinato per te

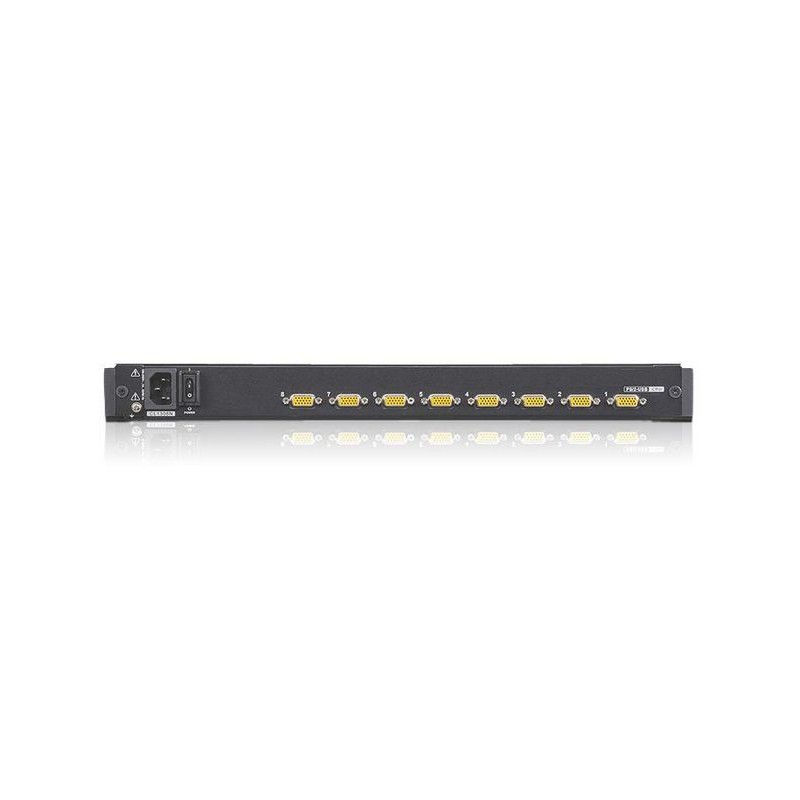

8-Port PS/2-USB VGA Single Rail LCD KVM Switch, CH KB
