Descrizione

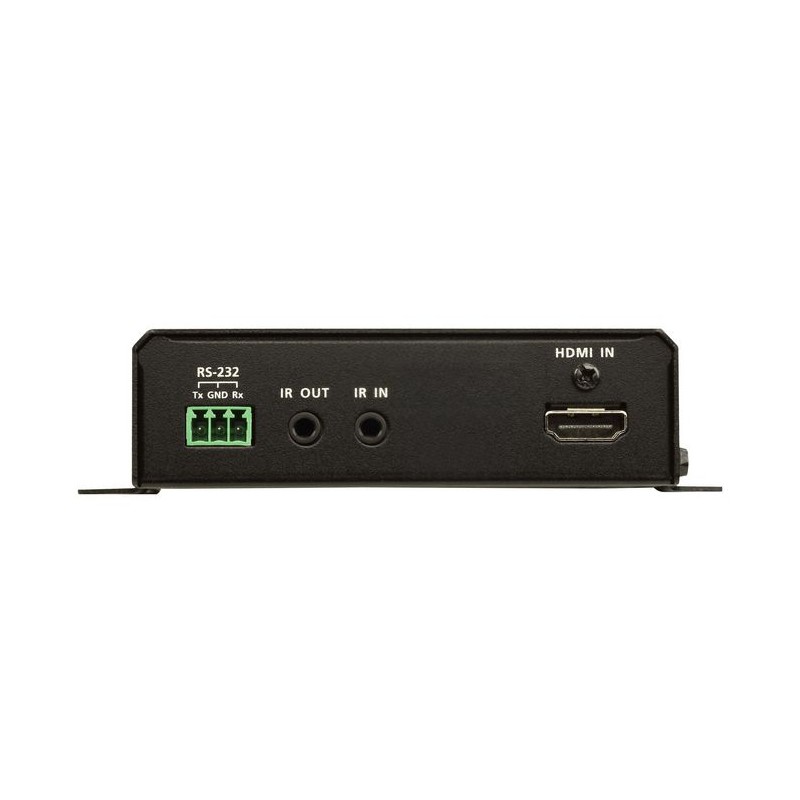

4K HDMI HDBaseT Dual-View Transmitter (4096 x 2160 up to 100m; Long reach mode 1920 x 1080 up to 150m) with Local Output and IR / RS-232 / Ethernet Pass-through
- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Extends Ethernet communication using the Ethernet pass-through port
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
- RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Supports wide screen format
- Built-in 8 kV/15 kV ESD protection
- Plug-and-play
- Rack-mountable
Specifiche
Features
| 3D | Yes |
| Bandwidth | 340 MHz |
| Bandwidth | 10.2 Gbit/s |
| Cable types supported | Cat5e/Cat6/Cat6a |
| Consumer Electronics Control (CEC) support | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| Material | Metal |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 Pixel |
| Maximum transfer distance | 150 m |
| Plug and Play | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/4096 x 2160 |
| Type | AV transmitter |
Logistics data
| Master (outer) case gross weight | 4050 g |
| Master (outer) case height | 17.5 cm |
| Master (outer) case length | 32.5 cm |
| Master (outer) case net weight | 2950 g |
| Master (outer) case volume | 14158.42 cm³ |
| Master (outer) case width | 25 cm |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| AC adapter included | Yes |
| Manual | Yes |
Ports & interfaces
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | No |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
Technical details
| Package volume | 2265.35 cm³ |
Vendor information
| Brand Name | Aten |
Dettagli del prodotto
2026-06-22
Nuovo
Scheda tecnica
- Compatibilità 3D
- Yes
- HDCP
- Yes
- Extended display identification data (EDID)
- Yes
- Numero di uscite HDMI
- 1
- Protezione contro le scariche elettrostatiche (ESD)
- 15 kV
- Porta HDBaseT
- Yes
- Gestellmontage
- Yes
- Paketvolumen
- 2265.35 cm³
- Fernbedienungseingang (IR)
- 1
- Inklusive Netzteil
- Yes
- DC-Eingangsbuchse
- Yes
- Plug-and-Play
- Yes
- Handbuch
- Yes
- Anzahl der seriellen Anschlüsse
- 1
- Typ der seriellen Schnittstelle
- RS-232
- Ethernet-LAN
- No
- Konnektivitätstechnologie
- Wired
- Maximum Auflösung
- 4096 x 2160 Pixel
- Impedanz
- 100 Ohm
- Bandbreite
- 10.2 Gbit/s
- Maximum Übertragungsentfernung
- 150 m
- Maximum Bildwiederholfrequenz
- 60 Hz
- Unterstützte Grafikauflösungen
- 1920 x 1080 (HD 1080)/4096 x 2160
- HDCP-Version
- 2.2
- Typ
- AV transmitter
- Brand Name
- Aten
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Produktfarbe
- Black
- Material
- Metal
- RJ-45-Ausgangsports
- 1
- RJ-45-Eingangsports
- 1
- Unterstützte Kabeltypen
- Cat5e/Cat6/Cat6a
- Unterstützung für Consumer Electronics Control (CEC)
- Yes
- HDMI-Eingang
- 1
- Remote-Ausgang (IR).
- 1
- Master (äußere) Gehäusebreite
- 25 cm
- Master (äußere) Gehäusehöhe
- 17.5 cm
- Master (äußere) Gehäuselänge
- 32.5 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 4050 g
- Nettogewicht des (äußeren) Hauptkoffers
- 2950 g
- Master (äußeres) Gehäusevolumen
- 14158.42 cm³
Riferimenti Specifici
- ean13
- 4710469342325
- MPN
- VE814AT-ATA-G
