Descrizione
Now for the little ones

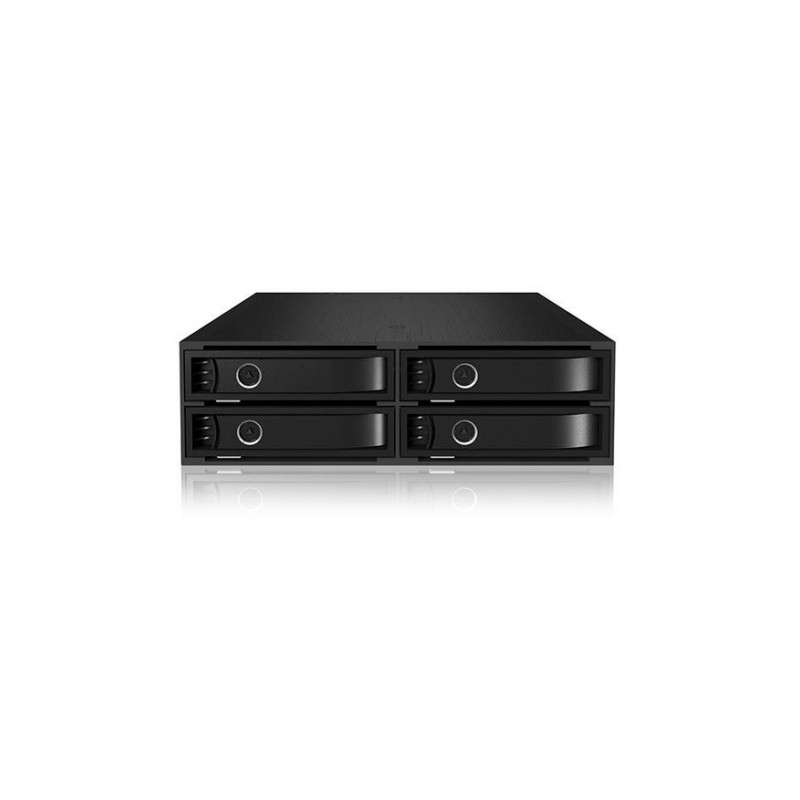

We are not only offering a backplane solution for 3.5", now there is a solution for 2.5" HDDs and SSDs. It can hold 4 HDDs with a maximum height of 15 mm.
An elaborated system
To prevent overheating of the HDDs and SSDs at full duty, the aluminium case provides a good heat dissipation and is a perfect match wit the two 40-mm Fans.
Fast transport...
is assure by SATA III and a SAS chipset. Due to Sata Power no extra powerline is needed for the Backplane. The lock protects the HDD from unauthorized or accidental access
We are not only offering a backplane solution for 3.5", now there is a solution for 2.5" HDDs and SSDs. It can hold 4 HDDs with a maximum height of 15 mm.
An elaborated system
To prevent overheating of the HDDs and SSDs at full duty, the aluminium case provides a good heat dissipation and is a perfect match wit the two 40-mm Fans.
Fast transport...
is assure by SATA III and a SAS chipset. Due to Sata Power no extra powerline is needed for the Backplane. The lock protects the HDD from unauthorized or accidental access
- For 4x 2.5" SATA/SAS HDD/SSD
- HDD height up to 15 mm
- Robust industrial design
- Full aluminum/metal material
- Support SATA III 6 Gbit/s and SAS II
- With Key Lock
- 2x 40x40x10 mm cooling fan
- Plug & Play and Hot Swap
- Fits in a 5.25" bay
- Non-Scratch-SATA (NSS) Connetor
Specifiche
Features
| Data transfer rate | 6 Gbit/s |
| Fan diameter | 4 cm |
| HDD interface | SATA II/SATA III |
| HDD size | 2.5 " |
| Hot-swap | Yes |
| Key lock | Yes |
| LED indicators | HDD/Power |
| Material | Aluminium |
| Number of fans | 2 ventola(e) |
| Number of HDDs supported | 4 |
| Product colour | Black |
| Size (imperial) | 5.25 " |
| Supported storage drive heights | 12/12.5/12.7/15/7/9/9.5 mm |
| Type | Storage drive tray |
Logistics data
| Products per master (outer) case | 8 pz |
Packaging content
| Cables included | SATA |
| Manual | Yes |
| Number of lock keys included | 2 pz |
| Number of screws | 24 |
| Quantity per pack | 1 pz |
| Screws included | Yes |
Ports & interfaces
| External SATA ports quantity | 4 |
System requirements
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Vendor information
| Brand Name | ICY BOX |
| Warranty | 2 |
Dettagli del prodotto
19 Articoli
Nuovo
Scheda tecnica
- Blocco tastiera
- Yes
- Anzahl Fans
- 2 Lüfter
- Numero di sbarre
- 24
- LED-Anzeigen
- HDD/Power
- Handbuch
- Yes
- Kabel enthalten
- SATA
- Grösse (Zoll)
- 5.25 "
- Anzahl der unterstützten Festplatten
- 4
- Lüfterdurchmesser
- 4 cm
- HDD-Schnittstelle
- SATA II/SATA III
- Schrauben enthalten
- Yes
- Produkte pro Master (Außen)-Case
- 8 Stück(e)
- Unterstützte Mac-Betriebssysteme
- Yes
- Mac-Kompatibilität
- Yes
- HDD-Größe
- 2.5 "
- Typ
- Storage drive tray
- Brand Name
- ICY BOX
- Warranty
- 2
- Datenübertragungsrate
- 6 Gbit/s
- Unterstützte Windows-Betriebssysteme
- Yes
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- Black
- Material
- Aluminium
- Hot-swap
- Yes
- Unterstützte Speicherlaufwerkshöhen
- 12/12.5/12.7/15/7/9/9.5 mm
- Anzahl der Schlossschlüssel enthalten
- 2 Stück(e)
- Anzahl der externen SATA-Anschlüsse
- 4
Riferimenti Specifici
- ean13
- 4250078160588
- MPN
- IB-2242SSK
