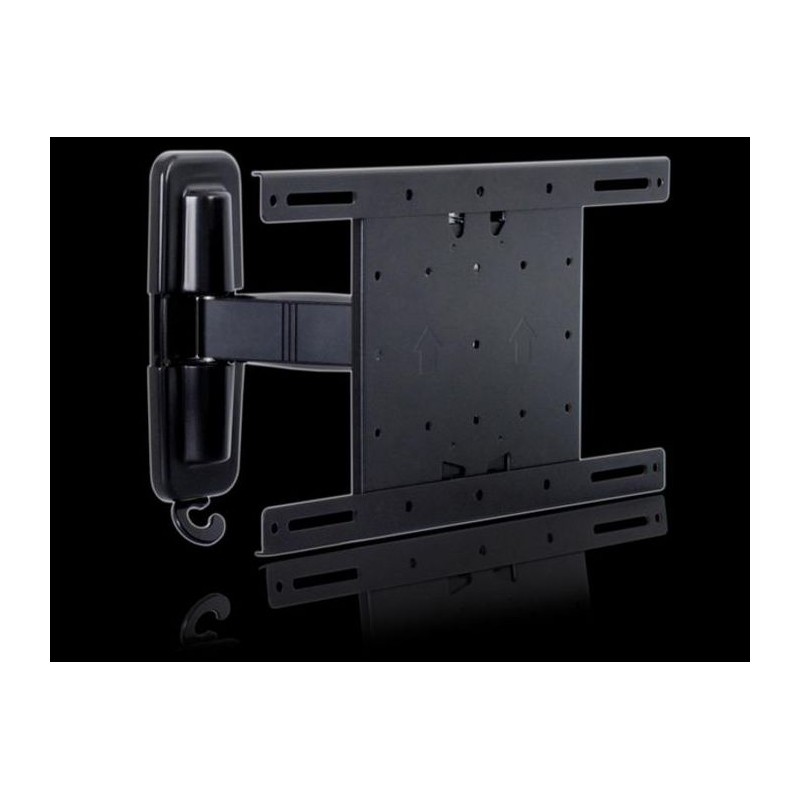

M VESA Flexarm Tilt & Turn II ends an era of bulky and heavy arms needed to flex, tilt and turn.
The uniquely designed low profile M VESA Flexarm Tilt & Turn III mount fits most 32" and up to 50" flat panels up to 25 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Flexarm Tilt & Turn III is part of the Tilt & Turn Series of fixed, tilt and cantilever mounts offering a unique design without compromising on functionality. Moreover, this wallmount has an extended profile of 225 mm from the wall.
The specifications this product reveals are simply incredible.
Super Slim defines the minimal 47 mm of the low profile to wall. It extends to a maximum of 225 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 25 kgs.
M VESA Flexarm Tilt & Turn III is suitable for a wide range of screens sized 32" and up to 50". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm.
The flexarms nest for a super slim 47 mm mounting profile
Flex, tilt and turn for an optimal viewing angle at any time
Tilt easily to 0~15º to reduce glare
Turn effortlessly to -45~+45 depending on screen size to view from the right angle
Installation template and tool kit included for simple mounting
Built in bubble level for accurate mounting
One person tilt adjustment
Specifiche
Design
Product colour
Black
Ergonomics
Distance to the wall (max)
22.5 cm
Distance to the wall (min)
3.7 cm
Tilt adjustment
Yes
Tilt angle range
0 - 15 °
Turn angle
90 °
Logistics data
Products per shipping (inner) case
4 pz
Mounting
Maximum screen size
50 "
Maximum VESA mount
400 x 400 mm
Maximum weight capacity
25 kg
Minimum screen size
32 "
Minimum VESA mount
100 x 100 mm
Mounting type
Wall
Number of displays supported
1
Panel mounting interface
100 x 100/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400 mm
Vendor information
Brand Name
Multibrackets
Warranty
1
Weight & dimensions
Depth (max)
22.5 cm
Depth (min)
3.7 cm
Dettagli del prodotto
2026-01-05
Nuovo
Scheda tecnica
Inclinazione regolabile
Yes
Compatibilità interfaccia di montaggio (min)
100 x 100 mm
Distanza dalla parete (min)
3.7 cm
Schnittstelle für Schalttafeleinbau
100 x 100/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400 mm
