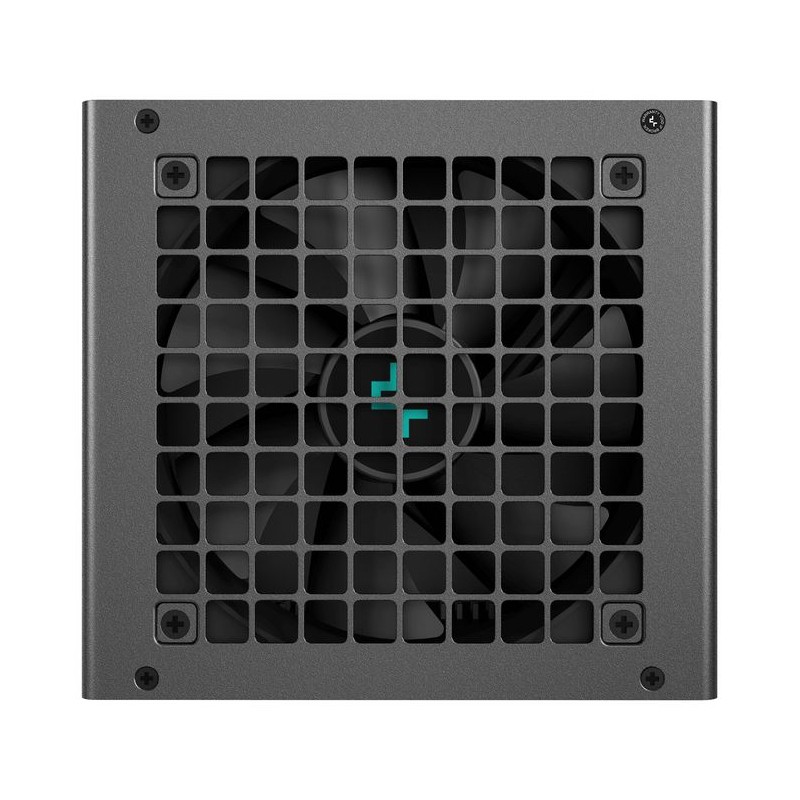

R-PN750D-FC0B-EU-V2

Name: DeepCool R-PN750D-FC0B-EU-V2
Brand: DeepCool
SKU: 2477093
Price: 84.6 CHF
Availability: InStock

Marca DeepCool

84,6 CHF

Tasse incluse

78,3 CHF Tasse escluse

Consegna in 4-5 giorni

Quantità

In magazzino

In magazzino: 13 Articoli

Documents et médias

Documents 1

manual pdf .pdf

User manual

Télécharger

Descrizione
Dettagli del prodotto

Descrizione

Specifiche

Certificates

Certification	CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Compliance certificates	RoHS/WEEE

Design

Cooling type	Active
Fan diameter	12 cm
Fan location	Top
Number of fans	1 ventola(e)
On/off switch	Yes
Product colour	Black

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Performance

80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	HYB
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC

Ports & interfaces

ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
CPU power cable length	70 cm
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	3
Peripheral (Molex) power cable length	93 cm
Peripheral (Molex) power connectors (4-pin)	1
SATA power cable length	450/570/690/810 mm

Power

AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	750 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	15 W
Efficiency	90 %
Hold time	16 ms
Input current	10 - 5 A
Max output current (-12V)	0.3 A
Max output current (+12V)	62.5 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 - 150 ms
Power protection features	No load operation/Over current/Over power/Over voltage/Overheating/Surge & inrush protection (SIP)/Surge protection/Under voltage
Total power	750 W

Technical details

Sustainability certificates	ErP/Triman
Sustainability compliance	Yes

Vendor information

Brand Name	DeepCool
Warranty	1

Dettagli del prodotto

In magazzino 13 Articoli

Condizione Nuovo

Scheda tecnica

Tempo di attesa: 16 ms
Versione ATX: 3.1
Anzahl Fans: 1 Lüfter
Ein / Aus Schalter: Yes
Mean time between failures (MTBF): 100000 h
Compliance certificates: RoHS/WEEE
Kühltyp: Active
Leistungsschutzfunktionen: No load operation/Over current/Over power/Over voltage/Overheating/Surge & inrush protection (SIP)/Surge protection/Under voltage
Zertifizierung: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
AC-Eingangsfrequenz: 50/60 Hz
AC-Eingangsspannung: 100 - 240 V
Nachhaltigkeitskonformität: Yes
Nachhaltigkeitszertifikate: ErP/Triman
Verkabelungstyp: Non-Modular
Totale Kraft: 750 W
Typ mit Leistungsfaktorkorrektur (PFC): Active
Eingangsstrom: 10 - 5 A
Max. Ausgangsstrom (+12 V): 62.5 A
Max. Ausgangsstrom (+3,3 V): 20 A
Max. Ausgangsstrom (+5 V): 20 A
Maximaler Ausgangsstrom (-12 V): 0.3 A
Netzteil-Formfaktor (PSU): ATX
Effizienz: 90 %
Lüfterdurchmesser: 12 cm
Motherboard-Stromanschluss: 20+4 pin ATX
80 PLUS-Zertifizierung: 80 PLUS Gold
Max. Ausgangsstrom (+5 Vsb): 3 A
Anzahl der SATA-Stromanschlüsse: 8
Peripherie (Molex) Stromanschlüsse (4-polig): 1
Brand Name: DeepCool
Warranty: 1
Betriebstemperatur (TT): 0 - 40 °C
Zweck: PC
Produktfarbe: Black
Fan-Standort: Top
Lagertechnik: HYB
ATX-Stromanschluss (20+4-polig): Yes
CPU-Stromanschluss (4+4-polig): Yes
Länge des CPU-Stromkabels: 70 cm
Länge des Motherboard-Stromkabels: 55 cm
Länge des Peripherie-Stromkabels (Molex): 93 cm
Länge des SATA-Stromkabels: 450/570/690/810 mm
PCI Express power connectors (16-pin): 1
PCI-Express-Stromanschlüsse (6+2-polig): 3
Kombinierte Leistung (-12 V): 3.6 W
Kombinierte Leistung (+3,3 V): 100 W
Kombinierte Leistung (+5V): 100 W
Kombinierte Leistung (+5Vsb): 15 W
Kombinierte Stromversorgung (+12 V): 750 W
Power Good-Signalverzögerungsbereich: 100 - 150 ms

Riferimenti Specifici

MPN: R-PN750D-FC0B-EU-V2
