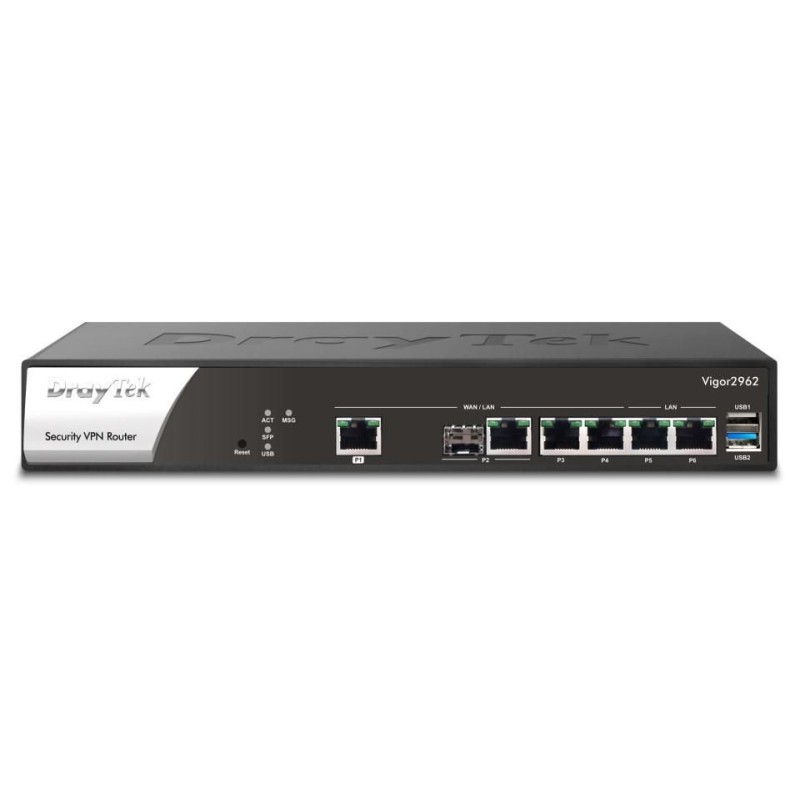

The DrayTek Vigor 2962 Dual-WAN Load Balancing Firewall VPN router surpasses Gigabit speeds, to get the best performance out of FTTP Fibre Broadband and more. Connects to 2.5Gb Ethernet and SFP Fibre, for LAN or WAN use.
The Vigor 2962 provides a reliable, flexible, and secure network solution with extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.
An ideal VPN concentrator with 500Mbps SSL VPN performance. Connect up to 50 SSL VPN & OpenVPN users, or 200 IPsec tunnels, simultaneously. With up to 20 LAN subnets, BGP and OSPF, it’s well equipped to manage larger, more complex networks and Multi Occupancy Offices.
- High Performance Dual WAN Router
- Manage Multiple Networks
- Capable SSL VPN Concentrator
- Flexible LAN/WAN Ports
- Packed With Features
- Great Central Management
Specifiche
Design
| LED indicators | Activity/USB |
| Product colour | Black/White |
| Rack mounting | Yes |
Management features
| Firmware upgradeable | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
Mobile network
| Mobile network generation | Not supported |
Network
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000/2500 Mbit/s |
| Forwarding rate | 900 Mpps |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q |
| Policy-based routing | Yes |
| Port forwarding | Yes |
| Throughput | 2.2 Gbit/s |
| Traffic control | Yes |
| VLAN support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Power
| AC input voltage | 220 - 240 V |
| Power consumption (typical) | 15 W |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Routing protocols | RIP-1/RIP-2/RIPng |
Security
| DoS attack prevention | Yes |
| Firewall | Yes |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Security algorithms | HTTPS/SSH |
| URL filtering | Yes |
| VPN tunnels quantity | 200 |
Vendor information
| Brand Name | Draytek |
| Warranty | 1 |
WAN connection
