Descrizione

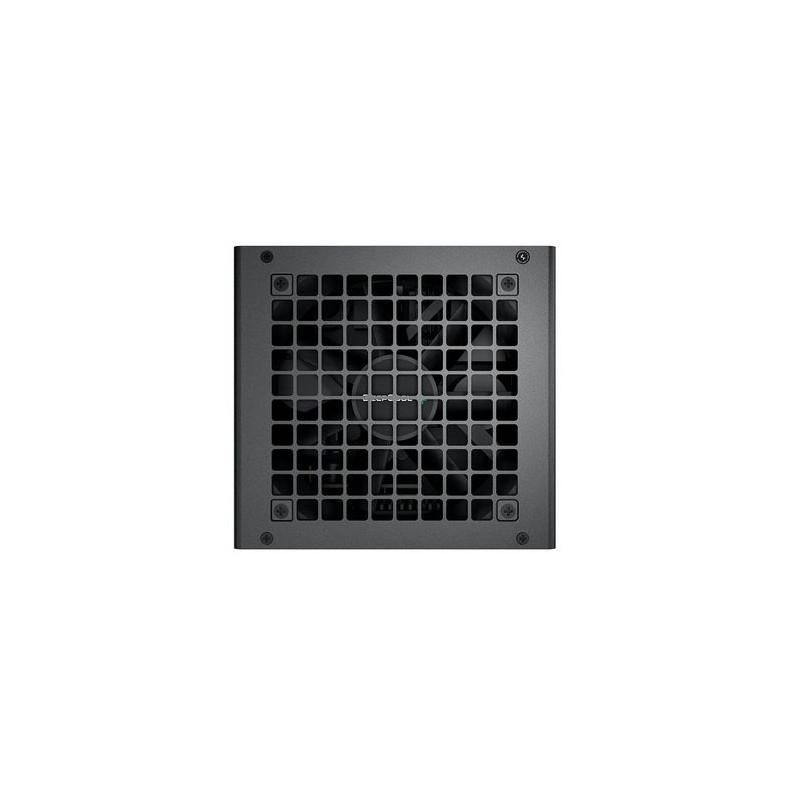

Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
A NEW GENERATION
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
BUILT SOLID
Carefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.
SILENCE IS GOLDEN
A fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.
- Optimized thermal performance
- Reduced noise levels overall
- Longer lasting lifespan
BEST OF THE BEST
Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
A NEW GENERATION
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
BUILT SOLID
Carefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.
SILENCE IS GOLDEN
A fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.
- Optimized thermal performance
- Reduced noise levels overall
- Longer lasting lifespan
BEST OF THE BEST
Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
Specifiche
Design
| Fan diameter | 12 cm |
| Number of fans | 1 ventola(e) |
| On/off switch | Yes |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 450/570/690 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 450/570/690/810 mm |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 90 % |
| Input current | 6.5 - 13 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 83 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 1000 W |
Technical details
| Compliance certificates | CE |
Vendor information
| Brand Name | DeepCool |
| Warranty | 1 |
Dettagli del prodotto
2026-03-09
Nuovo
Scheda tecnica
- Versione ATX
- 2.4
- Anzahl Fans
- 1 Lüfter
- Ein / Aus Schalter
- Yes
- Mean time between failures (MTBF)
- 100000 h
- Compliance certificates
- CE
- Leistungsschutzfunktionen
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Verkabelungstyp
- Fully-Modular
- Totale Kraft
- 1000 W
- Eingangsstrom
- 6.5 - 13 A
- Max. Ausgangsstrom (+12 V)
- 83 A
- Max. Ausgangsstrom (+3,3 V)
- 25 A
- Max. Ausgangsstrom (+5 V)
- 25 A
- Maximaler Ausgangsstrom (-12 V)
- 0.3 A
- Netzteil-Formfaktor (PSU)
- ATX
- Effizienz
- 90 %
- Lüfterdurchmesser
- 12 cm
- Motherboard-Stromanschluss
- 20+4 pin ATX
- 80 PLUS-Zertifizierung
- 80 PLUS Gold
- Max. Ausgangsstrom (+5 Vsb)
- 3 A
- Anzahl der SATA-Stromanschlüsse
- 2
- Peripherie (Molex) Stromanschlüsse (4-polig)
- 1
- Brand Name
- DeepCool
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Zweck
- PC
- Produktfarbe
- Black
- Lagertechnik
- FDB
- ATX-Stromanschluss (20+4-polig)
- Yes
- CPU-Stromanschluss (4+4-polig)
- Yes
- Länge des CPU-Stromkabels
- 65 cm
- Länge des Motherboard-Stromkabels
- 61 cm
- Länge des Peripherie-Stromkabels (Molex)
- 450/570/690 mm
- Länge des SATA-Stromkabels
- 450/570/690/810 mm
- PCI-Express-Stromanschlüsse (6+2-polig)
- 3
- Kombinierte Leistung (-12 V)
- 3.6 W
- Kombinierte Leistung (+3,3 V)
- 125 W
- Kombinierte Leistung (+5V)
- 125 W
- Kombinierte Leistung (+5Vsb)
- 15 W
- Kombinierte Stromversorgung (+12 V)
- 996 W
- Länge des PCI-Express-Stromkabels
- 75 cm
Riferimenti Specifici
- MPN
- R-PQA00M-FA0B-EU
