R-CK560-BKAAE4-G-1
Mini-ITX / Micro-ATX / ATX / E-ATX, USB3.0 × 2, TypeC × 1, 456 × 230 × 471 mm
Descrizione
DETAILS MAKE THE DIFFERENCE

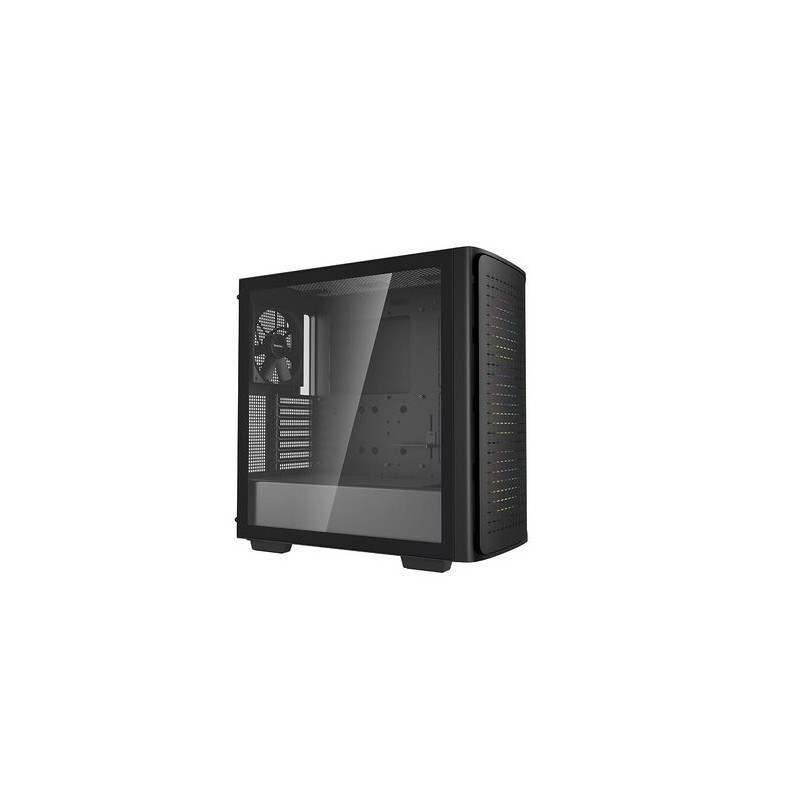

The DeepCool CK560 Mid-Tower Case offers a streamlined PC building experience with great compatibility and high-airflow performance thanks to four powerful pre-installed fans and ample ventilation throughout the chassis.
QUICK-RELEASE VENTILATED FRONT PANEL
A patterned front panel introduces ample ventilation and airflow for better cooling performance. The solid steel panel is magnetically attached for easy access.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK560 provides ample space without being too bulky.
SUPERB AIR COOLING
Three pre-installed DeepCool 120mm airflow-focused ARGB fans and one 140mm DeepCool performance fan help concentrate cooling power for lower temperatures while keeping noise minimal.
Quickly and easily customize the ARGB fans with either preset lighting effects or through a 5V header for motherboard synchronization.
CHOOSE YOUR COOLING CONFIGURATION
The CK560 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.
CONVENIENT STORAGE OPTIONS
Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.
IMPROVED BUILDER EXPERIENCE
01 Three dedicated dust-filters in front, top, and bottom with magnetic or quick-release attachments.
02 The adjustable GPU anti-sag bracket can be positioned in two locations for various sized graphics cards.
03 The full-sized tempered glass panel slides and holds in place before fastening with captive thumbscrews.
04 Rubber Grommets and ample room behind the motherboard tray help with cable management.
05 Independent PCIe baffles are reusable and easy to remove.
MODERN FRONT I/O
Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close. A dedicated RGB control button offers multiple preset lighting effects for the included ARGB fans.
The DeepCool CK560 Mid-Tower Case offers a streamlined PC building experience with great compatibility and high-airflow performance thanks to four powerful pre-installed fans and ample ventilation throughout the chassis.
QUICK-RELEASE VENTILATED FRONT PANEL
A patterned front panel introduces ample ventilation and airflow for better cooling performance. The solid steel panel is magnetically attached for easy access.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK560 provides ample space without being too bulky.
SUPERB AIR COOLING
Three pre-installed DeepCool 120mm airflow-focused ARGB fans and one 140mm DeepCool performance fan help concentrate cooling power for lower temperatures while keeping noise minimal.
Quickly and easily customize the ARGB fans with either preset lighting effects or through a 5V header for motherboard synchronization.
CHOOSE YOUR COOLING CONFIGURATION
The CK560 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.
CONVENIENT STORAGE OPTIONS
Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.
IMPROVED BUILDER EXPERIENCE
01 Three dedicated dust-filters in front, top, and bottom with magnetic or quick-release attachments.
02 The adjustable GPU anti-sag bracket can be positioned in two locations for various sized graphics cards.
03 The full-sized tempered glass panel slides and holds in place before fastening with captive thumbscrews.
04 Rubber Grommets and ample room behind the motherboard tray help with cable management.
05 Independent PCIe baffles are reusable and easy to remove.
MODERN FRONT I/O
Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close. A dedicated RGB control button offers multiple preset lighting effects for the included ARGB fans.
Specifiche
Cooling
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 120/140/240/280/360 mm |
| Liquid cooling capability | Yes |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 140 mm |
| Rear radiator sizes supported | 120/140 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 120/140/240/280 mm |
Design
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination location | Case fans |
| Material | ABS/SPCC/Tempered glass |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 16 cm |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| On/off button | Yes |
| Product colour | Black |
| Reset button | Yes |
| RGB control button | Yes |
| Side window | Yes |
| Supported motherboard form factors | ATX/EATX/micro ATX/Mini-ATX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Ports & interfaces
| Audio input | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Power supply
| Number of power supply units | 1 |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX/PS2 |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Vendor information
| Brand Name | DeepCool |
| Warranty | 1 |
Dettagli del prodotto
2026-03-20
Nuovo
Scheda tecnica
- Illuminazione
- Yes
- Tasto reset
- Yes
- Finestra laterale
- Yes
- posizione delle illuminazioni
- Case fans
- Numero massimo ventole posteriori
- 1
- Pulsante di controllo RGB
- Yes
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse
- 2
- Inklusive Netzteil
- No
- Anzahl der USB 2.0-Anschlüsse
- 0
- Formfaktor
- Midi Tower
- Typ
- PC
- Brand Name
- DeepCool
- Warranty
- 1
- Produktfarbe
- Black
- Material
- ABS/SPCC/Tempered glass
- Audioeingang
- Yes
- Anzahl Netzteile
- 1
- Anzahl der 3,5-Zoll-Schächte
- 2
- Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-C Anschlüsse
- 1
- Ort der Stromversorgung
- Bottom
- Anzahl der unterstützten Top-Lüfter (max.)
- 2
- Durchmesser der hinteren Lüfter werden unterstützt
- 120/140 mm
- Fähigkeit zur Flüssigkeitskühlung
- Yes
- Top Kühlerlüftergrößen werden unterstützt
- 120/140/240/280 mm
- Top-Lüfterdurchmesser werden unterstützt
- 120/140 mm
- An / aus Schalter
- Yes
- Anti-Staub-Filter
- Yes
- Anzahl der 2,5"-Schächte
- 2
- Anzahl der Erweiterungssteckplätze
- 7
- Maximum Grafikkartenlänge
- 38 cm
- Maximum Höhe des CPU-Kühlers
- 17.5 cm
- Maximum Netzteillänge
- 16 cm
- Unterstützte Motherboard-Formfaktoren
- ATX/EATX/micro ATX/Mini-ATX
- Unterstützte Netzteil-Formfaktoren
- ATX/PS2
- Unterstützte HDD-Größen
- 2.5/3.5 "
- Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-A Anschlüsse
- 0
- Anzahl unterstützter Frontlüfter (max.)
- 3
- Durchmesser der vorderen Lüfter werden unterstützt
- 120/140 mm
- Frontlüfter verbaut
- 3x 120 mm
- Lüfter hinten verbaut
- 1x 140 mm
- Unterstützte Lüftergrößen für den hinteren Kühler
- 120/140 mm
- Unterstützte Lüftergrößen für den vorderen Kühler
- 120/140/240/280/360 mm
- Gehärtete Glasscheibe(n)
- Yes
Riferimenti Specifici
- MPN
- R-CK560-BKAAE4-G-1
