508544

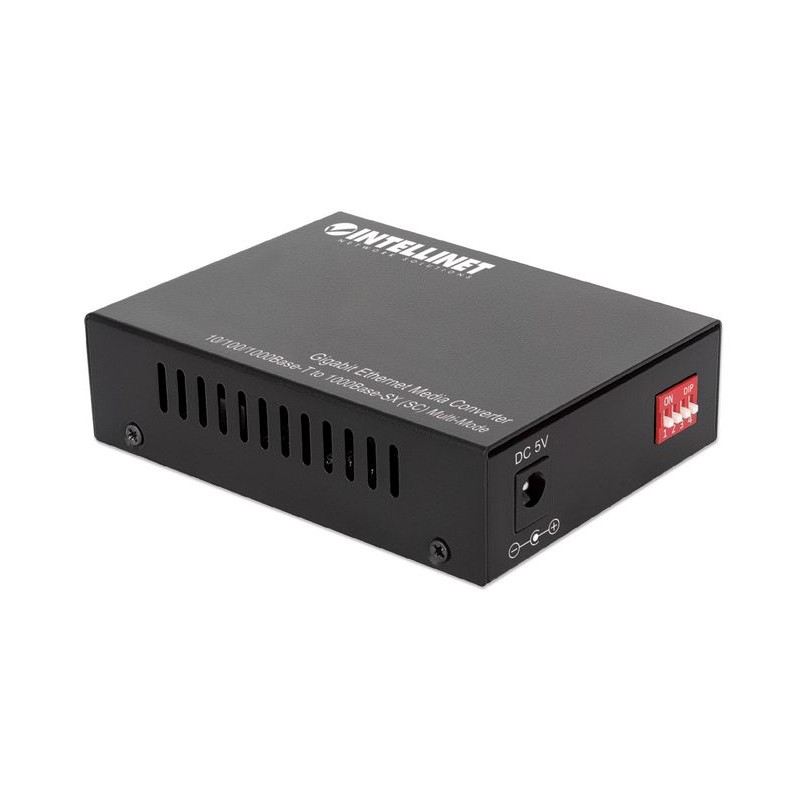

Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation
Descrizione
Media Converter with Gigabit Ethernet - Expand the size of an existing network
The Intellinet Network Solutions Gigabit Ethernet Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. It offers maximum flexibility with 10/100/1000Base-TX and auto-negotiation. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity.
More connectivity options
The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. The Gigabit Ethernet Media Converter provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with installing additional routers.
Distance extension between networking devices
Connecting the converter to fiber segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before.
Greater cabling flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several Gigabit Ethernet Media Converters can be simultaneously installed into a 19" rackmountable chassis (available from Intellinet Network Solutions), providing much-needed flexibility for networks.
The Intellinet Network Solutions Gigabit Ethernet Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. It offers maximum flexibility with 10/100/1000Base-TX and auto-negotiation. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity.
More connectivity options
The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. The Gigabit Ethernet Media Converter provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with installing additional routers.
Distance extension between networking devices
Connecting the converter to fiber segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before.
Greater cabling flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several Gigabit Ethernet Media Converters can be simultaneously installed into a 19" rackmountable chassis (available from Intellinet Network Solutions), providing much-needed flexibility for networks.
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- One 1000Base-SX fiber SC multi-mode port supporting a maximum distance of 550 m (1,800 ft.)
- Supports full-duplex and half-duplex modes with autonegotiation
- Link Fault Passthrough (LFP) function for easier network maintenance
- QoS (Quality of Service) bandwidth management
- IEEE 802.1Q VLAN tagging compliant
- Cut-through and store-and-forward switching architecture
- Wavelength: 850 nm
- Supports jumbo frames up to 9.2 kBytes
- Status LEDs for power and Link/TX on both ports
- External 5 VDC power adapter
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
- Fully NDAA-compliant
Specifiche
Design
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Housing material | Metal |
| Internal | No |
| LED indicators | LAN/Link/Power/Signal strength |
Network
| Auto-negotiation | Yes |
| Cable types supported | Cat5e |
| Duplex system | Full/Half |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Jumbo frames | 9.2 |
| Jumbo frames support | Yes |
| Link Fault Pass-through (LFP) | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3z |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | UTP/STP |
| VLAN support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
Performance
| Fiber cable diameters supported (core/cladding) | 50/125/62.5/125 µm |
| Fiber mode structure | Multi-mode |
| Maximum transfer distance | 550 m |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -9 dBmW |
| Wavelength | 850 nm |
Ports & interfaces
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Fiber ports quantity | 2 |
Power
| External power adapter | Yes |
Technical details
| Warranty period | 3 anno/i |
Vendor information
| Brand Name | Intellinet |
| Warranty | 1 |
Dettagli del prodotto
1 Articolo
Nuovo
Scheda tecnica
- Jumbo-Rahmen
- 9.2
- Unterstützung für Jumbo-Frames
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3z
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Ethernet-Schnittstellentyp
- Fast Ethernet/Gigabit Ethernet
- Durata della garanzia
- 3 Jahr(e)
- Alimentazione energetica esterna
- Yes
- LED-Anzeigen
- LAN/Link/Power/Signal strength
- Handbuch
- Yes
- Unterstützte Netzwerkprotokolle
- UTP/STP
- Konnektivitätstechnologie
- Wired
- Zertifizierung
- FCC Class B, CE, RoHS, UKCA, NDAA
- Anzahl der Glasfaseranschlüsse
- 2
- Maximum Übertragungsentfernung
- 550 m
- Wellenlänge
- 850 nm
- Glasfaseranschluss
- SC
- Schnellinstallationsanleitung
- Yes
- Duplex-System
- Full/Half
- Unterstützte Glasfaserkabeldurchmesser (Kern/Mantel)
- 50/125/62.5/125 µm
- VLAN-Unterstützung
- Yes
- Gehäusematerial
- Metal
- Brand Name
- Intellinet
- Warranty
- 1
- Betriebstemperatur (TT)
- -10 - 55 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 90 %
- Intern
- No
- Unterstützte Kabeltypen
- Cat5e
- Fasermodusstruktur
- Multi-mode
- Auto-Negotiation
- Yes
- Sendeleistung (max.)
- -3 dBmW
- Sendeleistung (min)
- -9 dBmW
- Link-Fault-Pass-Through (LFP)
- Yes
Riferimenti Specifici
- Codice a barre UPC
- 766623508544
- ean13
- 0766623508544
- MPN
- 508544
