518,4 CHF
tasse incl.
479,6 CHF
tasse escl.
In magazzino
144,1 CHF
tasse incl.
133,3 CHF
tasse escl.
In magazzino
ACFRE00182A

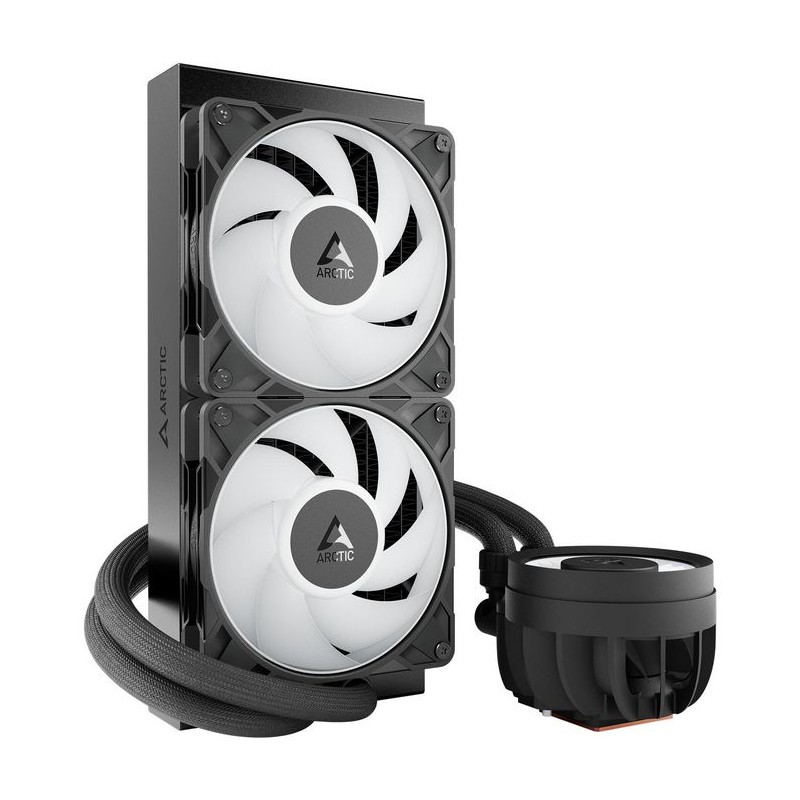

AMD/Intel, A-RGB, 2x 120 mm, 600-3000 RPM, 77 cfm, 6.9 mmH2O, FDB, PWM, 400-2500 RPM VRM, 800-2800 RPM Pump, 12 V DC, Black
Descrizione
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Specifiche
Design
| Base plate material | Copper |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Number of fans | 2 ventola(e) |
| Product colour | Black/White |
| Radiator material | Aluminum |
Packaging content
| Package type | Hanging box |
Performance
| Airflow | 131 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 12 cm |
| Fan speed (max) | 3000 Giri/min |
| Fan speed (min) | 600 Giri/min |
| Fan static pressure | 6.9 mmH2O |
| Maximum airflow | 77 pdc/min |
| Operating temperature (T-T) | 0 - 40 °C |
| Pulse-width modulation (PWM) support | Yes |
| Pump connector | 4-pin |
| Pump motor speed (max) | 2800 Giri/min |
| Pump motor speed (min) | 800 Giri/min |
| Quantity per pack | 1 pz |
| Suitable location | Processor |
| Supported processor sockets | Intel LGA1851/LGA 1700/Socket AM4/Socket AM5 |
| Type | All-in-one liquid cooler |
| VRM fan speed (max) | 2500 Giri/min |
| VRM fan speed (min) | 400 Giri/min |
Power
| Fan current | 0.33 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |
| Pump current | 350 mA |
| Pump voltage | 12 V |
Vendor information
| Brand Name | Arctic |
| Warranty | 1 |
Weight & dimensions
| Cable length | 0.04 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump depth | 10.85 cm |
| Pump height | 6.85 cm |
| Pump width | 9.1 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 3.8 cm |
| Radiator width | 12 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Tube length | 45 cm |
Dettagli del prodotto
367 Articoli
Nuovo
Scheda tecnica
- Illuminazione a LED
- Yes
- Tipo di cuscinetto
- Fluid Dynamic Bearing (FDB)
- Connettore per pompa (di raffreddamento)
- 4-pin
- Anzahl Fans
- 2 Lüfter
- LED connector type
- 3-pin
- LED voltage
- 5 V
- Geeigneter Standort
- Processor
- Lüfterdurchmesser
- 12 cm
- Unterstützte Prozessorsockel
- Intel LGA1851/LGA 1700/Socket AM4/Socket AM5
- Pakettyp
- Hanging box
- Kabellänge
- 0.04 m
- Typ
- All-in-one liquid cooler
- Brand Name
- Arctic
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- Black/White
- Beleuchtungsfarbe
- Multi
- Luftzug
- 131 m³/h
- Grundplattenmaterial
- Copper
- Kühlermaterial
- Aluminum
- Lüfteranschluss
- 4-pin
- Lüftergeschwindigkeit (max.)
- 3000 RPM
- Lüftergeschwindigkeit (min)
- 600 RPM
- Maximum Luftstrom
- 77 cfm
- Pumpenmotordrehzahl (max.)
- 2800 RPM
- Pumpenmotordrehzahl (min)
- 800 RPM
- Statischer Druck des Lüfters
- 6.9 mmH2O
- Unterstützung für Pulsweitenmodulation (PWM)
- Yes
- VRM fan speed (max)
- 2500 RPM
- VRM fan speed (min)
- 400 RPM
- Lüfterspannung
- 12 V
- Lüfterstrom
- 0.33 A
- Pumpenspannung
- 12 V
- Pumpenstrom
- 350 mA
- Heizkörperhöhe
- 3.8 cm
- Kühlerbreite
- 12 cm
- Kühlertiefe
- 27.7 cm
- Lüfterabmessungen (B x T x H)
- 120 x 120 x 25 mm
- Rohrdurchmesser
- 1.24 cm
- Rohrlänge
- 45 cm
- Tube inner diameter
- 6 mm
- Pump depth
- 10.85 cm
- Pump height
- 6.85 cm
- Pump width
- 9.1 cm
Riferimenti Specifici
- Codice a barre UPC
- 840033402903
- ean13
- 4895265000225
- MPN
- ACFRE00182A
