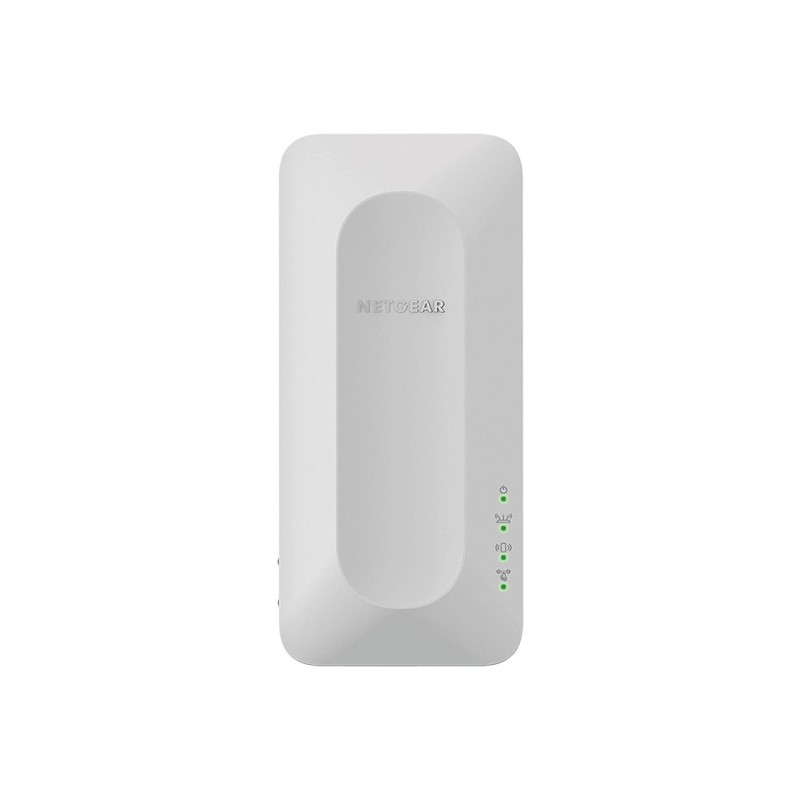

EAX17-100PES - W129177351

This powerful WiFi 6 Mesh Extender easily creates a mesh WiFi 6 system with your existing router. WiFi 6 delivers great capacity, fast speed, and more

Blazing Fast Speeds

Speeds as fast as 3.0 Gbps† (2.4 + 0.6 Gbps) throughout your home

Upgrade your WiFi to First Class

With WiFi 6 experience lightning-fast streaming and responsive gaming. With up to 2.5X the capacity of WiFi 51, there’s room for more devices, to surf, stream, and game simultaneously, without impacting speed or reliability

WiFi for the Whole House

Create a powerful One WiFi network that extends your existing network, bringing ultra-fast coverage throughout your home. Ideal for small to medium-sized homes

Increased Processing Power

Dual-core 1.3 GHz processor boosts performance for smoother 4K streaming and more responsive gaming

One (1) Gigabit Ethernet Port

For maximum performance, the built-in Gigabit Ethernet port connects directly to a wired device, delivering an unparalleled gaming and streaming performance

One WiFi Name

Seamlessly switch between networks in your home for the strongest connection possible with one WiFi name and security password

Easily Create a Mesh WiFi 6 System with your Existing Router

Expand coverage of your existing router using your current WiFi name and password. The wall-plug design has three powerful internal antennas that extend WiFi signals to where your router WiFi cannot reach. This AX3000 Mesh Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Easy Setup and Use with the Nighthawk App

With the Nighthawk app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.

NETGEAR EAX17. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: 802.11a, WLAN data transfer rate (max): 3000 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k. Number of data streams: 4x4. Security algorithms: 128-bit AES, Dynamic PSK, WEP, WPA3. Product type: Rack/wall router, Product color: White, LED indicators: Activity

Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	802.11a
WLAN data transfer rate (max)	3000 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	2400 Mbit/s
High power	Yes
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k
Auto-sensing	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
USB port	No
Reset button	Yes
WPS push button	Yes
Number of data streams	4x4
Security algorithms	128-bit AES, Dynamic PSK, WEP, WPA3
Product type	Rack/wall router
Product color	White
LED indicators	Activity
Antenna included	Yes
Manual	Yes
Quick start guide	Yes
Antenna design	Internal
Antenna type	3x3
Antennas quantity	3
Built-in processor	Yes
Processor frequency	1300 MHz
Power source type	AC, DC
Browser supported	Internet Explorer 8.0, Firefox 20 or Safari 5.1 or Google Chrome 25.0
Width	2.69" (68.4 mm)
Depth	2.06" (52.3 mm)
Height	5.87" (149 mm)
Weight	7.83 oz (222 g)
