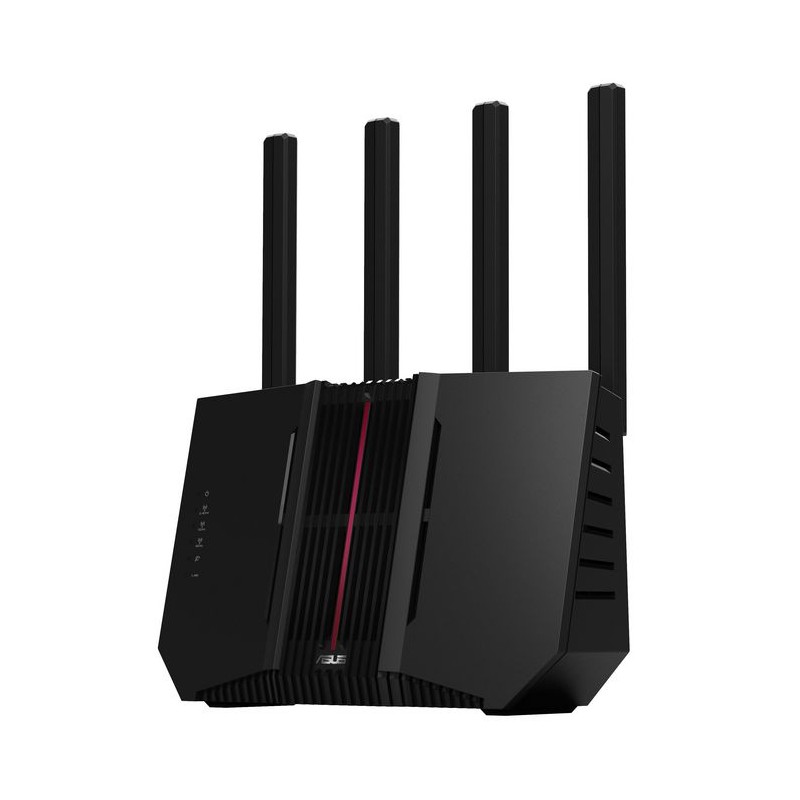

The RT-BE92U wireless router offers cutting-edge WiFi 7 technology, providing lightning-fast internet speeds of up to 9700 Mbps, ideal for streaming 8K content, gaming, and smart home applications. Its tri-band capability covers the 2.4 GHz, 5 GHz, and 6 GHz bands, ensuring superior connectivity and minimal interference. Equipped with a robust 2.0 GHz quad-core processor, 1 GB of DDR4 RAM, and multiple high-speed WAN/LAN ports, this router supports high-bandwidth applications and multi-Gigabit internet plans. The router's advanced AiMesh support allows for easy expansion of your network, while its intuitive app-based management and comprehensive security features, including WPA3 and AiProtection Pro, ensure a secure and user-friendly experience for all users.
- Beyond-fast WiFi 7 (802.11be) - New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
- Multi-link Operation - Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Versatile WAN configuration options - Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering
- Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls
- Subscription-free network security - Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
- Comprehensive VPN features - Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
- Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features
Specifications
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Design
| Indication light | Yes |
| LED indicators | LAN/Power/WAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Wall mountable | Yes |
Features
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Internal memory type | DDR4 |
| Processor cores | 4 |
| Processor frequency | 2 MHz |
Management features
| Bandwidth control | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| Web-based management | Yes |
| WPS push button | Yes |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000/10000/2500 Mbit/s |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Media server | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Support Samba (storage) | Yes |
| VPN server | VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Packaging content | Power Adapter/Quick Start Guide/RJ-45 cable/RT-BE92U WiFi 7 Tri-band Router/wall mount kit/Warranty Card |
| Quick start guide | Yes |
| Warranty card | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Output current | 3 A |
| Output voltage | 12 V |
| Power source type | DC |
Protocols
Security
| DMZ support | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Guest access | Yes |
| MAC address filtering | Yes |
| MAC address table | 64 entries |
| NAT functionality | H.323 Pass-Through/IPSec Pass-Through/L2TP Pass-Through/PPPoE Relay/PPTP Pass-Through/RTSP Pass-Through/SIP Pass-Through |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | WPA/WPA2/WPA3-Personal |
| URL filtering | Yes |
Vendor information
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 1032 Mbit/s |
| WLAN data transfer rate (max) | 5764 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 5764 Mbit/s |
