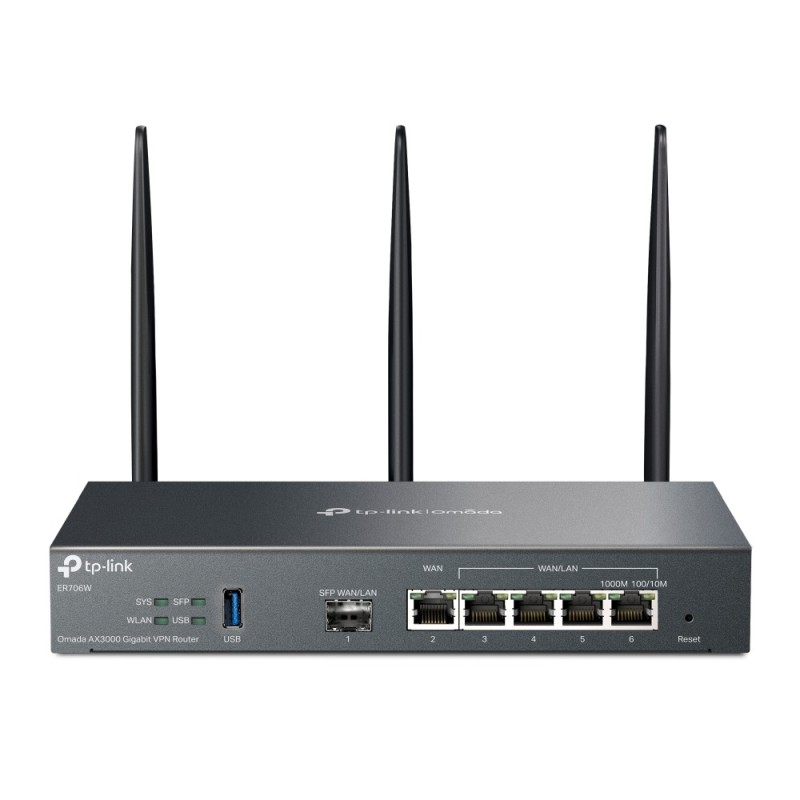

ER706W

Flexible Wi-Fi Coverage through Business Wired Connectivity
Omada AX3000 Gigabit VPN Router

Ubiquitous Connectivity Starts with WiFi 6
ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more.‡ Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps. Bufferless network experience is at your fingertips.

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband
Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.

Professional Hardware Empowers the Wireless Future
The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.

Self-Organizing Network with Omada Access Points
ER706W is able to seamlessly connect to Omada access points that support mesh technology, ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.

Omada SDN—The Smarter Cloud Solution for Business Networking
The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.

Easy Management with the Omada App
Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.

Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.

TP-Link Omada ER706W. WAN connection type: SFP. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 3000 Mbit/s, WLAN data transfer rate (first band): 574 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA3-Enterprise. Routing protocols: OSPF, RIP

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	SFP
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	3000 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN tunnels quantity	50
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack	Yes
Web-based management	Yes
Reset button	Yes
MU-MIMO technology	Yes
MIMO	Yes
Security algorithms	WPA, WPA2, WPA3-Enterprise
Guest access	Yes
Access Control List (ACL)	Yes
Schedule access	Yes
Filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	OSPF, RIP
Product type	Desktop/pole router
Product color	Black
Wall mountable	Yes
LED indicators	System, USB, WAN, WLAN
Certification	CE, FCC, RoHS
AC adapter included	Yes
Manual	Yes
Antenna design	External
Antenna gain level (max)	4.5 dBi
Antennas quantity	3
Internal memory	512 MB
Internal memory type	DDR4
Flash memory	128 MB
Power source type	DC
Output voltage	12 V
Output current	2 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	8.9" (226 mm)
Depth	5.16" (131 mm)
Height	1.38" (35 mm)
