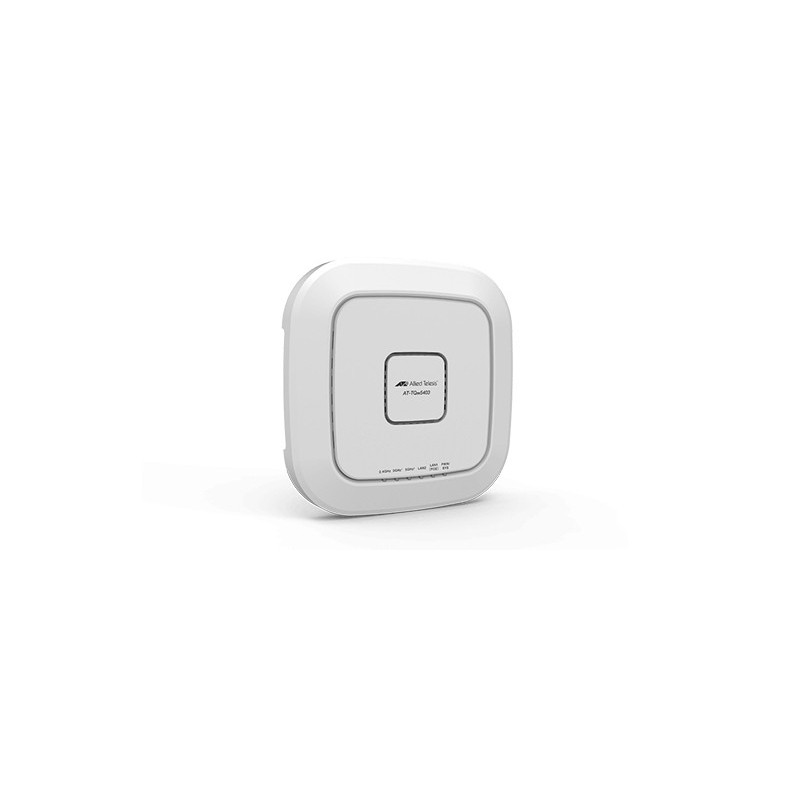

AT-TQM5403-00

3-radio 802.11ac Wave 2 Wireless Access Point
The Allied Telesis Enterprise-class TQm5403 is a three-radio wireless LAN access point that supports IEEE802.11ac Wave 2, and is ideal for small to medium enterprise networks, providing a high-value and easily deployed wireless solution.

Capable of up to 2133Mbps raw wireless throughput from its single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, the TQm5403 supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput for a better user experience.

The TQm5403 can operate in standalone mode, using its intuitive web-based user interface. For medium scale installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance—all with no user intervention.

Overview
The Allied Telesis TQm5403 is a three-radio wireless LAN access point that supports IEEE802.11ac Wave 2, and is ideal for small to medium enterprise networks, providing a high-value and easily deployed wireless solution.

The TQm5403 has a single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide superior wireless connectivity.

The TQm5403 can operate in standalone mode, using its intuitive web-based user interface. For medium scale installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance—all with no user intervention. The Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 100 APs.

Flexible deployment options enable easy installation, with the TQm5403 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.

Allied Telesis AT-TQm5403-00. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2133 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, TKIP, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 20 W

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2133 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Fast roaming	Yes
Flow control support	Yes
Security algorithms	64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, TKIP, WPA, WPA2
MAC address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
DHCP client	Yes
Firmware upgradeable	Yes
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	47-63 Hz
Output voltage	12 V
Output current	2 A
Power consumption (typical)	10 W
Power consumption (max)	20 W
Placement	Wall
Product color	White
Antenna type	Internal
Antenna gain level (max)	4.2 dBi
Certification	FCC, CE, RCM, IMDA, KC, MIC, BSMI/NCC, OFCA, SIRIM
Width	8.46" (215 mm)
Depth	8.46" (215 mm)
Height	1.89" (48 mm)
Weight	24.7 oz (700 g)
Quantity per pack	1 pc(s)
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Harmonized System (HS) code	85176990
