C9130AXE-E-RF
  • C9130AXE-E-RF

C9130AXE-E-RF

Cisco

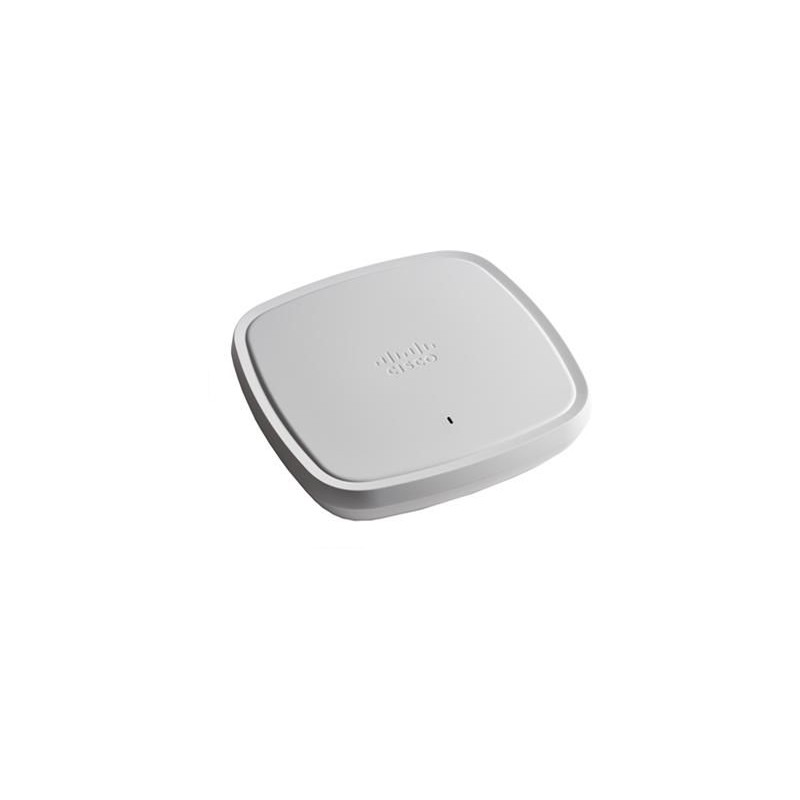

Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas
CHF2,123.7
Tax included
CHF1,964.6 Tax excluded
Delivery in several days
Quantity
Will be ordered for you

Description
With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. Increasing numbers of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. Cisco Catalyst 9130 Series Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the 9130 Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst 9130 Series scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130 Series is also a leader in performance, security, and analytics.

The Cisco Catalyst 9130 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

Specifications

Antenna

Antenna direction typeOmni-directional
Antenna typeInternal & external

Design

PlacementCeiling/Pole/Table/Wall
Product colourGrey

Features

2.4 GHzYes
5 GHzYes
Cyclic Shift Diversity (CSD)Yes
Dynamic Frequency Selection (DFS)Yes
Ethernet LAN data rates100/1000/2500/5000 Mbit/s
Frequency band2.4/5 GHz
Maximal-Ratio Combining (MRC)Yes
MIMOYes
MIMO typeMulti User MIMO
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at

Operational conditions

Non-operating altitude0 - 4600 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-30 - 70 °C

Packaging content

Quantity per pack1 pc(s)

Performance

Flash memory1024 MB
Internal memory2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1

Power

Power over Ethernet (PoE)Yes

Security

Security algorithmsAES/WPA2/WPA3

Vendor information

Brand NameCisco
Warranty1
Product Details
2026-01-13
New

Data sheet

Flash memory
1024 MB
2.4 GHz
Yes
5 GHz
Yes
Placement
Ceiling/Pole/Table/Wall
MIMO
Yes
MIMO type
Multi User MIMO
Dynamic Frequency Selection (DFS)
Yes
Ethernet-LAN-Datenraten
100/1000/2500/5000 Mbit/s
Netzwerkstandards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at
Stromversorgung über Ethernet (PoE)
Yes
Ethernet-LAN-Anschlüsse (RJ-45)
1
Antennenrichtungstyp
Omni-directional
Anzahl der USB 2.0-Anschlüsse
1
Antenna type
Internal & external
Frequenzband
2.4/5 GHz
Sicherheitsalgorithmen
AES/WPA2/WPA3
Betriebshöhe
0 - 3000 m
Nichtbetriebshöhe
0 - 4600 m
Brand Name
Cisco
Warranty
1
Betriebstemperatur (TT)
-20 - 50 °C
Lagertemperatur (TT)
-30 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 90 %
Menge pro Packung
1 Stück(e)
Interner Speicher
2048 MB
Produktfarbe
Grey
Cyclic Shift Diversity (CSD)
Yes
Maximal-Ratio-Combining (MRC)
Yes

Specific References

MPN
C9130AXE-E-RF
